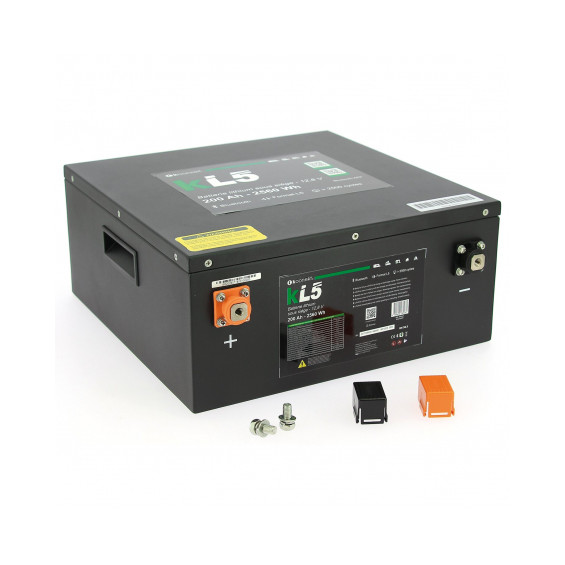

Koonekt KL5 200Ah under-seat heated LiFePO4 lithium battery: 2560Wh of discreet power for your van in all seasons

Slipped under the driver or passenger seat of your van, it takes up no space in your living area yet provides 2560Wh of usable energy — enough to run your refrigerator for several days, power a heater, charge laptops and keep the lighting on without any mains connection. The Koonekt KL5 200Ah under-seat heated LiFePO4 lithium battery (ref. 496367) is the first variant of the KL5 range to integrate a heating film that allows it to charge from as low as -30°C — a decisive advantage for vanlifers who travel in the mountains or winter in cold conditions. Without this system, a standard lithium battery refuses to charge below 0°C and gets damaged.

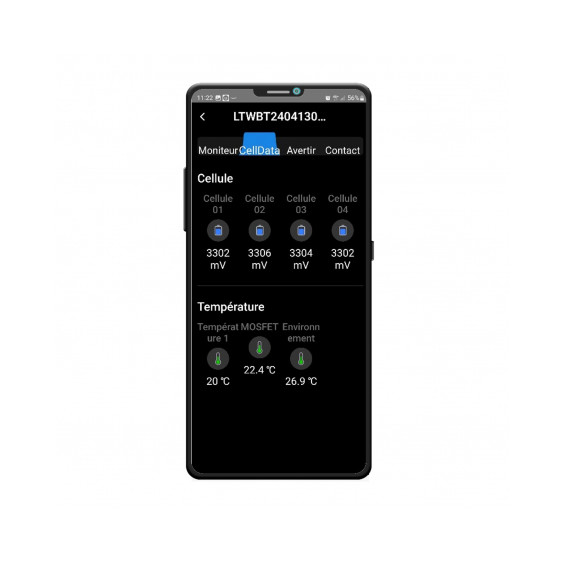

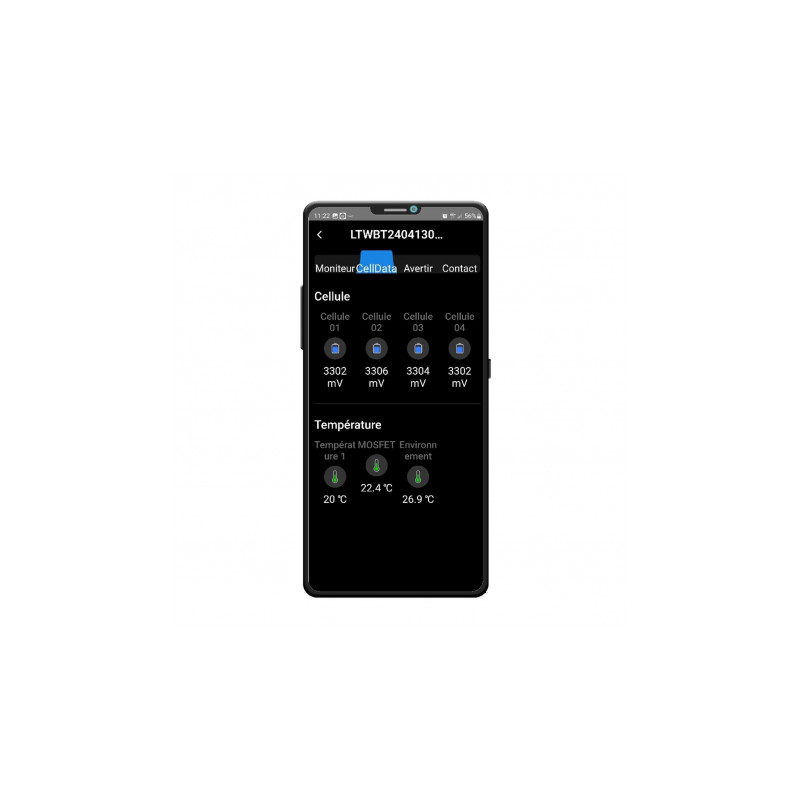

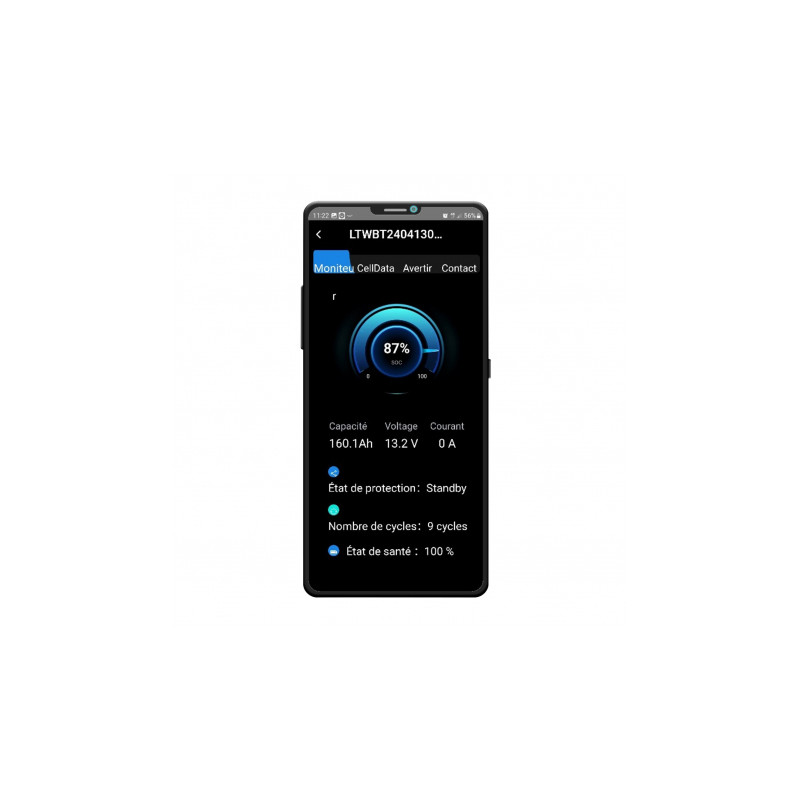

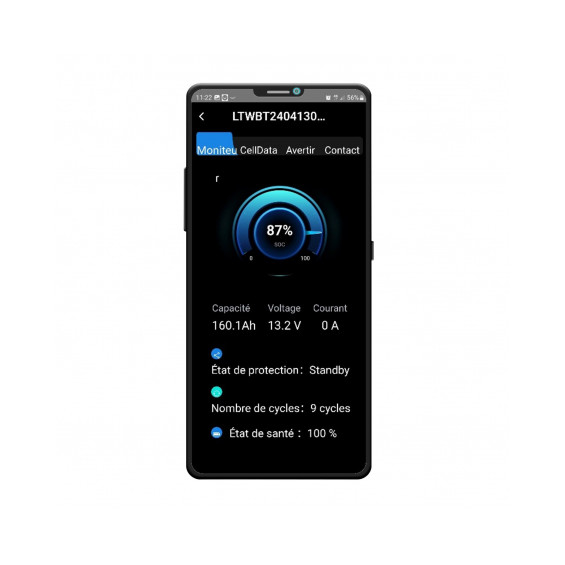

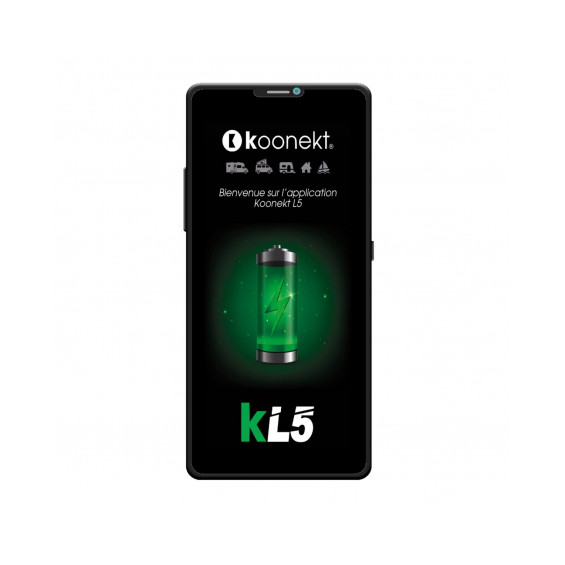

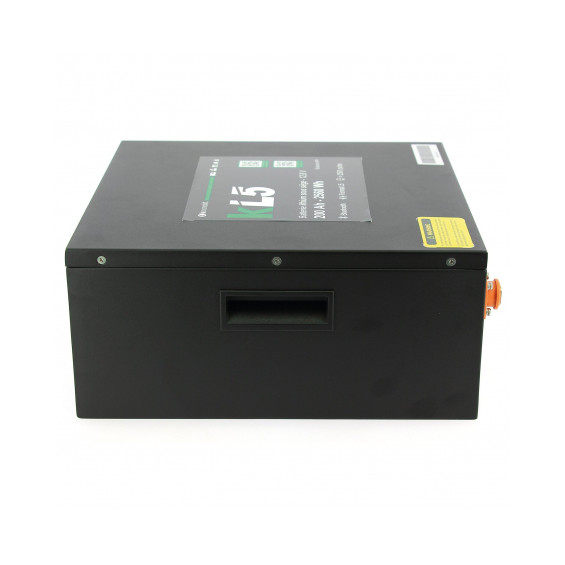

Its LiFePO4 (lithium iron phosphate) technology gives it more than 2000 charge/discharge cycles, approximately 5 to 7 years of intensive use — compared to 800 to 1100 cycles for an equivalent gel battery. It is up to 2 times lighter than a lead-acid model of the same capacity (23 kg versus approximately 60 kg), which significantly reduces the GVW of your converted vehicle. Its robust black metal casing protects the prismatic cells in demanding environments. The Bluetooth connection and the Koonekt KL5 app give you real-time access to remaining capacity, voltage, charge and discharge current, number of cycles and the state of health of your battery. For installations requiring even more autonomy, it can be connected in parallel up to 4 units. Pair it with an EZA pure sine wave inverter to power your 230V appliances from this energy reserve.

How to install the Koonekt KL5 200Ah under-seat lithium battery?

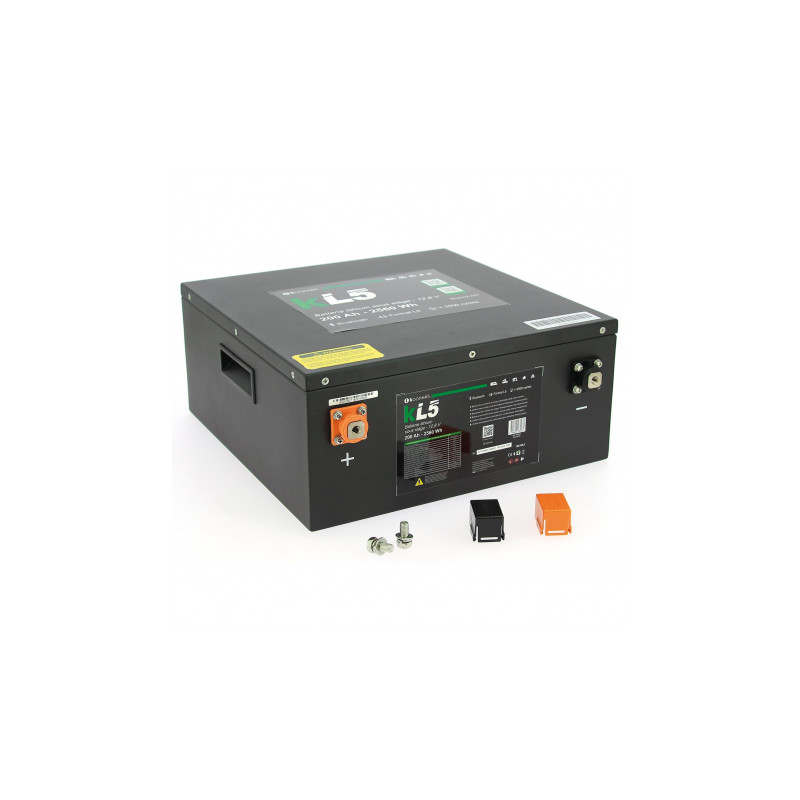

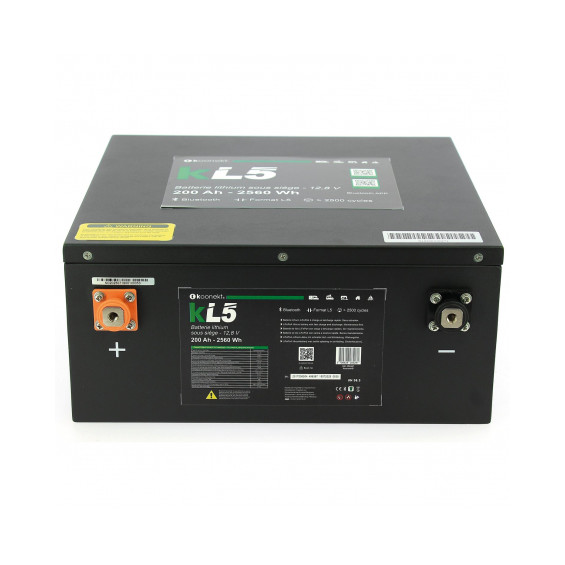

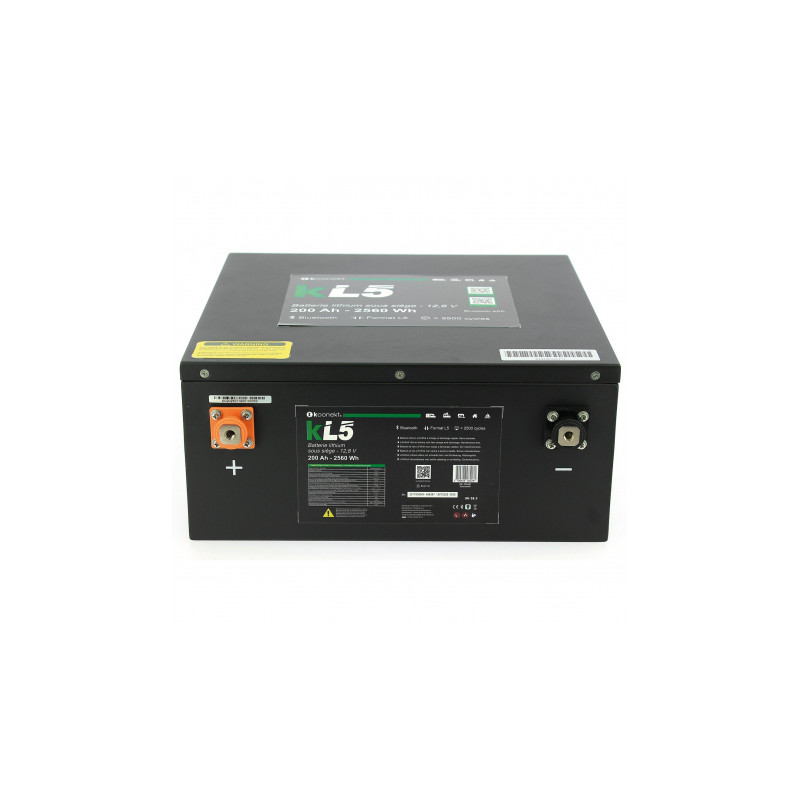

The battery slides under the driver or passenger seat thanks to its flat format (342 × 375 × 152 mm). It can be installed upright or lying flat and is secured via the fixing points on the metal casing. Connect the supplied M8 terminals to your 12V distribution board. If you connect it to other batteries, make sure to only pair batteries of the same reference, same capacity and same state of charge. A BMS (Battery Management System) is integrated to protect the cells from overcharging, deep discharge and over-temperature. Installation by a professional is recommended for complex installations.

Technical specifications of the Koonekt KL5 200Ah lithium battery

• Brand: Koonekt
• Reference: 496367 (SKU 9.317)
• Cell technology: LiFePO4 Prismatic
• Capacity: 200Ah / 2560Wh
• Nominal voltage: 12.8V
• End-of-charge voltage: 14.6V
• Discharge cut-off voltage: 9.6V ~ 11V
• Self-discharge at rest: <15% / year
• Maximum continuous discharge current: 150A / 1800W
• Maximum peak discharge current: 450A / 5400W
• Maximum recommended charge current: 150A / 1800W
• Operating temperature during discharge: -20°C / +55°C
• Operating temperature during charging: -30°C / +50°C (integrated heating film)
• Integrated heating film: Yes — charging possible from -30°C
• Integrated BMS: Yes
• Bluetooth / App: Koonekt KL5 (iOS and Android)
• Parallel connection: 4 units maximum
• Series connection: 4 units maximum
• Permitted position: Upright / Lying flat
• Format: Under-seat
• Casing: Black metal
• Terminal type: M8
• Number of cycles:> 2000 cycles
• Dimensions (L × W × H): 342 × 375 × 152 mm
• Net weight: 23 kg
• Warranty: 24 months

Which Koonekt KL5 lithium battery should you choose for your van?

The KL5 range comes in 4 capacities across 2 formats. The 100Ah and 150Ah models adopt the compact L5 format (automotive standard), ideal for technical compartments and side storage areas. The 200Ah and 300Ah models are in under-seat format, designed to integrate discreetly under the driver or passenger seat.
