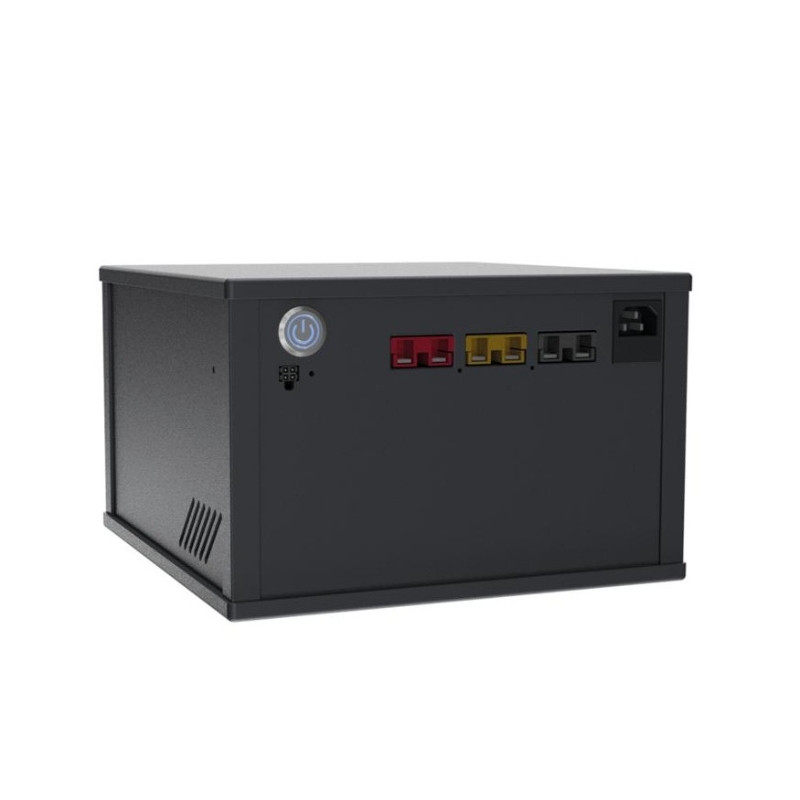

Discover total electrical freedom with the E-Box-Lite, your versatile auxiliary battery for vans

Setting up your electrical circuit can quickly become a complicated technical challenge: which components to choose? How to make sure you don't make any wrong connections? Etc… The E-Box-Lite from Ace Energy solves this problem by centralising all energy intelligence in a compact, ready-to-use unit.

This portable power station is the ideal solution for those seeking the versatility of the S100-Box - Van energy system with the decisive advantage of an integrated mains charger. Thanks to its LiFePO4 Lithium technology, this smart generator offers you lasting autonomy to power your cool boxes, lighting and electronic devices without complex installation.

Its robust design guarantees optimal protection for your equipment while simplifying your daily life: you plug in, you go, and you keep total control of your consumption via an intuitive mobile app. Whether you're on a wild road trip or connected to a campsite hook-up, this system adapts to all your needs with professional efficiency.

Here is the verification and update of your product sheet based exclusively on the technical specifications extracted from the official Ace Energy document.

The E-Box-Lite is a standard all-in-one system with triple charging (engine, solar, mains), compatible with standard battery terminals and solar inputs via suitable connectors.

The little extra that changes everything? This portable power station is designed and assembled in France!

Technical specifications of the e-box-lite

• Battery type : Lithium Iron Phosphate (LiFePO4)
• Nominal capacity : 100 Ah (12.8 V)
• Lifespan : < 6000 cycles at 50% depth of discharge
• DC-DC charger : 25 A with automatic D+ detection
• Solar charger : MPPT 25 A (Max power 350 W)
• AC-DC charger : 20 A (mains recharge)
• Body material : High-density polyethylene (HDPE)
• Dimensions (LxWxH) : 28 x 26.5 x 17 cm
• Weight : 12.5 kg
• Communication : Bluetooth Smart (iOS & Android)
• Compatibility : DC/AC inverters up to 1200 W (sold separately)
• Certifications : Battery pack E57 / R10
• Origin : Designed and assembled in France

Accessory compatibility : This device can be paired with 12V female outputs and supports large-diameter cable protection conduits for a clean installation in the seat chassis.
