Flush-mount Anderson 50A socket: the reliable 12V connection for your conversion

Looking for a clean and secure solution for your high-power electrical connections in your van? Forget bulky sockets or trailing cables. This flush-mount Anderson 50A connector is designed to integrate perfectly into your conversion. It provides a fixed, discreet and robust connection point, ideal for connecting a solar panel, a portable battery or powering energy-hungry appliances (such as an inverter or compressor fridge).

Its 50A capacity guarantees safe current flow for your 12V or 24V equipment. For optimal installation, don't forget to use H07-VK electrical cable with a nominal cross-section of 2.5 mm² to 16 mm². This socket housing is the ideal solution for centralising your power inputs or outputs in a reliable and aesthetically pleasing way.

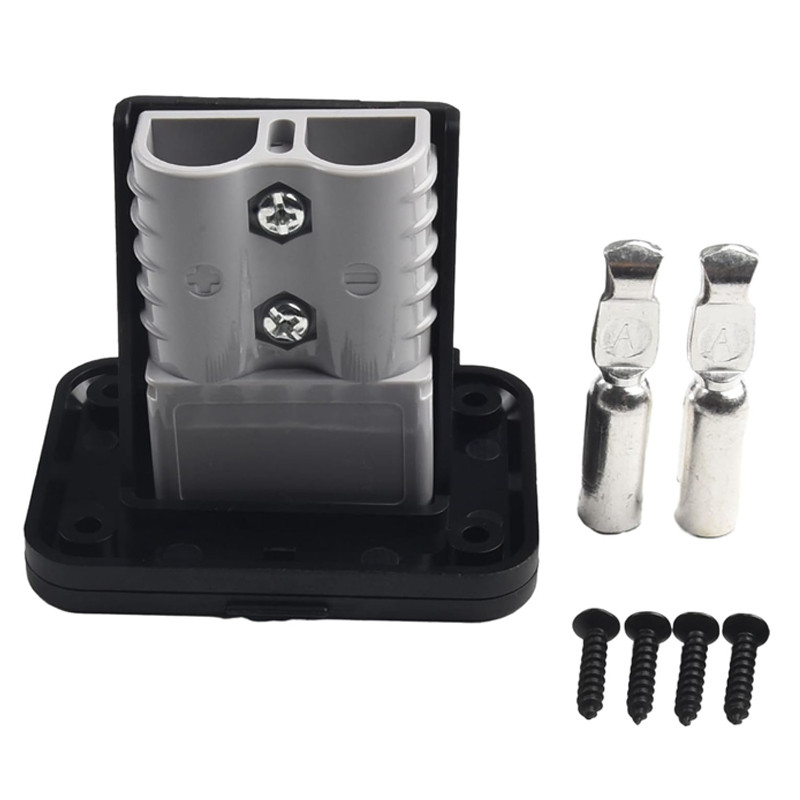

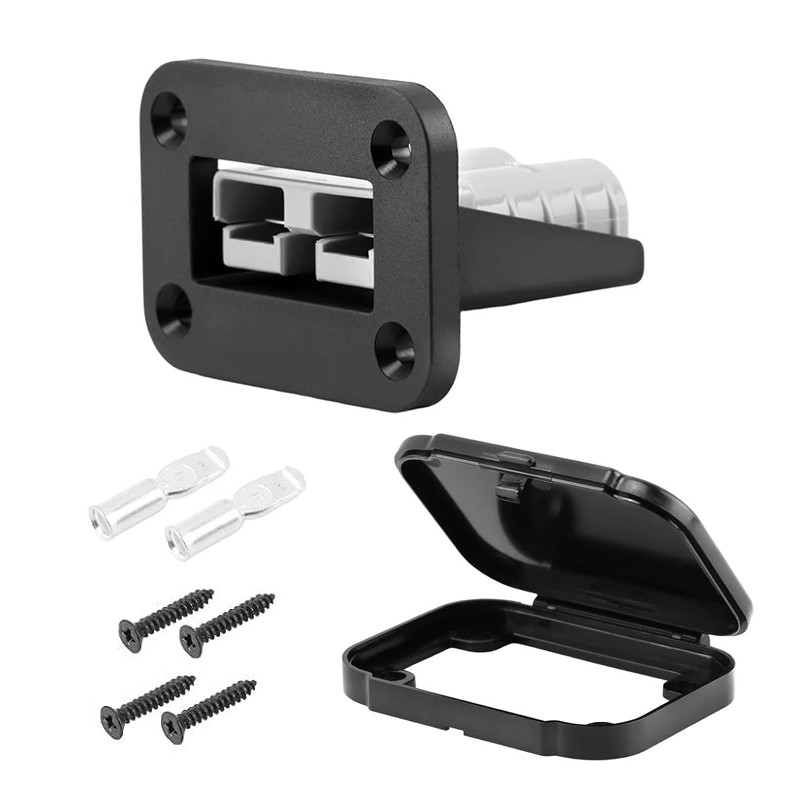

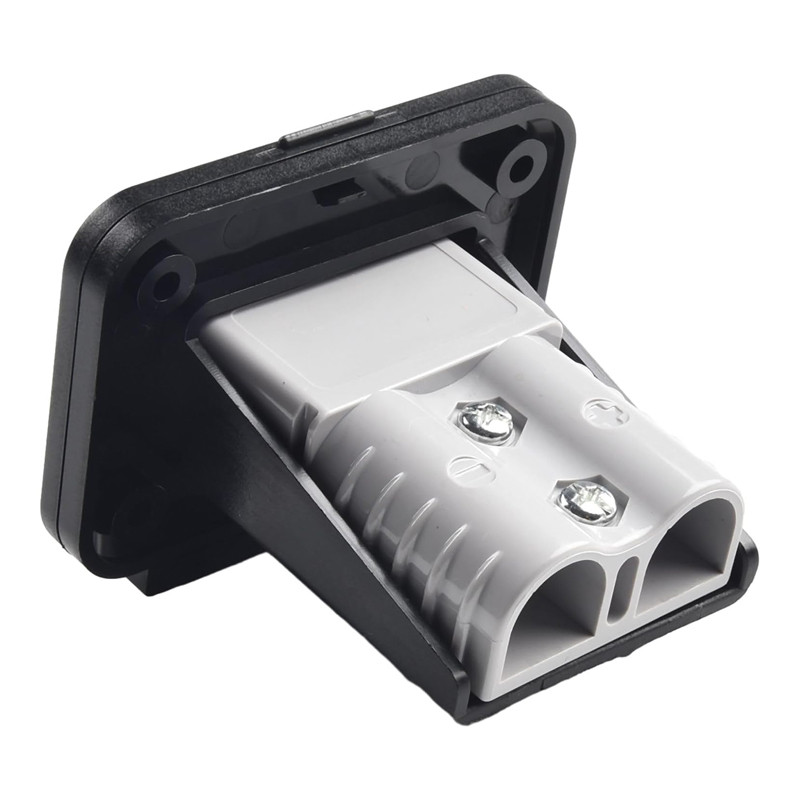

Technical specifications of the flush-mount Anderson 50A socket

• Connector type: Flush-mount socket housing (sold separately)
• Compatibility: Grey Anderson connectors (or similar) type SB50
• Maximum current capacity: 50A
• Voltage (indicative): Suitable for 12V / 24V systems (supports up to 600V)
• Mounting: Flush-mount
• Terminals (contacts): 2 x 50A terminals included (to be crimped onto your cables)
• Housing material: High-resistance plastic (PC)
• Colour: Grey
• Compatible nominal cable cross-section: Nominal cross-section from 2.5 mm² to 16 mm²
