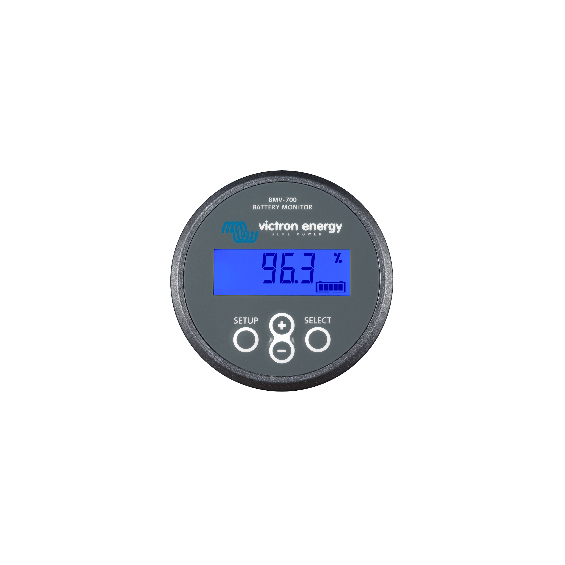

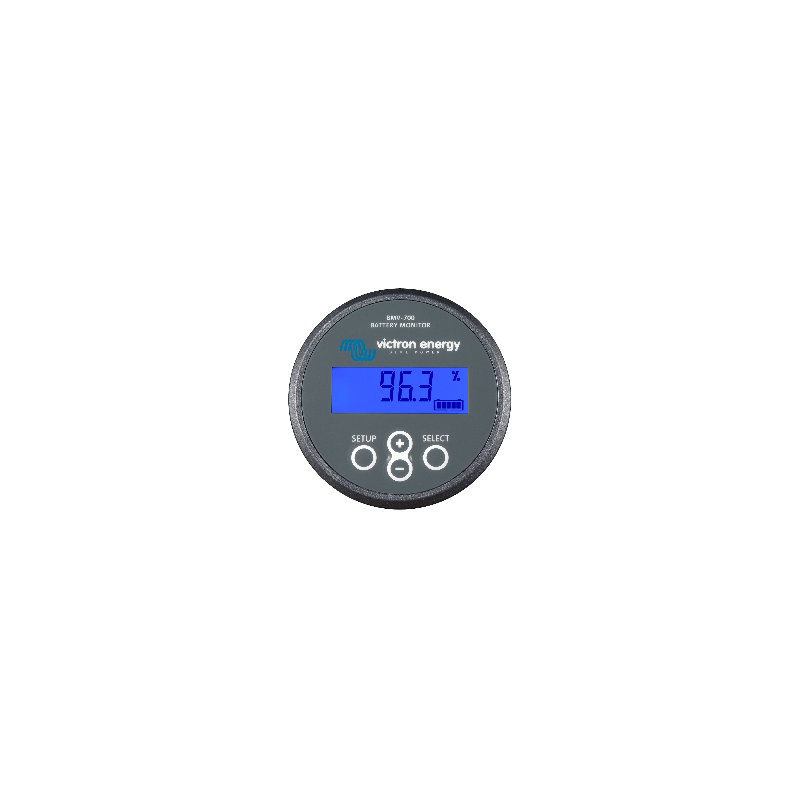

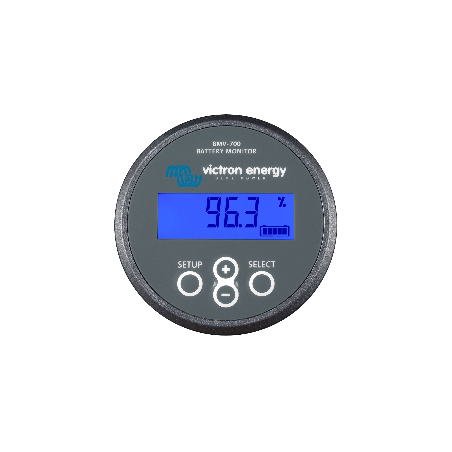

END OF SERIES - Battery monitor VICTRON ENERGY BMV-700

Because no one should ever have to run out of electricity, Victron has developed this top-of-the-range monitor to check your power consumption and battery charge level.

Quick and easy to install, the Victron BMV-700 battery monitor measures the electrical input and output of your battery's alternator with flawless accuracy. It then assesses the percentage of battery remaining, based on the ampere-hour consumption of your battery.

Using this calculation mode, you'll find a host of other statistics: input voltage, instantaneous consumption, charging power, remaining charging time, etc.

Supplied in a kit with cable and shunt.

To be able to read the data on a smartphone or tablet, think of the Smart Dongle, the Bluetooth adapter from Victron Energy!

Technical specifications:

• Power supply voltage range: 6.5 - 95V
• Battery capacity (Ah): 1 - 9999 Ah
• Operating temperature range: -40°C to +50°C
• Temperature measurement range: -20°C to +50°C
• Communication port VE.Direct: Yes
• Relay: 60V/1A
• Front frame: 69 x 69 mm (2.7 x 2.7 inches)
• Shunt connections: M10

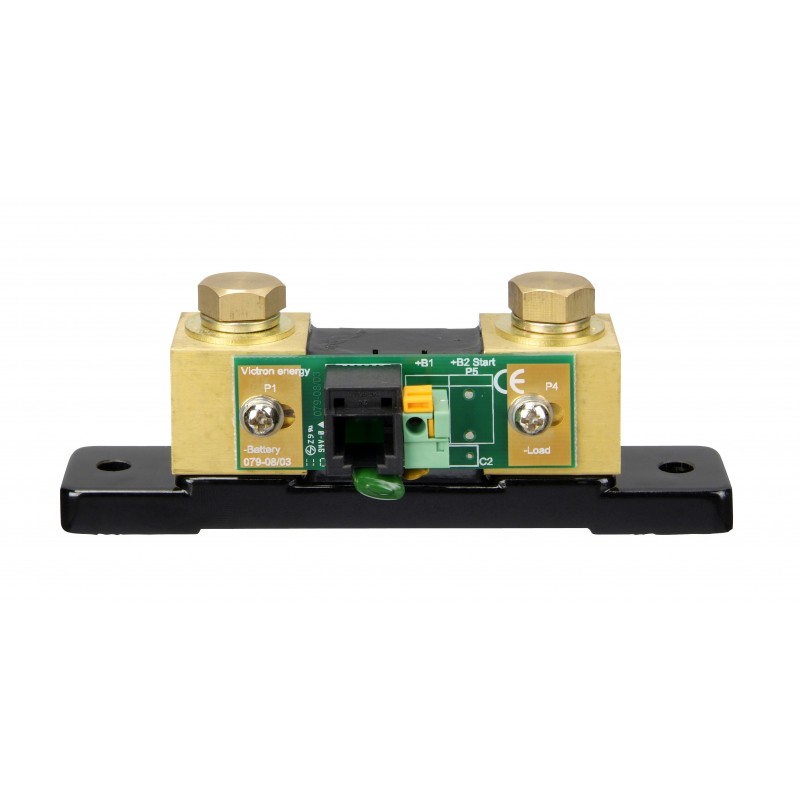

• Shunt supplied: 500A / 50 mV
• Connection cable supplied: 10m long
• Power cable supplied
