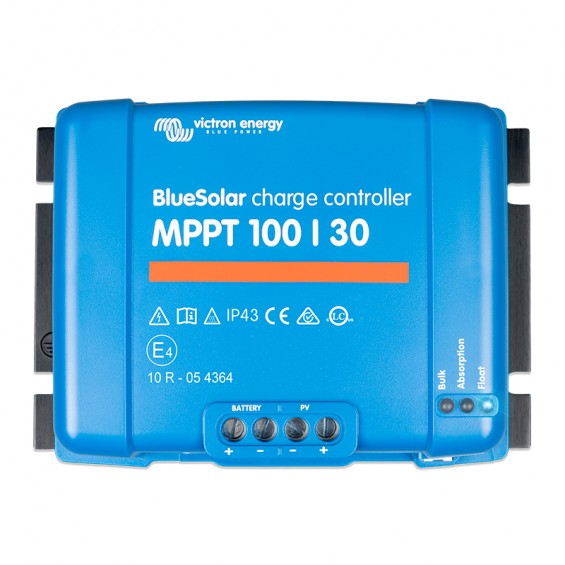

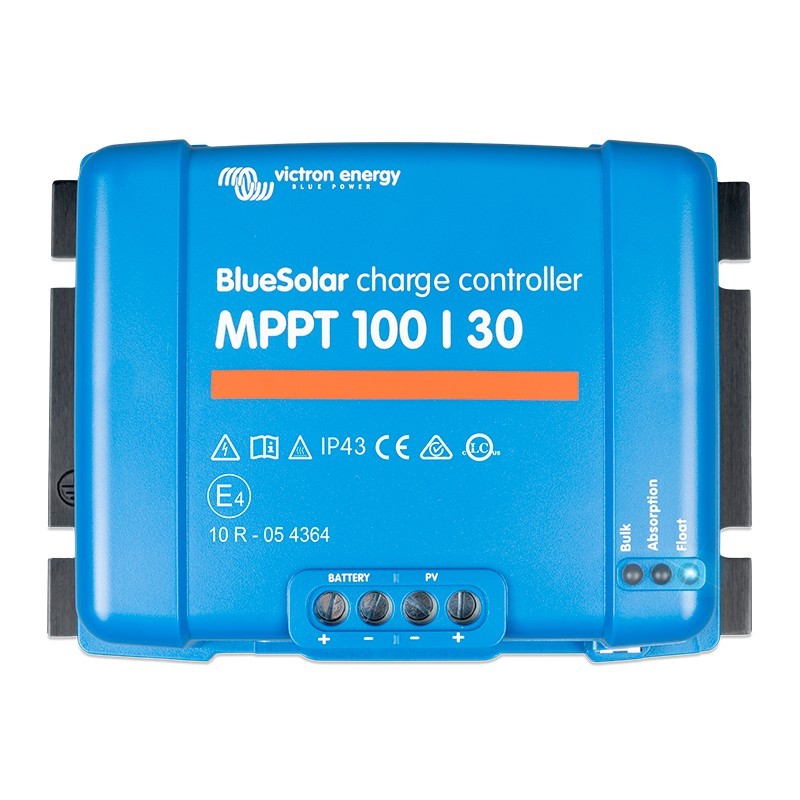

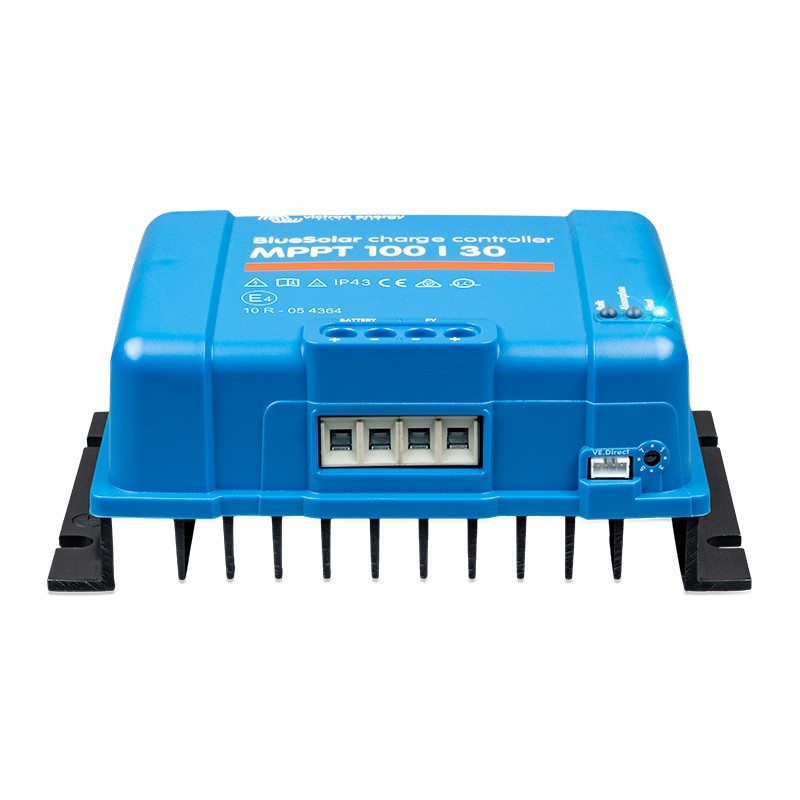

MPPT 100/30 Charge Controller VICTRON ENERGY BlueSolar
MPPT 100/30 Charge Controller VICTRON ENERGY BlueSolar
5.128
€107.10 Inc. VAT
MPPT Blue Solar 100-30 charge controller from Victron Energy. Allows you to recharge your batteries using solar panels!
Description
Choose robustness and reliability with this high-end MPPT controller!
Essential for transforming solar energy from your photovoltaic panels into usable energy for your batteries, the BlueSolar charge controller is responsible for storing the electricity production from your solar panels to redistribute it to your batteries at the appropriate time.
But that's not all! MPPT (Maximum Power Point Tracking) technology has been developed to extract the best possible yield from your solar panels, in sunny weather as well as in cloudy conditions. To do this, the controller locates the best voltage points of the panel for optimal solar energy recovery (+15 to 40% compared to previous innovations!).
Equipped with the BatteryLife function, the BlueSolar controller will also contribute to preserving your battery. On the one hand by trying to keep it constantly charged at 100%, and on the other hand by increasing the disconnection voltage if the electricity production is insufficient.
This 30A version can receive up to 440W at 12V and up to 880W at 24V!
Use the VE.Direct Bluetooth® Smart Dongle connector to view your statistics on tablet or mobile.
Technical specifications
- Battery voltage: 12V / 24V
- Nominal charge current: 30A
- Continuous charge current: 15A
- Nominal PV power 12V: 440W
- Nominal PV power 24V: 880W
- Automatic load disconnection: Yes
- Maximum open circuit PV voltage: 100V
- “Absorption” charge voltage: 14.4V / 28.8V
- “Float” charge voltage: 13.8V / 27.6V
- Operating temperature: -30°C to +60°C
- Power terminals: 16mm² / AWG6
- IP43 rating (electronic components)
- IP22 rating (connection area)
- Dimensions: 130 x 186 x 70 mm
- Weight: 1.3 kg
- 5-year warranty
