Control panel for electrical installation in converted van

Specifically designed to manage your electrical circuits but also to protect you inside your converted vehicle!

It is essential equipment that has several functions. Indeed, it centralises, controls, distributes and secures your entire electrical installation.

Which control panel with switches to choose?

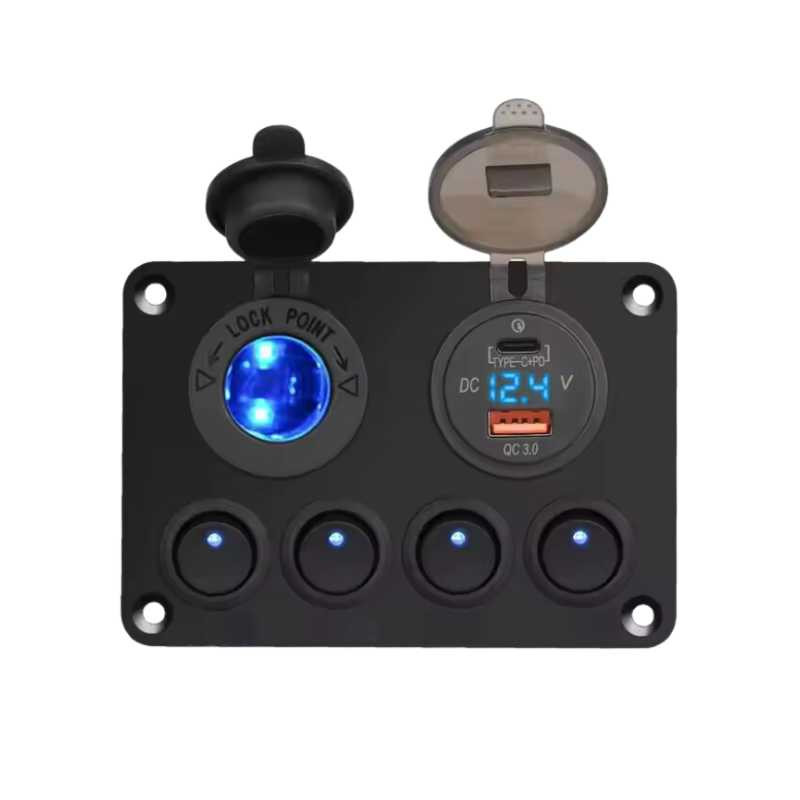

This electrical panel is orientated horizontally and has 4 or 5 illuminated rocker switches. It's up to you to choose the electrical panel best suited to your electrical diagram.

Each on/off switch is associated with a different electrical circuit and allows you to power your equipment (LED spotlight, LED bar, water pump, refrigerator, etc.). The rocker switches on the electrical panel become illuminated when the circuits are powered. This allows you to quickly see which circuits are on.

It's easy to understand: the more equipment you have to power, the more electrical circuits you have, the more switches you need on an electrical panel!

The control panel also features a:

• cigarette lighter socket
• USB-C socket + voltmeter + USB Quick Charge 3.0

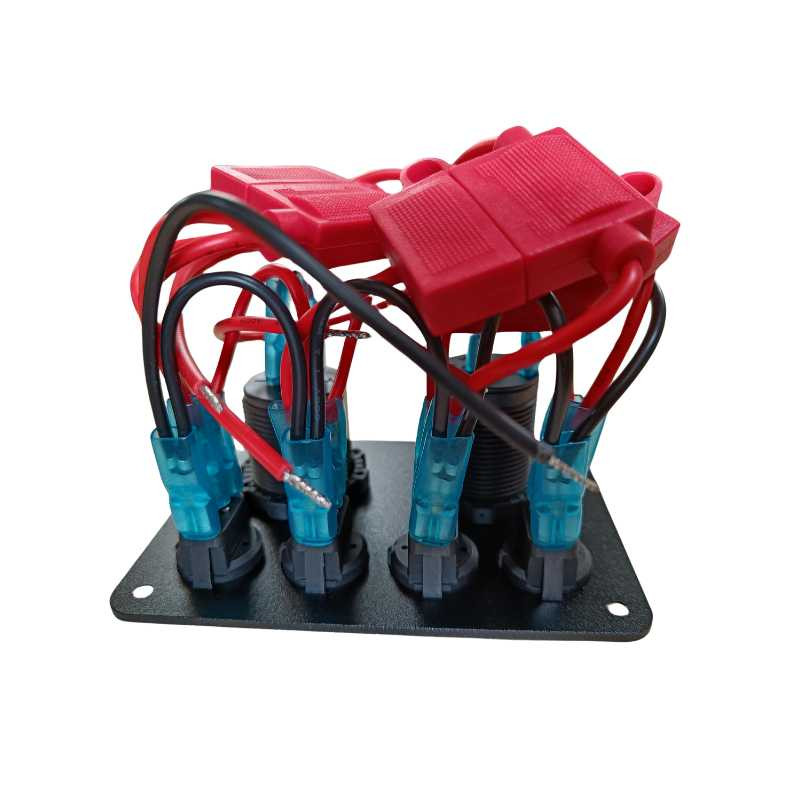

Whichever electrical panel you choose (with 4 or 5 switches), it is pre-wired and includes a 15A fuse per circuit. Each ATC/ATO type automotive blade fuse specifically protects an electrical circuit in case of malfunction.

Discover our range of H07 VK flexible multi-strand electrical cable with nominal cross-section in mm² of your choice.

The strong point of the 5-switch electrical panel that makes the difference!

If you choose the control panel with 5 switches, you will benefit from a special switch on the bottom line on the far right (see image) which only turns off the blue light on the bottom part of the panel.

Indeed, this switch allows you to turn off the light on the cigarette lighter socket as well as the USB-C socket + voltmeter + USB Quick Charge 3.0 to allow you to rest or sleep in complete darkness!

No more being bothered by the brightness of your electrical panel on board your converted van thanks to this “magic” switch. And that's appreciable! At Heode, it is part of our principles to offer products combining practicality and comfort to meet your most specific needs at any time of day!

Technical specifications of electrical control panels

Horizontal electrical panel with 4 switches:

• Panel dimensions: 115 x 80 mm
• Number of switches: 4
• Number of circuits to connect: 4
• Maximum electrical current intensity per circuit: 10A
• 1 cigarette lighter socket
• 1 USB-C socket + voltmeter + USB Quick Charge 3.0
• Automotive blade fuses ATC/ATO type included: 4 x 15A

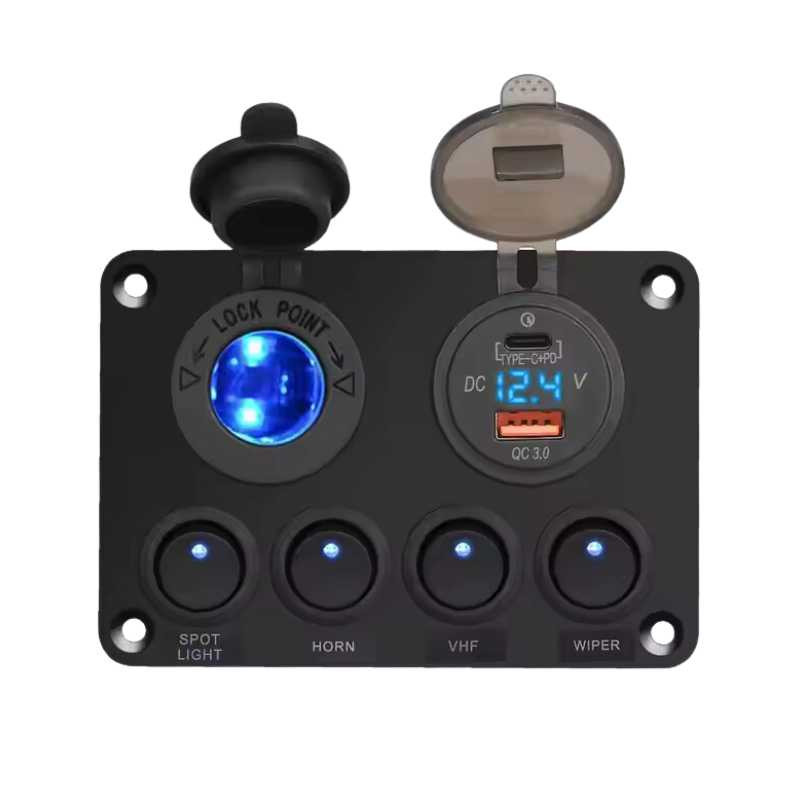

• 1 self-adhesive sheet of stickers with inscriptions in English
• 4 fixing screws included

Horizontal electrical panel with 5 switches:

• Panel dimensions: 150 x 105 mm
• Number of switches: 5
• Number of circuits to connect: 5
• Maximum electrical current intensity per circuit: 10A
• 1 cigarette lighter socket
• 1 USB-C socket + voltmeter + USB Quick Charge 3.0
• 1 special switch to turn off the blue light on the bottom part of the panel so you can fall asleep peacefully
• Automotive blade fuses ATC/ATO type included: 6 x 15A
• 1 self-adhesive sheet of stickers with inscriptions in English
• 4 fixing screws included
