ELMO® connector with a choice of inputs - WÜRTH

Which connector should I choose for an electrical installation in a converted van?

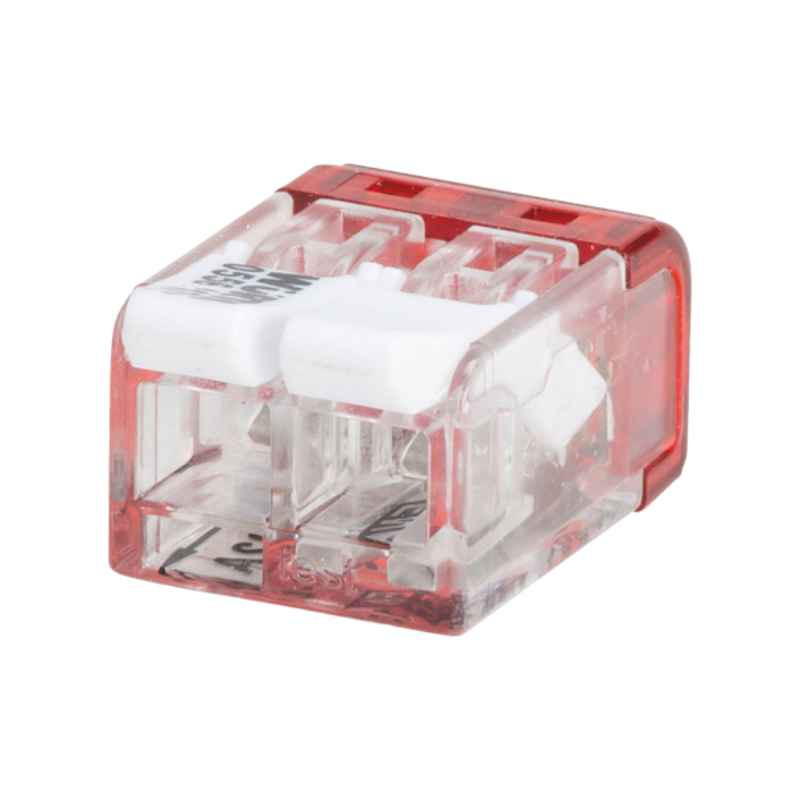

Würth ELMO® connectors make it easy to connect several flexible H07-VK multi-strand cables up to a nominal cross-section of 4mm² to power an electrical appliance. This 2 or 3-way connector has been designed to accommodate nominal cable cross-sections ranging from 0.2 to 4 mm² within an electrical installation.

It's an essential piece of equipment that guarantees safe, fast and reliable connection of several H07-VK cables in your van electrical installation. Electrical connectors optimise the safety of electrical systems.

What are connectors used for?

An ELMO® connector makes it possible to connect several electrical cables safely and without tools. Whether it's to power a contactor tap, an LED spotlight, an LED bar or any other electrical appliance, it provides reliable electricity distribution.

How do I install an electrical connector?

To install your electrical connector easily:

Step 1: Cleanly strip your H07-VK flexible multi-strand cables to a minimum length of 11 mm.

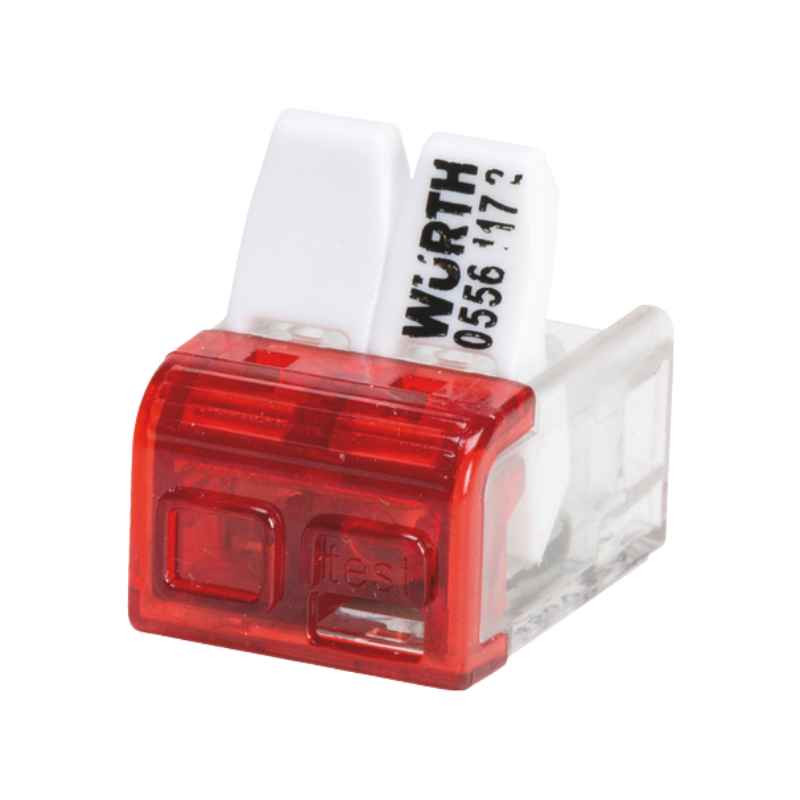

Step 2: Once your cables are stripped, lift the connector's levers, then insert them into the appropriate slots on the connector as far as they will go to ensure optimum connection to the relevant part.

Step 3: Once your cables are correctly inserted, lower the connector levers.

Your H07-VK electrical cables will be connected!

What are the advantages of a connector for connecting electrical cables?

Quick installation: No tools required. All the more practical in tight spaces such as in an electrical installation in a converted van.

Optimum safety: Thanks to its screwless system, this connector avoids the risk of incorrect tightening and therefore of a short-circuit.

Guaranteed reliability: The connector's internal mechanism ensures a solid connection and is completely insensitive to vibration.

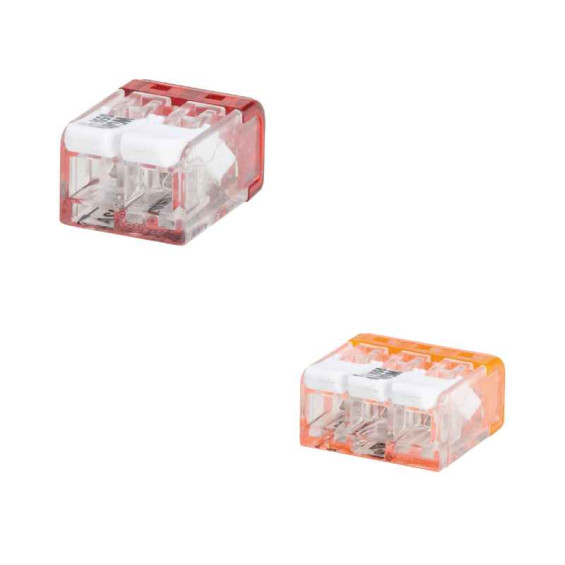

Modularity: Available with 2 or 3 inputs to suit your needs within your electrical system.

Technical characteristics of the connector

• Number of connector inputs: 2 or 3 (depending on your requirements).
• Compatibility: H07-VK flexible multi-strand electrical cable with nominal cross-section 1.5mm²; 2.5mm² or 4mm².
