Travel with peace of mind: the 230V electrical protection your van deserves.

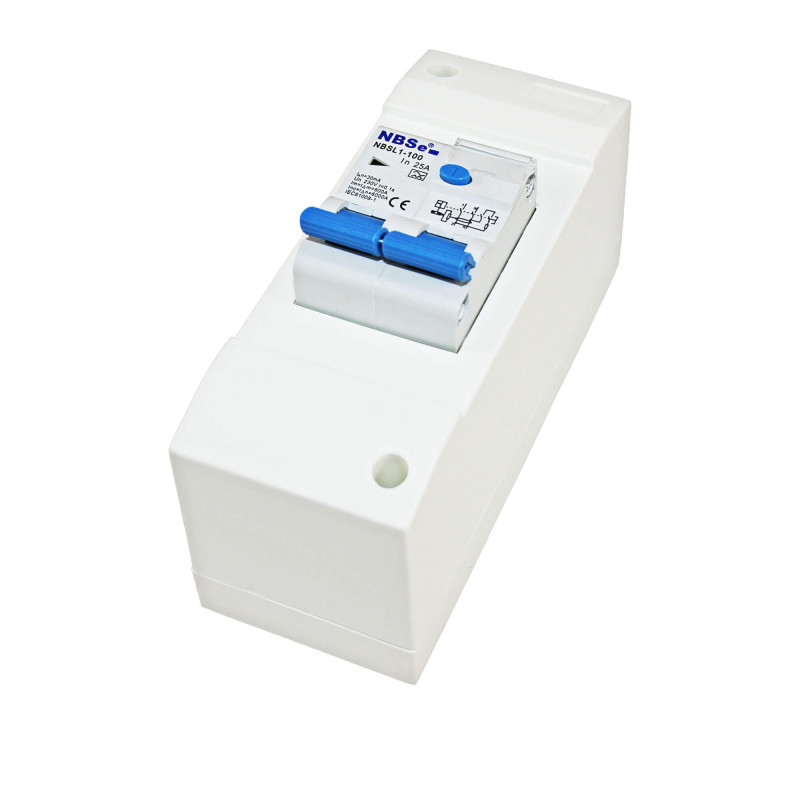

This Haba BV electrical protection unit is an essential technical solution for securing your entire 230V circuit in a converted van. Designed to be both compact and efficient, it combines two essential safety mechanisms in a single ready-to-install housing.

The first is a type AC bipolar residual current device, whose high sensitivity of 30mA ensures vital protection for people by cutting the power at the slightest leakage, thus preventing any risk of electrocution. The second is a 25A circuit breaker, which protects your installation and appliances against overloads and short circuits.

This equipment is the mandatory starting point for any reliable installation, positioned just after your external male P17 connection socket. It guarantees the compliance and safety of your electrical network, offering you robust and centralised protection.

Technical specifications of the 30 mA residual current device unit

• Nominal voltage: 230V AC
• Type of protection: Residual current device + circuit breaker
• RCD sensitivity: 30 mA (personal protection)
• Circuit breaker rating: 25 A (equipment protection)
• RCD type: AC
• Installation: Bipolar
• Colour: White
• Dimensions (LxWxH): 53 x 130 x 80 mm
• Weight: 350 g
• Recommended cable: 1.5 mm²
• Compliance: CE standard
