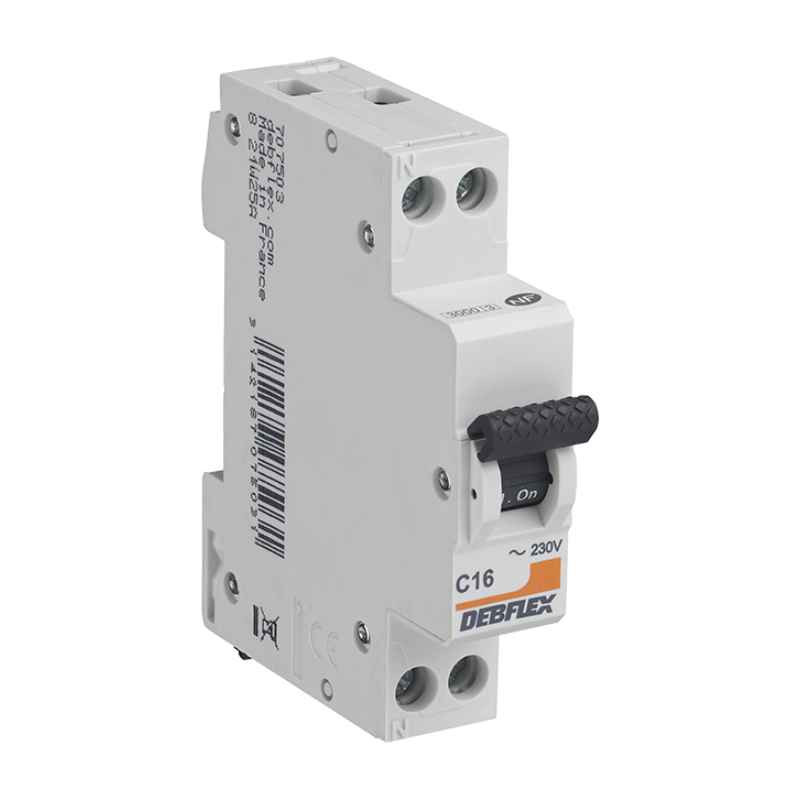

16A circuit breaker for 230V electrical circuit in converted vehicle

A necessary device for an electrical circuit connected to 230V domestic current, the 16A circuit breaker protects it from overloads or short circuits. It also guarantees the protection of your property.

In the event of overvoltage, this circuit breaker automatically cuts the power supply to prevent any damage to electrical equipment and risk of fire. This 16A Phase+Neutral model is ideal for a 230V socket within your living space in a converted van.

How the 16A circuit breaker works

A circuit breaker works by monitoring the amount of current flowing through a circuit. If this amount exceeds a safe threshold (usually caused by an overload or short circuit), it automatically cuts the electrical supply to prevent damage to connected appliances or a fire.

Current monitoring: it is connected to an electrical circuit and continuously monitors the current flowing through it. Each circuit breaker is calibrated for a specific level of current, such as 16A, 20A or 32A, depending on the circuit's requirements.

Overload: when a circuit consumes more current than its intended capacity (for example, if too many appliances are plugged into the same circuit), this causes an overload. The circuit breaker detects this overload and heats an internal element which triggers a cut-off mechanism to interrupt the power supply.

Short circuit: if a fault occurs in the circuit (such as a short circuit between phase and neutral), the current rapidly rises to an extremely high level. The circuit breaker reacts almost instantly by interrupting the electrical flow to prevent any damage to equipment and minimise the risk of fire.

Tripping and resetting: when an overload or short circuit is detected, the circuit breaker trips, cutting off the electrical supply to the circuit. Once the problem is resolved, it can be reset manually by raising the lever, thus restoring the electrical supply.

It is therefore an essential safety element to protect your 230V electrical circuits present within your van electrical installation against current overloads, insulation faults, and to prevent fire risks or failures.

What are the advantages of the 16A circuit breaker?

Compact: With its 1-module format, it will fit perfectly in your electrical panel.

Reliable protection: Its Phase+Neutral design allows simultaneous disconnection of both conductors, thus providing good safety. It has a breaking capacity of 3kA.

Installation complying with the strictest quality standards.

Also discover the 30mA Residual Current Circuit Breaker!

Technical specifications of the 16A circuit breaker

• Nominal current: 16A
• Breaking capacity: 3kA
• Type: Phase+Neutral
• Space in an electrical panel: 1 module
• Installation: to be inserted and clipped onto the designated row in the back of the electrical panel.
• Safety standards: complies with CE standards and current electrical regulations.
• Additional accessory (sold separately): The Deblex electrical panel

For optimal protection of your electrical installation on board your converted vehicle, install a 16A circuit breaker per 230V electrical circuit! Easy installation in an electrical panel!
