Autoterm diesel heating kit for Renault Master (2010–2024): autonomous heat in every size

The Renault Master is often the base of choice for the most ambitious van conversions: generous volume, proven reliability, easy under-chassis access. This Autoterm diesel heating kit, designed for Masters produced from 2010 to 2024, is available in two variants depending on the size of your van — and integrates a different heater according to size: the Air 2D (2 kW) for L1H1 and L2H2 formats, the Air 4D (4 kW) for the larger lengths L3H3 and L4H3.

In both cases, the heater is installed under the chassis in a protective mounting housing. This is an essential safeguard on a large van often used in demanding conditions: the housing protects the unit from mud, gravel and water splashes. For the L1H1/L2H2, warm air is delivered through a 60 mm duct. For the L3H3/L4H3, the 4 kW output of the Air 4D and its 90 mm duct allow effective heating of the most generous volumes, up to 168 m³/h of warm air flow.

The fuel connection is made via a Quick Connector T-tap adapted to the Master, without drilling the main tank. The Comfort Control panel with its cable extension allows temperature control from inside the van up to 30 °C. Fuel consumption between 0.10 and 0.24 L/h of diesel ensures comfortable range, even with a 7 or 13-litre auxiliary tank.

Certified E2-10R and E2-122R, VASP compatible. 2-year warranty, extendable to 3 years with installation by an approved Autoterm professional.

How do I identify my Renault Master size?

The size code appears on your vehicle registration certificate (line J.2) or on the manufacturer's plate affixed to the front door pillar.

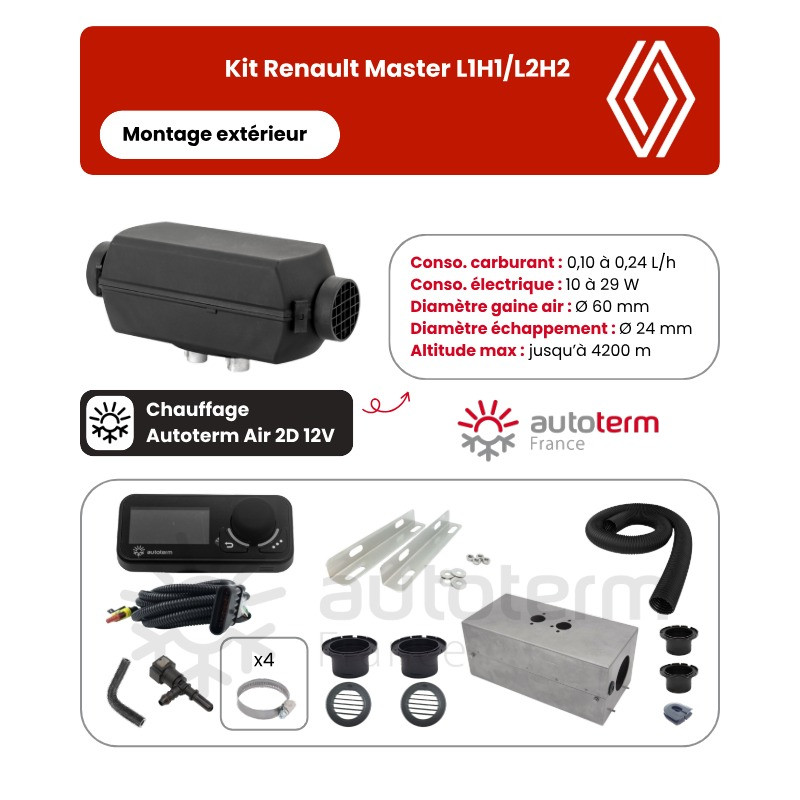

Autoterm heating kit contents – Renault Master (2010–2024)

SKU 9.388_L1L2 (Air 2D – L1H1/L2H2):

• 1 Autoterm Air 2D diesel heater (2 kW) with its complete basic kit
• 1 Comfort Control panel + extension cable
• 1 mounting housing + support kit
• 2 m of ultra-resistant ducting Ø 60 mm
• 2 clamps Ø 60 mm · 2 grilles Ø 60 mm · 4 hose clamps 60 mm
• 1 Quick Connector T-tap + bent hose

SKU 9.388_L3L4 (Air 4D – L3H3/L4H3):

• 1 Autoterm Air 4D diesel heater (4 kW) with its complete basic kit
• 1 Comfort Control panel + extension cable
• 1 mounting housing + support kit
• 2 m of ultra-resistant ducting Ø 90 mm
• 1 air outlet adapter Ø 96-90 mm · 2 clamps Ø 90 mm · 2 grilles Ø 90 mm
• 1 deflector Ø 90 mm · 4 hose clamps 90 mm
• 1 Quick Connector T-tap + bent hose

Autoterm Air 4D basic kit included (SKU 9.388_L3L4): control panel cable 1.80 m · fuel pump cable 6 m · power supply cable 6.50 m 12 V · nylon fuel line 5.5 m · silent fuel pump · diesel immersion probe · silencer with mounting kit · stainless steel exhaust pipe 1 m (Ø 24 mm) · thermal insulation 45 cm · air intake pipe with silencer · screws, fittings and clamps.

How to install the heating kit on a Renault Master?

The mounting housing bolts onto the chassis frame rail and houses the heating unit, protecting it from debris. The Quick Connector T-tap connects to the Master's fuel circuit without drilling the tank. The electrical cables run to the battery or the conversion's battery bank. For SKU 9.388_L1L2, the 60 mm duct passes through the floor to blow warm air inside. For SKU 9.388_L3L4 (Air 4D), the duct is Ø 90 mm — the Ø 96-90 mm air outlet adapter is included in the kit.

The installation manuals and conformity certificates are available on the Autoterm website — useful to keep for the VASP file and during technical inspections.

Useful complementary products:

• Additional Ø 60 mm heating duct – essential for L3H3 with a large volume to cover
• 7 L or 13 L auxiliary fuel tank
• Additional clamps and grilles – to multiply the air outlet vents

A heating kit compatible with VASP certification

The Autoterm Air 2D and the Autoterm Air 4D are both certified E2-10R and E2-122R, in accordance with the regulatory requirements of VASP certification for independent heaters integrated into a converted vehicle. The conformity certificates are supplied by Autoterm and must be presented to the inspector during the type approval process.

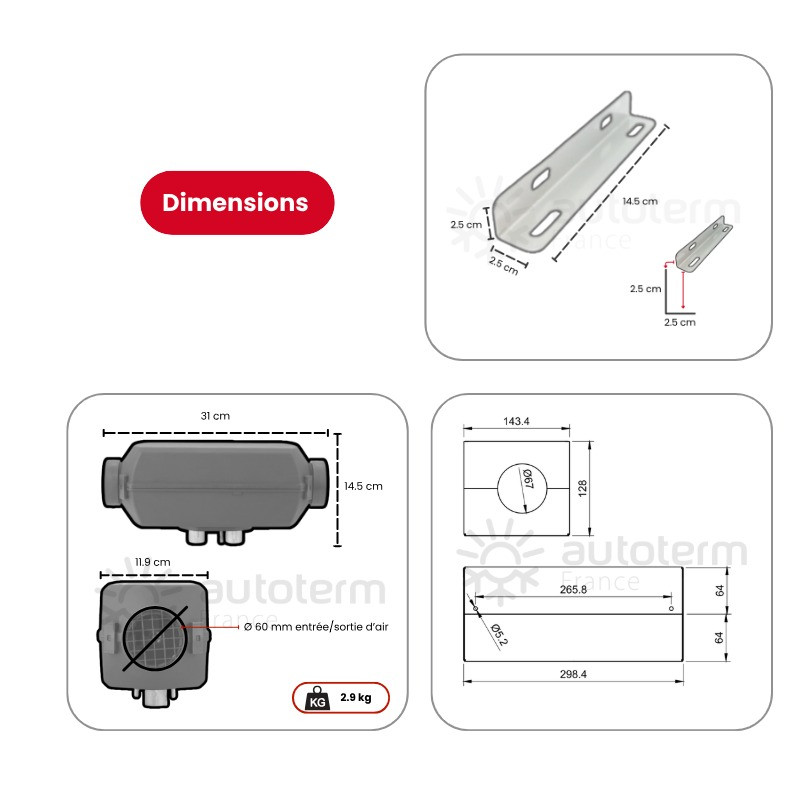

Technical specifications of the Autoterm heating kit – Renault Master (2010–2024)

SKU 9.388_L1L2 – Autoterm Air 2D (L1H1/L2H2)

• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Heated air volume: 34 to 86 m³/h
• Fuel consumption: 0.10 to 0.24 L/h
• Power consumption: 10 to 29 W
• Air duct diameter: Ø 60 mm

SKU 9.388_L3L4 – Autoterm Air 4D (L3H3/L4H3)

• Heating output: 1 kW (min.) to 4 kW (max.)
• Heated air volume: 70 to 168 m³/h
• Fuel consumption: 0.12 to 0.51 L/h
• Power consumption: 10 to 57 W
• Air duct diameter: Ø 96 mm (Ø 90 mm adapter included)

Specifications common to both kits

• Fuel: Diesel (gas oil)
• Voltage: 12 V
• Exhaust diameter: Ø 24 mm
• Maximum operating altitude: up to 4,200 m
• Control panel: Comfort Control (included)
• Installation: External under-chassis (mounting housing included)
• Compatible vehicles: Renault Master L1H1 / L2H2 (SKU 9.388_L1L2) and L3H3 / L4H3 (SKU 9.388_L3L4) – model years 2010 to 2024
• Certification: E2-10R / E2-122R (VASP compatible)
• Warranty: 2 years (3 years with installation by an approved installer)
