Floor Mounting Bracket for Autoterm Air 2D - AUTOTERM
Floor Mounting Bracket for Autoterm Air 2D - AUTOTERM
2.807_H8
€58.80 Inc. VAT
Floor mounting bracket with choice of height (40 mm or 80mm) for Autoterm Air 2D diesel heater connected to an outside air supply.
Description

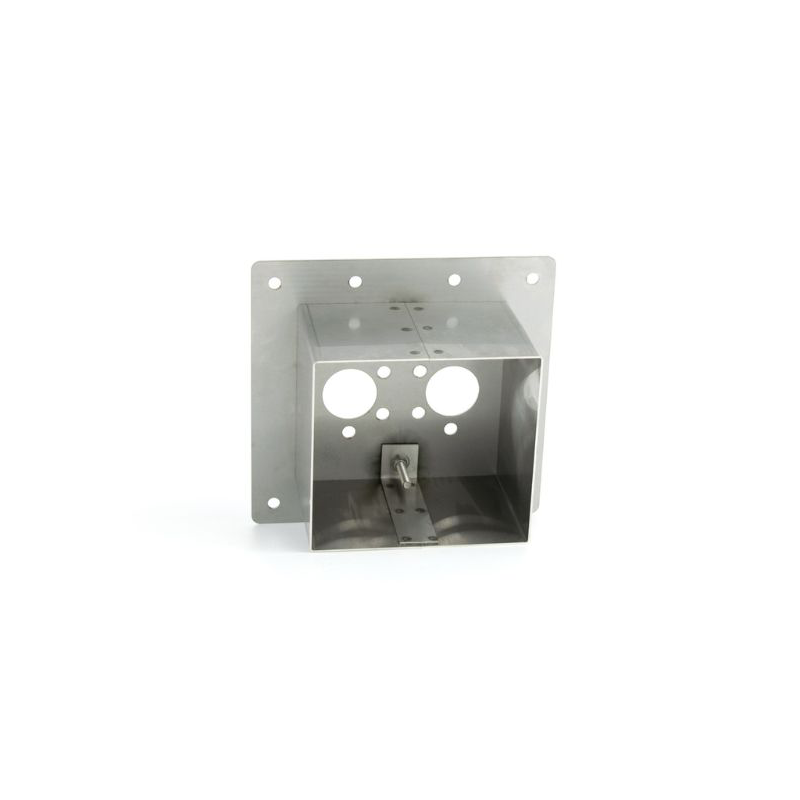

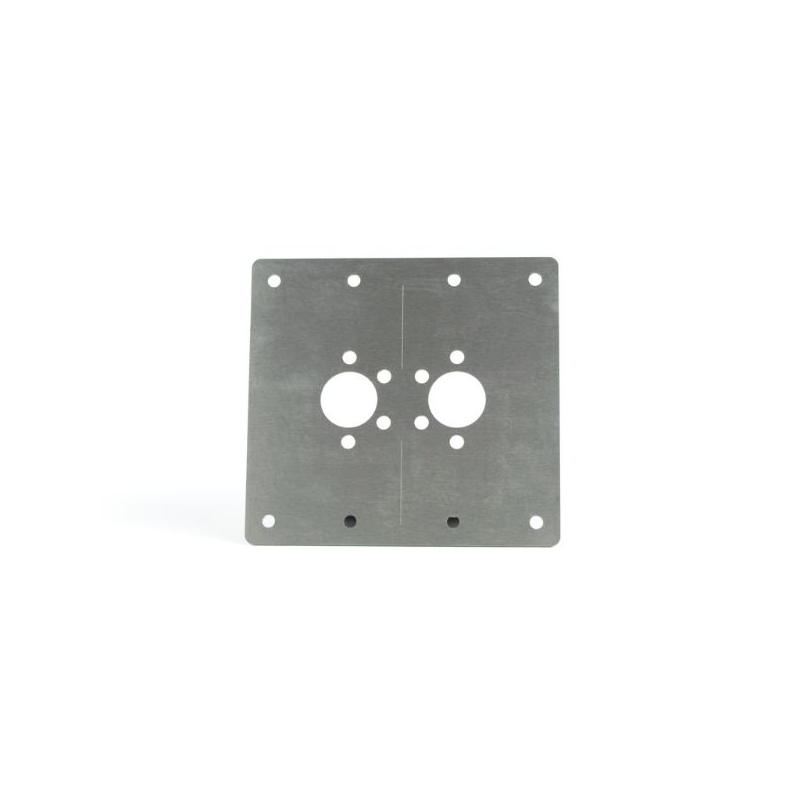

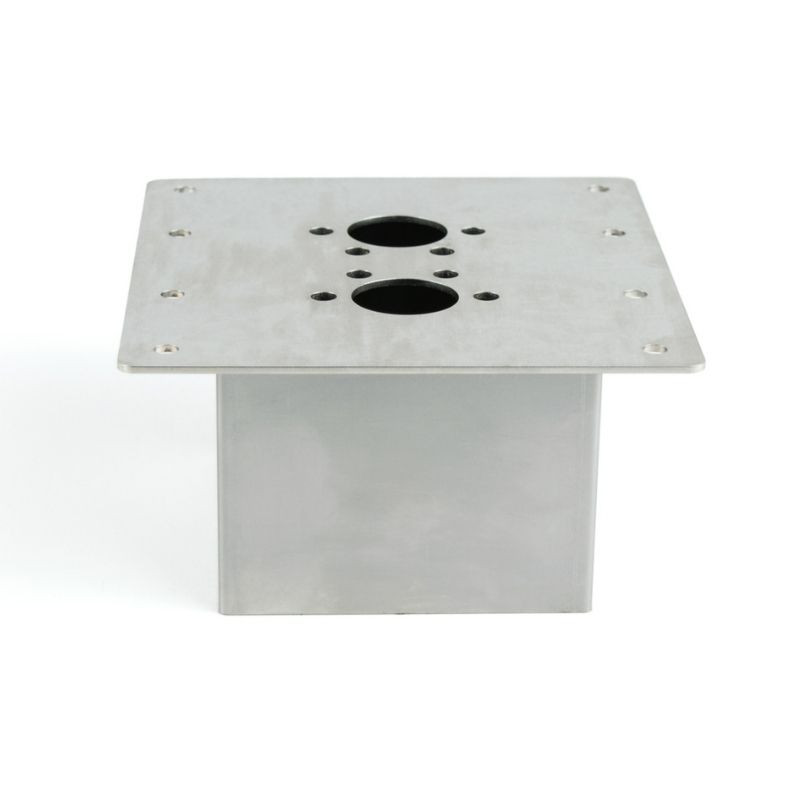

Fix your Autoterm Air 2D heater on a floor mounting bracket
Quickly and efficiently fix your Air 2D forced air heater.
Easy to assemble, this steel bracket (40mm or 80mm height depending on your choice) specially designed for an Autoterm Air 2D stationary heater will offer you the possibility to fix your heating system in the floor of your vehicle and connect it to outside air. The two central cells allow the air intake and exhaust outlet pipes to pass through. Cut your floor to the bracket dimensions to create an even more secure system!
Creating a buffer between the exhaust pipes and the walls of your floor, it will protect the latter from heat.
Warning: If you choose the 8 cm height mounting bracket, the maximum thickness of the floor (including metal sheet) must be 8 cm. And if you choose the 4 cm height mounting bracket, the maximum thickness of the floor (including metal sheet) must be 4 cm.

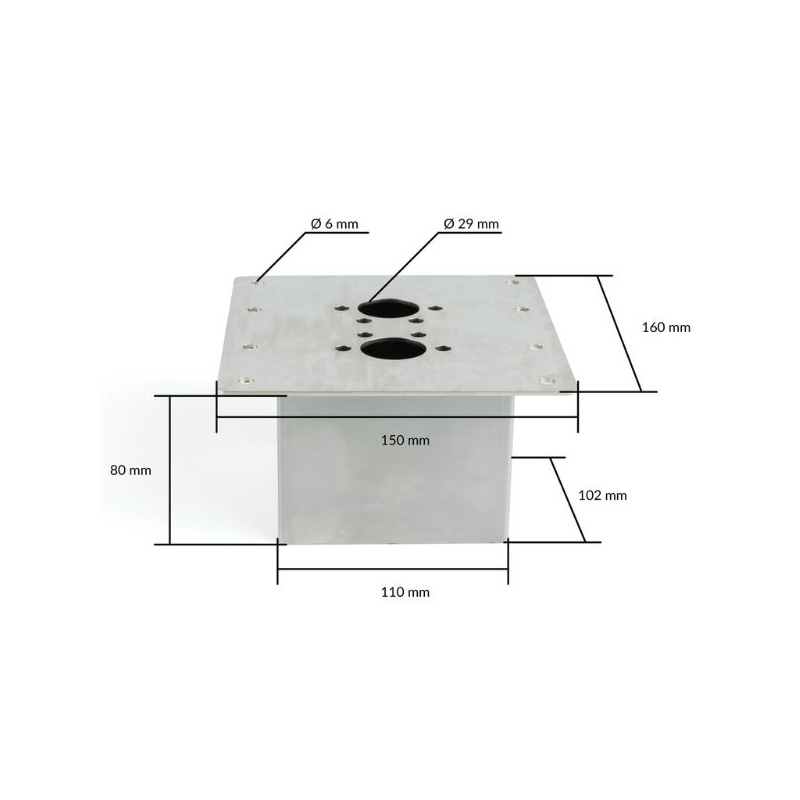

Technical specifications
4 cm height mounting bracket:
- Dimensions (top): 160 x 150 x 2 mm
- Dimensions (bottom): 104 X 104 X 40 mm
- Exhaust / air intake: Ø 30 mm
- Screws: Ø 6 mm
- 316 stainless steel
8 cm height mounting bracket:
- Dimensions (top): 160 x 150 x 2 mm
- Dimensions (bottom): 104 X 104 X 80 mm
- Exhaust / air intake: Ø 30 mm
- Screws: Ø 6 mm
- 316 stainless steel
Compatibility
