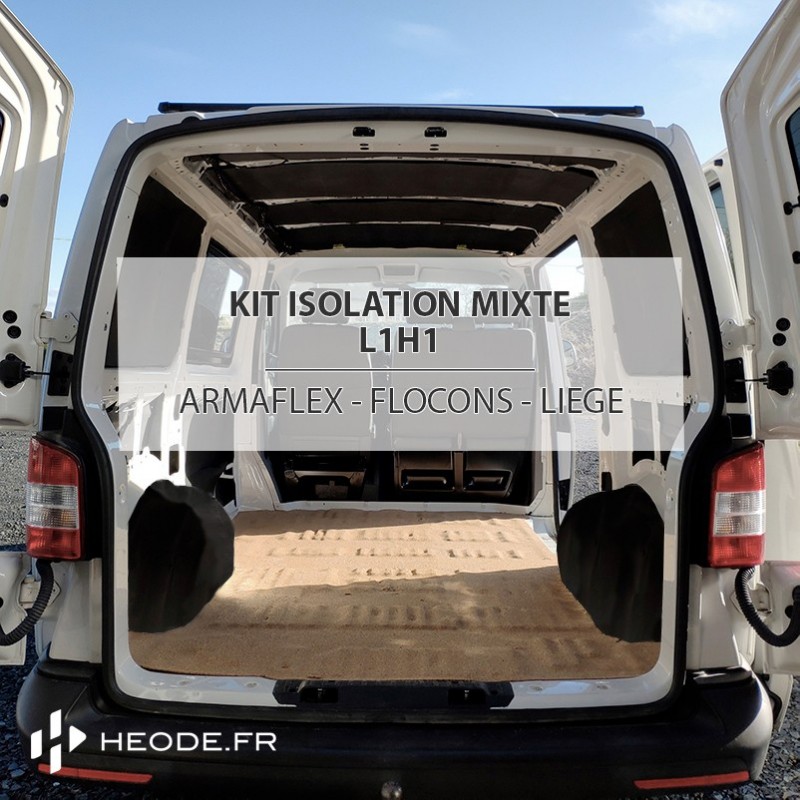

Kit d'isolation L1H1 Armaflex - Flocons - Liège

Kit d'isolation L1H1 Armaflex - Flocons - Liège

2.722_L1H1
€512.85 Inc. VAT

Retrouvez ce qui se fait de mieux pour l'isolation de véhicule aménagé camping-car dans ce kit mixte Armaflex / flocons d'Armaflex pour véhicule L1H1.
Se protéger des variations de température est un impératif pour tout voyageur nomade qui souhaite profiter confortablement de son fourgon aménagé.

Pack products My pack description
Expédié sous 24h

Man cleaning the panels of a van



Step 2: Insulate the walls and ceiling

Roll out the Armaflex ChezMoi 19 mm on the walls and ceiling, starting from the bottom and removing the protective film as you go.

Smooth each section by hand to remove air, then reinforce the ceiling with mechanical fixings every 500 mm.

Step 1: Prepare the surfaces

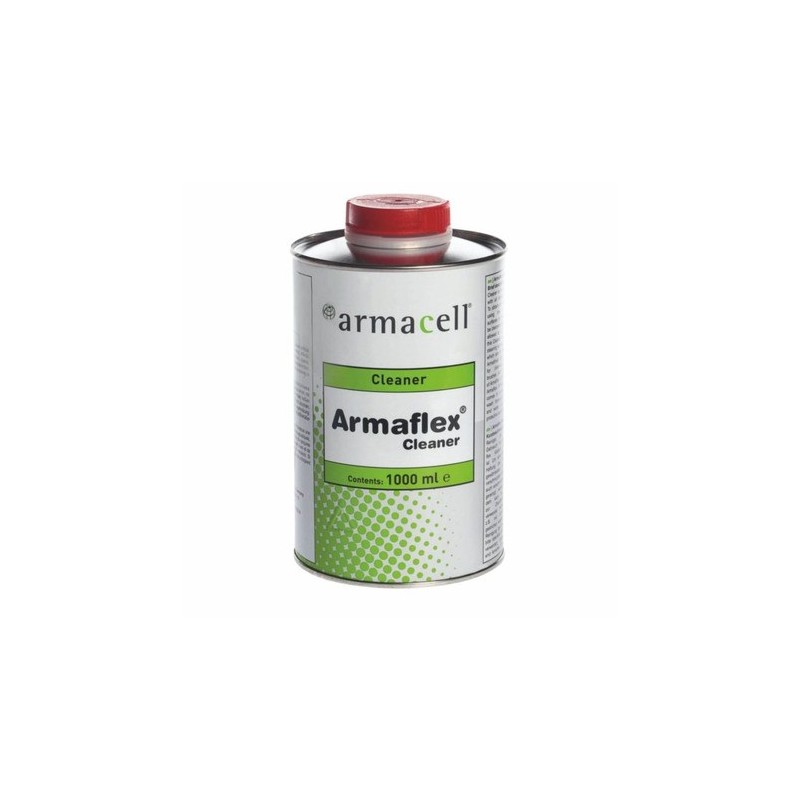

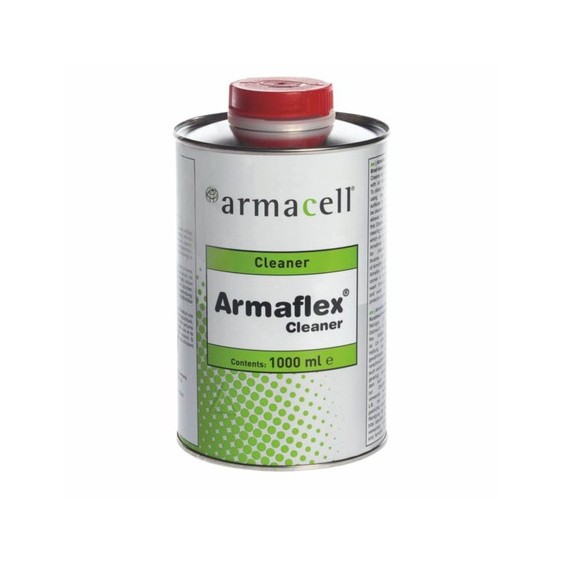

Degrease the sheet metal with Cleaner Armaflex, from top to bottom, before any installation. A perfectly clean and dry surface is essential: the slightest trace of grease or dust will prevent the adhesive from holding over time.

Install your battens and mechanical fixings before the insulation, so as not to crush it once in place.

Man fitting Armaflex ChezMoi 10mm into the reinforcements of a van

Step 3: Treat reinforcements and wheel arches

The Armaflex ChezMoi 10 mm, thinner and more flexible, slides into the uprights, side rails and wheel arches that the 19 mm cannot conform to. Cut it with a fresh blade and a 5 mm margin to accommodate irregularities in the sheet metal.

Step 4: Fill the doors with flake insulation

Fit the Proclima Intello vapour barrier using the adhesive tape, making sure to leave a large enough opening. Inject the Armaflex flakes, and close the vapour barrier as you fill. Tamp down lightly to avoid air pockets, but without compressing the material.

Once all the nooks of the door are filled, finish sealing the vapour barrier with the adhesive tape to block water vapour.



Step 5: Seal the joints

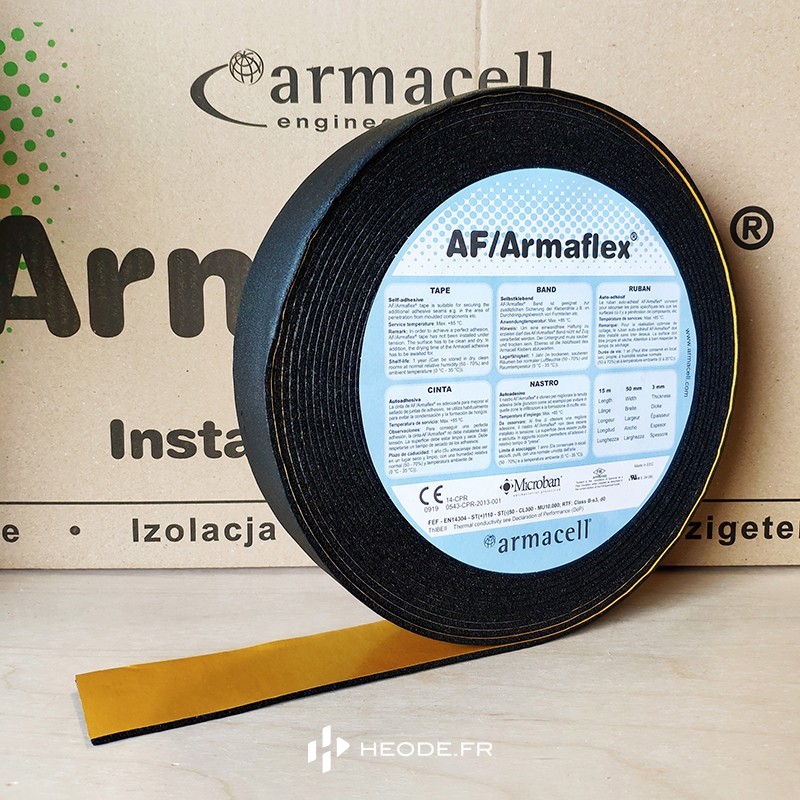

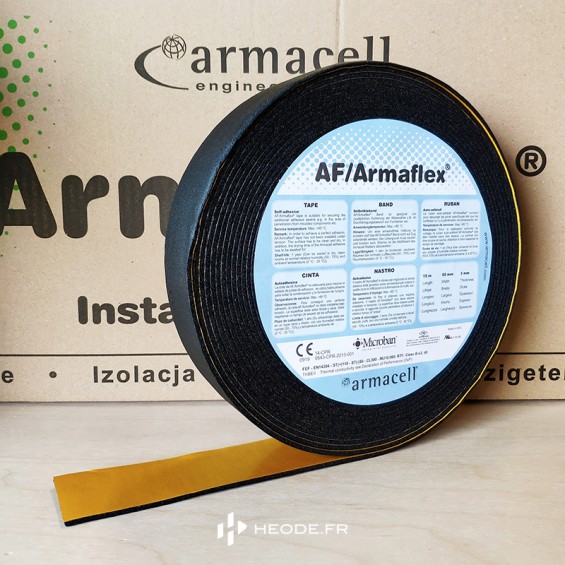

Every join between two strips of Armaflex ChezMoi, every angle and every cut must be sealed with Armaflex ChezMoi Tape. A single bare spot is enough to create a cold bridge where condensation settles, with a risk of corrosion on the sheet metal as a result. Be generous — this is not the time to have a light hand!

Man cutting a roll of cork with a craft knife

Person unrolling a roll of Armaflex ChezMoi insulating strip



Step 6: Lay the floor

Apply high-performance spray adhesive to the floor sheet metal, then roll out the 4 mm cork on top. Thin and flexible, it takes up almost no floor-to-ceiling height while cutting out the cold rising from the ground.

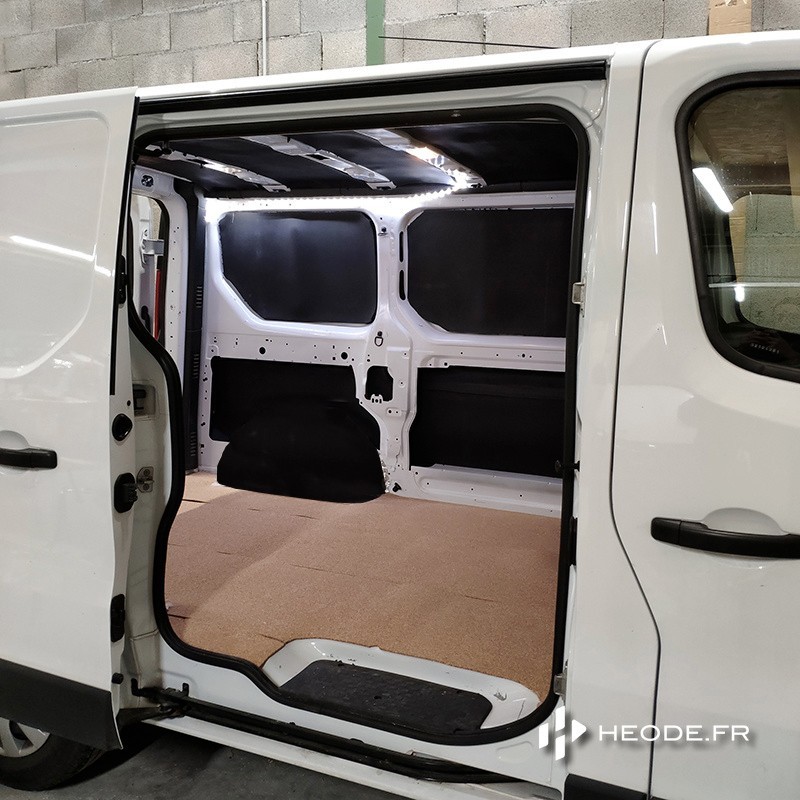

Once installed, your van is fully insulated — you can move on to the next step of your fit-out!

Pack contents

Insulate every nook of your L1H1, without complicated cutting

Armaflex ChezMoi insulates your L1H1 van from floor to ceiling, including the walls and reinforcements.

Yet, the real signature lies in the doors: rather than a panel to cut to size, Armaflex flakes are poured directly in and conform to every nook, even the narrowest ones. Cork completes the set on the floor. Quantities already calibrated for this size, adhesives and accessories included.

Compatible with L1H1 vans on the market (Renault Trafic, Peugeot Expert, Citroën Jumpy, Ford Transit Custom, Volkswagen Transporter and equivalents), this kit covers walls, ceiling, doors, wheel arches and floor.

  • Quantities calibrated for an L1H1: no more guesswork or unnecessary offcuts.
  • Armaflex ChezMoi, designed for the van: unlike the older AF, which was designed for construction.
  • Total coverage with no complex cutting: the flakes conform to every nook of the doors.
  • Easy installation with no prior experience: self-adhesive or loose-fill materials.
  • No cutting on difficult areas: the flakes are poured and compacted, without millimetre-precise adjustments.

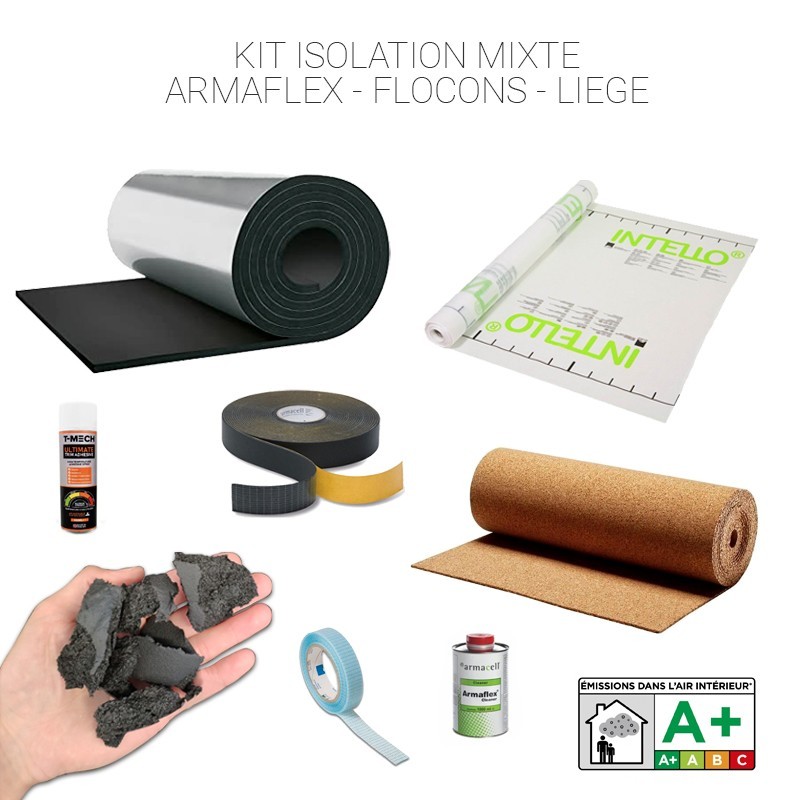

L1H1 insulation kit contents

Walls, ceiling and structural reinforcements



Doors



Wheel arches

  • Armaflex ChezMoi 10 mm self-adhesive (quantity included above)



Floor



Materials chosen for their role in insulation

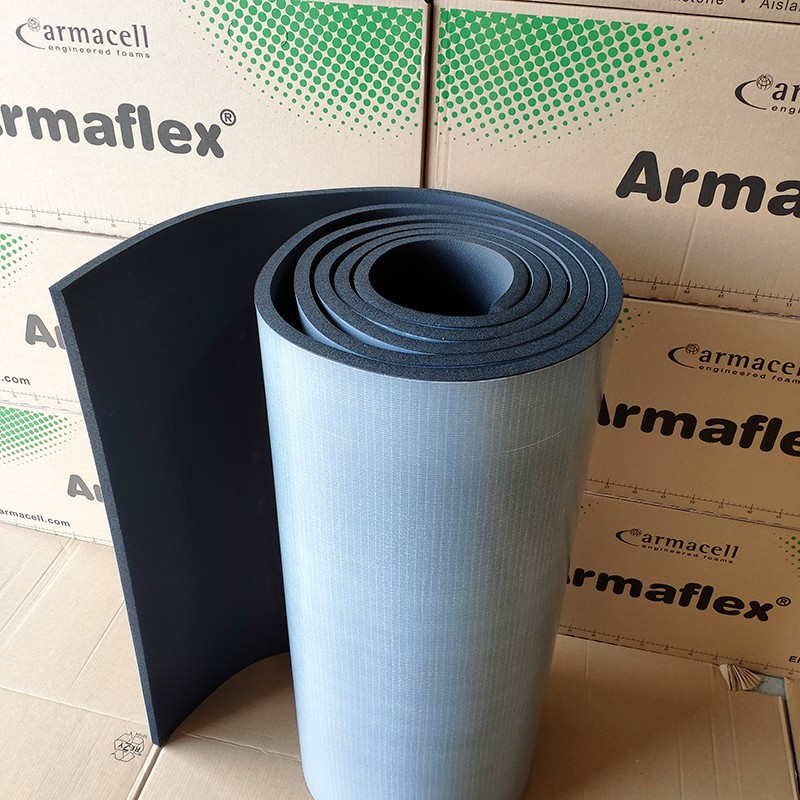

Armaflex ChezMoi — the insulation designed for the van

Successor to the Armaflex AF, the ChezMoi uses the same closed-cell technology, in a formulation designed from the outset for van fitting rather than construction. Its integrated vapour barrier means there is no need to add a separate vapour control layer to the walls and ceiling.

  • Role in the kit: walls, ceiling, reinforcements, wheel arches
  • Thickness / packaging: 19 mm (6 m² roll) and 10 mm (10 m² roll)
  • Thermal conductivity (λ): 0.035 W/(m·K)
  • Integrated vapour barrier: closed cells, no separate vapour control layer needed
  • Antimicrobial treatment: Microban®, integrated into the material
  • Service temperature: -50 °C to +85 °C
  • VOC emissions: A+ rating (ISO 16 000)
  • Manufacturer's warranty: 10 years
  • Origin / manufacture: Europe, Armacell technology



Armaflex flakes — the loose-fill insulation for impossible nooks

Armaflex flakes offer the same insulating properties as roll Armaflex, in a form that can be poured and conforms to any cavity — a solution for doors and areas that cut panels would be far more complex to cover!

  • Role in the kit: doors
  • Packaging: 5 kg bag
  • Nature: same material as roll Armaflex, in granule form
  • Installation method: poured and lightly compacted into the cavity

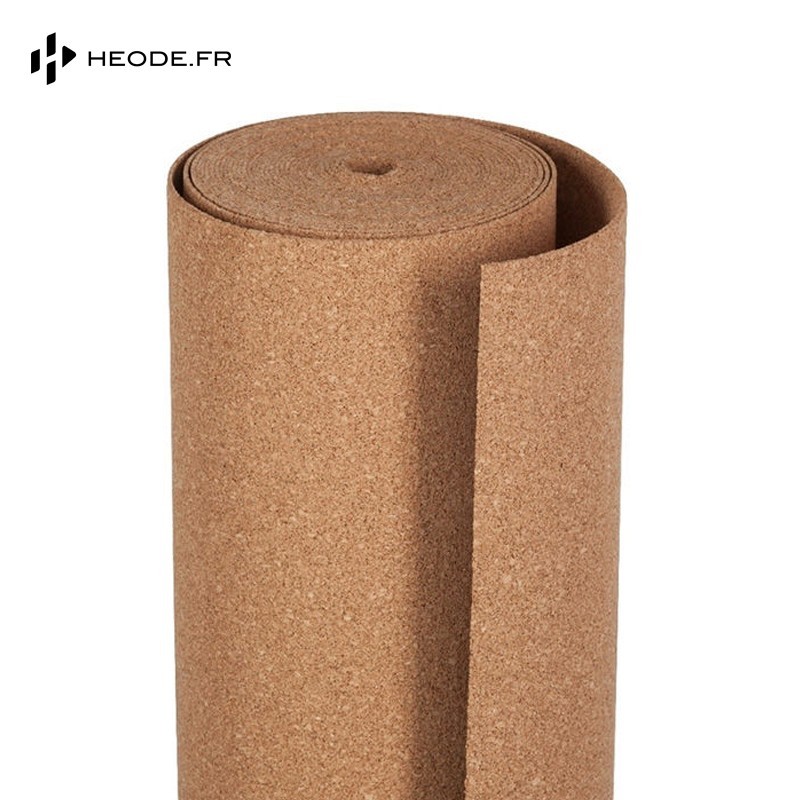

Cork — the natural floor insulation

Naturally rot-proof and moisture-resistant, cork insulates the floor without adding unnecessary thickness. Its lightness and flexibility make it a simple solution to install with spray adhesive, directly onto the metal sheet.

  • Role in the kit: floor
  • Thickness / packaging: 4 mm (4 m² roll)
  • Moisture resistance: rot-proof, naturally water-resistant
  • Origin / manufacture: natural material
