40 m² of Armaflex ChezMoi, guaranteed for 10 years, to insulate your Fiat Ducato L3H3

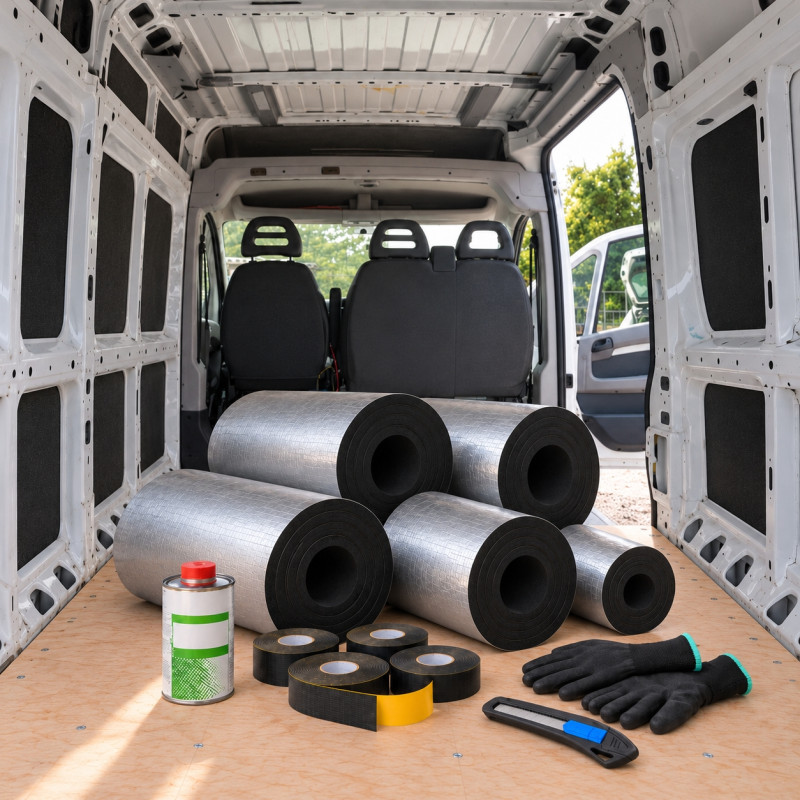

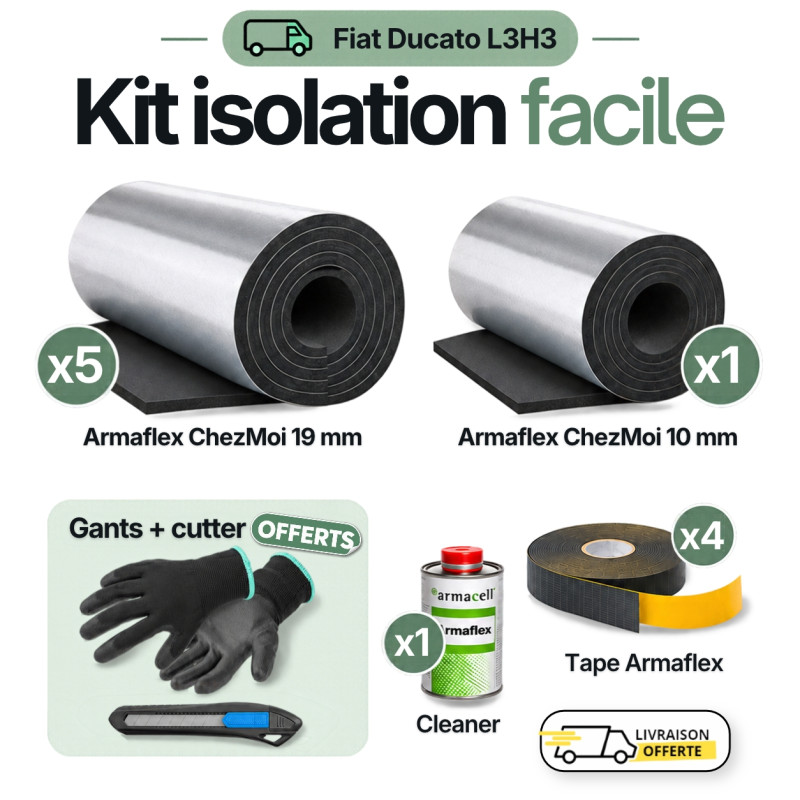

The manufacturer guarantees Armaflex ChezMoi for 10 years: it’s a material you can count on to insulate the large interior area of a Fiat Ducato L3H3. This kit brings together the quantities calculated for the Ducato L3H3: 1 roll of 10 mm insulation, 5 rolls of 19 mm insulation, 4 rolls of Tape and 1 Cleaner, with a free pair of gloves and utility knife.

Armaflex ChezMoi is an elastomeric foam made in Europe using Armacell technology. Its self-adhesive side sticks directly to cleaned metalwork, with no need for additional glue. The closed cells also act as a vapour barrier (μ> 7 000): no separate vapour control layer to fit, and less condensation on the metalwork.

With a thermal conductivity of 0.035 W/(m·K) and a service temperature range of −50 °C to +85 °C, it insulates against both cold and heat, whether you turn your Ducato into a campervan, a work van or a motorhome. Its A+ rating (ISO 16000, VOC-free) and Microban® antimicrobial treatment integrated into the material matter in a space where you sleep. Its reaction to fire meets the FMVSS automotive standard, and the manufacturer guarantees the material for 10 years.

The kit is straightforward to use: the 10 mm insulation goes on the floor and pillars, the 19 mm insulation on the walls and ceiling, Tape seals the joints, and Cleaner cleans the metalwork before fitting.

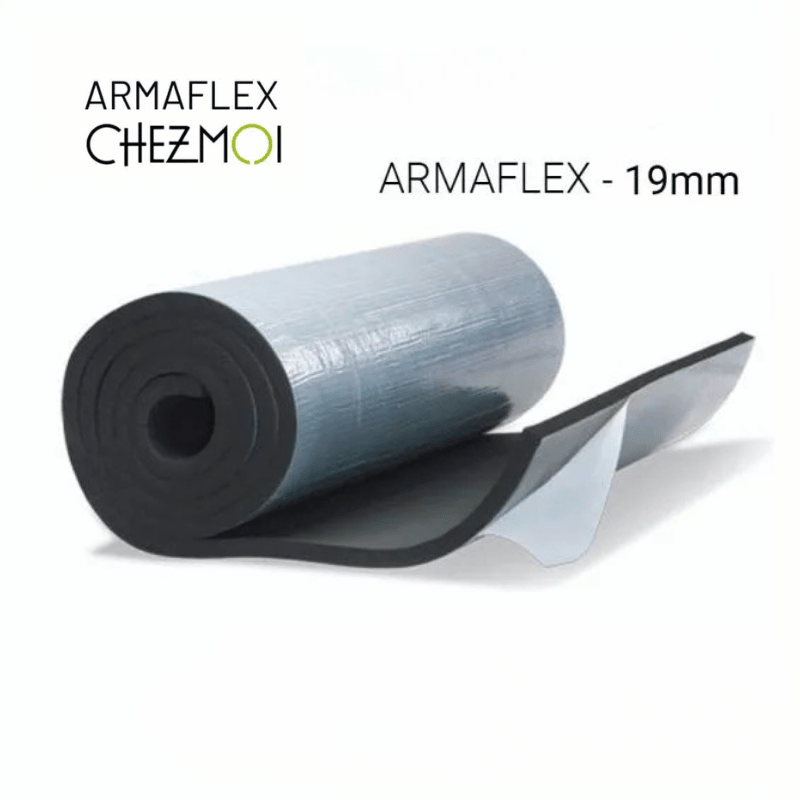

Armaflex ChezMoi 19 mm: insulate the walls and ceiling

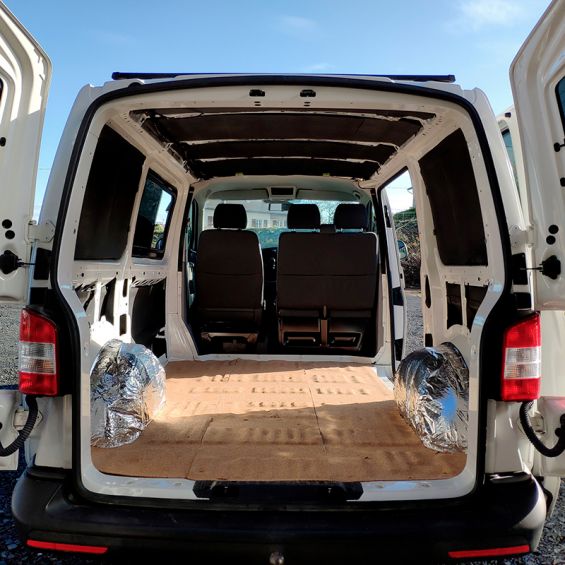

The 19 mm thickness is the standard choice for large areas. It provides the most insulation where space allows: the Ducato’s side walls, doors and ceiling. The kit contains 5 rolls, covering 30 m².

• Thickness: 19 mm
• Pack size: 6 m² roll (6 m × 1 m)
• Thermal conductivity: λ = 0.035 W/(m·K) at 0 °C
• Vapour barrier: integrated, μ> 7 000
• Service temperature: −50 °C to +85 °C
• Reaction to fire: FMVSS automotive standard
• Air quality: A+ rating (ISO 16000), VOC-free
• Antimicrobial treatment: Microban® integrated into the material
• Guarantee: 10 years (manufacturer)

Armaflex ChezMoi 10 mm: insulate the floor and pillars

The 10 mm insulation fits where space is tight: the floor, deep structural ribs, wheel arches and pillars. It insulates the metalwork while preserving headroom. The kit contains 1 roll, covering 10 m².

• Thickness: 10 mm
• Pack size: 10 m² roll (10 m × 1 m)
• Thermal conductivity: λ = 0.035 W/(m·K) at 0 °C
• Vapour barrier: integrated, μ> 7 000
• Service temperature: −50 °C to +85 °C
• Reaction to fire: FMVSS automotive standard
• Air quality: A+ rating (ISO 16000), VOC-free
• Antimicrobial treatment: Microban® integrated into the material
• Guarantee: 10 years (manufacturer)

Tape, Cleaner, gloves and utility knife: preparation, cutting and sealing joints

Tape seals the joints between sheets to limit thermal bridging, while Cleaner degreases the metalwork for good adhesion. The kit contains 4 rolls of Tape, providing 60 m of tape, and 1 Cleaner. A pair of gloves and a utility knife are included free for handling and cutting the insulation.

• Tape: 15 m × 50 mm adhesive roll; 4 rolls in the kit

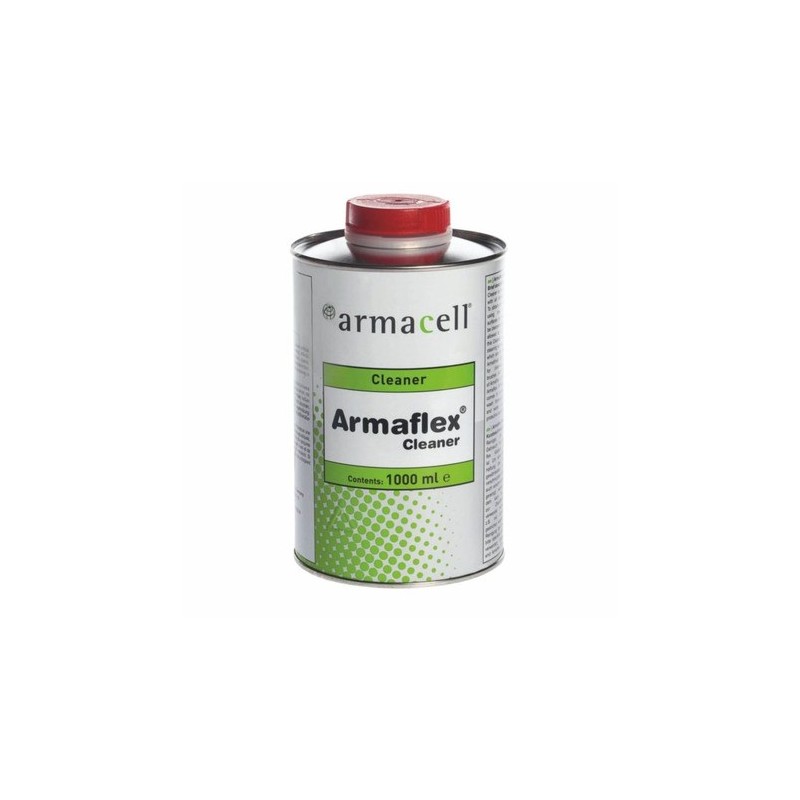

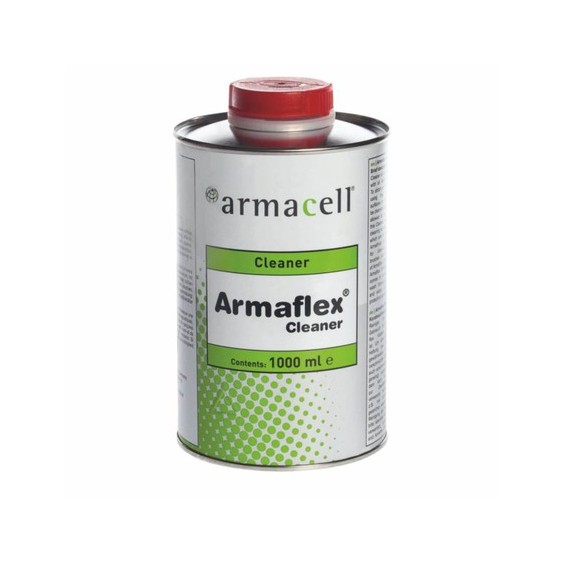

• Cleaner: solvent-based Armaflex cleaner, 1 L bottle, applied with a cloth; 1 included in the kit
• Gloves: 1 pair, included free with the kit
• Utility knife: 1, included free with the kit

Compatible with: Fiat Ducato L3H3

The kit is sized for the load area of a Fiat Ducato L3H3 panel van (from 2006 onwards): 3 705 mm long, 1 870 mm wide and 2 172 mm high, with 1 422 mm between the wheel arches. These measurements are a guide: measure your vehicle before fitting, especially if it has already been converted.

Please note: The partition separating the cab is not included in the areas covered by the kit.

The closed-cell structure of Armaflex ChezMoi already acts as a vapour barrier, so there’s no need for a separate vapour control layer.

The Ducato L3H3 shares its bodywork with the Peugeot Boxer and Citroën Jumper: see the Peugeot Boxer L3H3 and Citroën Jumper L3H3 kits. Other Ducato sizes: L1H1, L1H2, L2H1, L2H2 and L3H2.

How do I install the Armaflex ChezMoi kit in a Fiat Ducato L3H3?

Armaflex ChezMoi is self-adhesive: it can be fitted without glue, using a few simple tools, and requires no special skills. Just follow the steps in order. Our blog article on fitting Armaflex explains each step.

1. Prepare the panels. Identify the areas to insulate. If you’re planning wood panelling, fit your fixing battens first.
2. Clean the panels before fitting. Dampen a clean cloth with Cleaner and wipe down all the metalwork: it must be clean and free of grease for the adhesive to stick. Cleaner contains a solvent and gives off fumes: wear a mask and work outside if possible.
3. Mark out. Transfer the dimensions of each area onto the non-adhesive side of the insulation, starting with the floor and pillars (10 mm), then the walls and ceiling (19 mm).
4. Cut to size. Put on the gloves included free with the kit and cut the sheets to shape using the kit’s utility knife, or an Armacell knife set if you prefer. The foam cuts cleanly.
5. Stick in place. Peel back the protective film as you go, pressing the sheet onto the metalwork from the centre outwards to push out any air.
6. Seal the joints. Apply Tape over every joint between two sheets to limit thermal bridging.

Kit specifications

The kit also contains 4 rolls of Tape (15 m × 50 mm) and 1 bottle of solvent-based Cleaner (1 L), plus a free pair of gloves and utility knife.

Frequently asked questions about insulating a Fiat Ducato L3H3

How can I tell if my Ducato is an L3H3?

The size combines length (L1, L2, L3) and roof height (H1, H2, H3). Measure the usable length of the load floor: approximately 2 670 mm for an L1, 3 120 mm for an L2 and 3 705 mm for an L3. Then measure the interior roof height: approximately 1 662 mm for an H1, 1 932 mm for an H2 and 2 172 mm for an H3. An L3H3 measures approximately 3 705 mm by 2 172 mm.

Do I need DIY experience to fit this kit?

No. The insulation is self-adhesive and can be cut with the utility knife included free with the kit: clean, cut, stick, then seal the joints with Tape. Just follow the six steps in the installation section; the video shows you how.

Do I need to add glue?

No. The self-adhesive side of Armaflex ChezMoi sticks directly to the metalwork. Cleaner is only used to degrease it so the adhesive bonds properly.

Is this kit suitable for a Ducato-based motorhome?

It is designed for an L3H3 Ducato panel van being converted into a campervan or van-based motorhome. For an A-class or coachbuilt motorhome, the living area has different dimensions: measure it before choosing how much Armaflex you need.

Can I double the thickness for very cold conditions?

Yes, you can layer two sheets in exposed areas if you drive in very cold conditions. You’ll need to add extra rolls of Armaflex ChezMoi 19 mm to the kit.

Armaflex ChezMoi or Armaflex AF: what’s the difference?

Armaflex ChezMoi is the successor to Armaflex AF for vehicle conversions: the same self-adhesive foam, with a reaction to fire that meets the FMVSS automotive standard. Our article compares the two ranges point by point.

Is there a kit for the same-size Boxer or Jumper?

Yes: the Peugeot Boxer and Citroën Jumper each have their own L3H3 product pages. See the Peugeot Boxer L3H3 kit and the Citroën Jumper L3H3 kit.

Add to your van’s insulation

This kit insulates the metalwork in one go. If you want to go further with fibrous materials, explore our campervan insulation kits.
