Reduce condensation in your Peugeot Partner L2H1: 16 m² of Armaflex ChezMoi

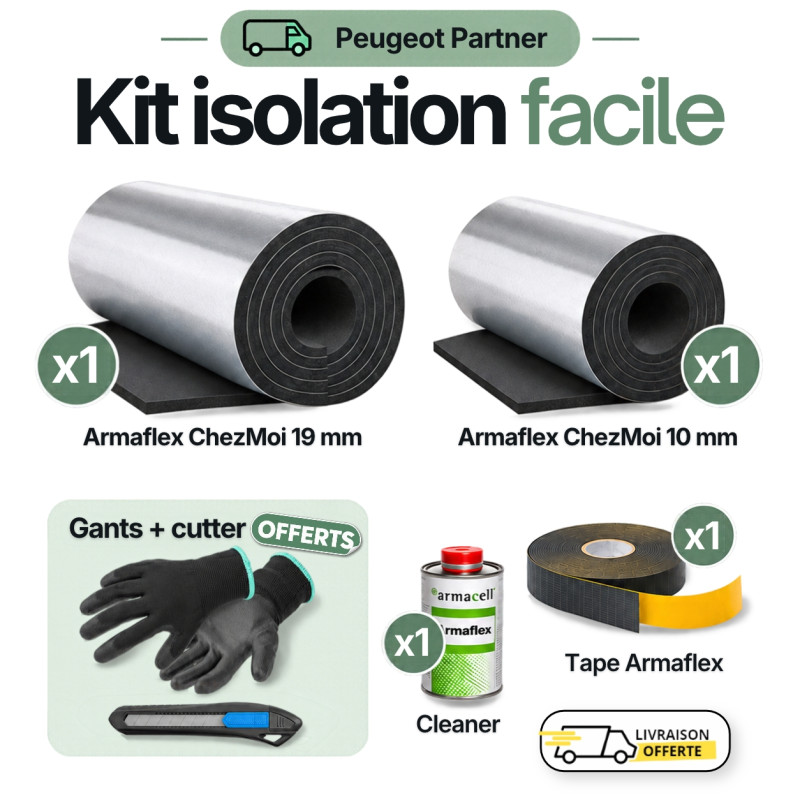

The closed cells of Armaflex ChezMoi act as a built-in vapour barrier (μ> 7,000): fitted to the sheet metal of a Peugeot Partner L2H1, it reduces condensation without the need for an additional vapour retarder — an important consideration in a small space where you sleep. This kit contains the quantities calculated for the Partner L2H1: 1 roll of 10 mm, 1 roll of 19 mm, 1 roll of Tape and 1 Cleaner, with a free pair of gloves and utility knife.

Armaflex ChezMoi is an elastomeric foam made in Europe using Armacell technology. Its self-adhesive backing sticks directly to clean sheet metal, with no extra glue needed. It insulates the entire sheet-metal surface, including the ceiling.

With a thermal conductivity of 0,035 W/(m·K) and an operating temperature range of −50 °C to +85 °C, it insulates against both cold and heat, whether you turn your Partner into a mini campervan or keep it as a work van. The A+ rating (ISO 16000, VOC-free) and Microban® antimicrobial treatment built into the material matter in a space where you sleep. Its fire performance meets the FMVSS automotive standard, and the manufacturer guarantees the material for 10 years.

The kit is straightforward to use: the 10 mm insulation is for the floor and uprights, the 19 mm insulation for the walls and ceiling, Tape for sealing the joins and Cleaner for cleaning the metal bodywork before fitting.

Armaflex ChezMoi 19 mm: insulating the walls and ceiling

The 19 mm insulation is the standard thickness for large surfaces. It provides the most insulation where space allows: on the Partner’s side walls, doors and ceiling. The kit contains 1 roll, covering 6 m².

• Thickness: 19 mm
• Pack size: 6 m² roll (6 m × 1 m)
• Thermal conductivity: λ = 0,035 W/(m·K) at 0 °C
• Vapour barrier: built in, μ> 7 000
• Operating temperature: −50 °C to +85 °C
• Fire performance: FMVSS automotive standard
• Air quality: A+ rating (ISO 16000), VOC-free
• Antimicrobial treatment: Microban® built into the material
• Warranty: 10 years (manufacturer)

Armaflex ChezMoi 10 mm: insulating the floor and uprights

The 10 mm insulation fits where space is tight: the floor, deep reinforcement sections, wheel arches and uprights. It preserves headroom, which is precious in a small van, while insulating the metal bodywork. The kit contains 1 roll, covering 10 m².

• Thickness: 10 mm
• Pack size: 10 m² roll (10 m × 1 m)
• Thermal conductivity: λ = 0,035 W/(m·K) at 0 °C
• Vapour barrier: built in, μ> 7 000
• Operating temperature: −50 °C to +85 °C
• Fire performance: FMVSS automotive standard
• Air quality: A+ rating (ISO 16000), VOC-free
• Antimicrobial treatment: Microban® built into the material
• Warranty: 10 years (manufacturer)

Tape, Cleaner, gloves and utility knife: preparation, cutting and sealing joins

Tape seals the joins between the sheets to help limit thermal bridges, while Cleaner degreases the metal bodywork for good adhesion. The kit contains 1 roll of Tape, providing 15 m of tape, and 1 bottle of Cleaner. A pair of gloves and a utility knife are included free for handling and cutting the insulation.

• Tape: 15 m × 50 mm adhesive roll, 1 included in the kit

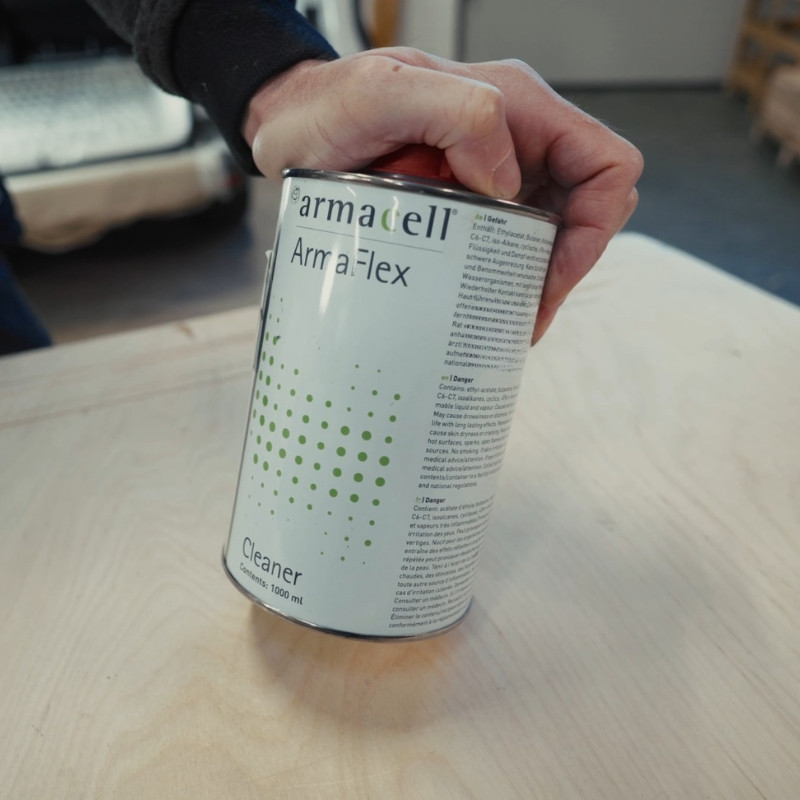

• Cleaner: solvent-based Armaflex cleaner, 1 L bottle, applied with a cloth, 1 included in the kit

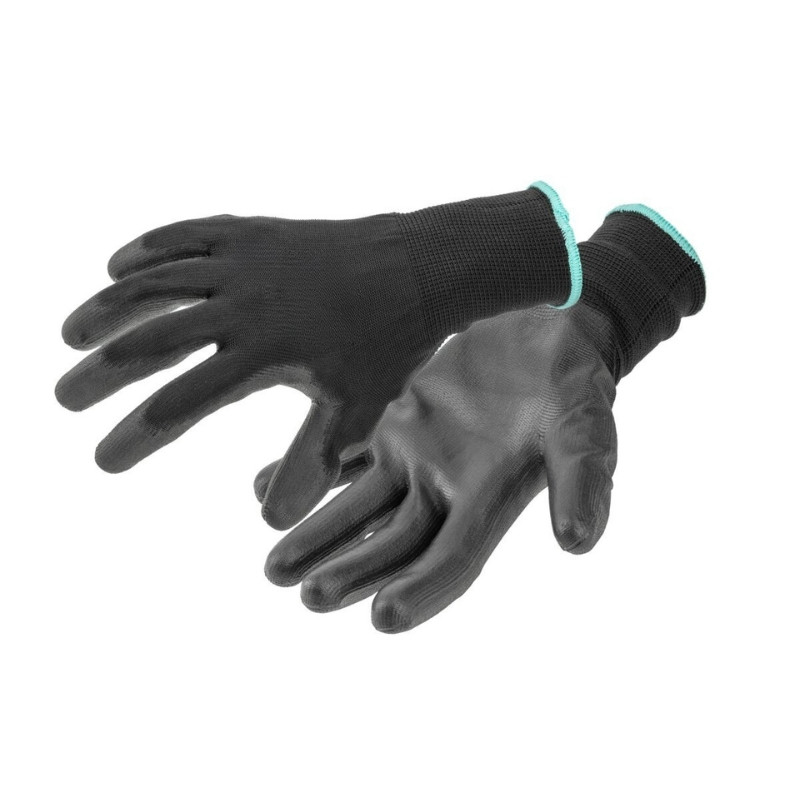

• Gloves: 1 pair, included free with the kit

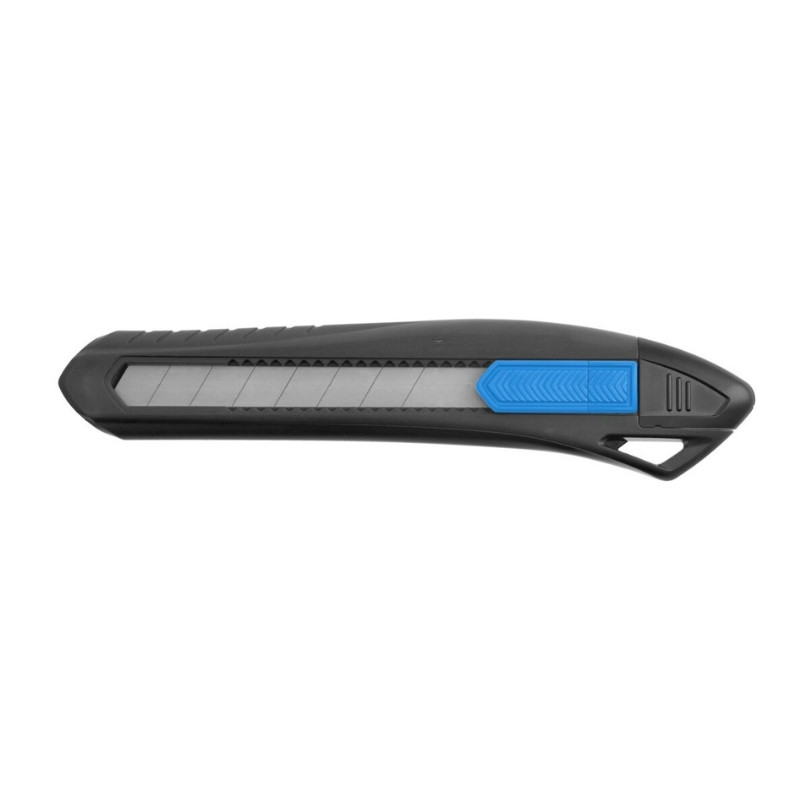

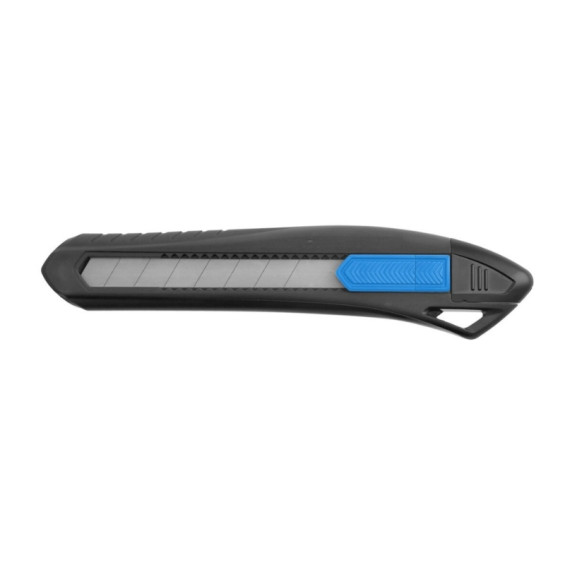

• Utility knife: 1, included free with the kit

Compatibility: Peugeot Partner L2H1

The kit is sized for the load area of a Peugeot Partner L2H1 commercial van (Long version) from 2018 onwards: 2,167 mm long, 1,527 mm wide and 1,200 mm high, with 1,229 mm between the wheel arches. These dimensions are a guide: measure your vehicle before fitting, especially if it has already been converted.

Please note: The partition between the load area and cab is not included in the areas covered by the kit.

As the closed-cell structure of Armaflex ChezMoi already acts as a vapour barrier, there is no need for a separate vapour control layer.

The Partner L2H1 shares its body with the Citroën Berlingo XL: see the Citroën Berlingo kit, suitable for both M and XL. Other Partner size: L1H1.

How do I fit the Armaflex ChezMoi kit in a Peugeot Partner L2H1?

Armaflex ChezMoi is self-adhesive: it can be fitted without extra adhesive, using a few simple tools, and requires no special skills. Just follow the steps in order. Our blog article on fitting Armaflex explains each step in detail.

1. Prepare the walls. Identify the areas to insulate. If you plan to fit wood panelling, install the fixing battens first.
2. Clean the walls before fitting. Dampen a clean cloth with Cleaner and wipe down all the metal bodywork: it must be clean and free of grease for the adhesive to stick. Cleaner contains a solvent and gives off fumes: wear a mask and work outdoors if possible.
3. Mark out. Transfer the dimensions of each area onto the non-adhesive side of the insulation, starting with the floor and uprights (10 mm), then the walls and ceiling (19 mm).
4. Cut. Put on the gloves included free and cut the sheets to shape using the utility knife from the kit, or an Armacell knife kit if you prefer. The foam cuts cleanly.
5. Stick down. Peel off the protective film as you go, pressing the sheet onto the metal bodywork from the centre outwards to push out any air.
6. Seal the joins. Apply Tape over each join between two sheets to help limit thermal bridges.

Kit technical specifications

The kit also contains 1 roll of Tape (15 m × 50 mm), 1 bottle of solvent-based Cleaner (1 L), plus 1 pair of gloves and 1 utility knife included free.

Frequently asked questions about insulating a Peugeot Partner L2H1

How can I tell if my Partner is an L2H1?

The Partner van comes in two lengths (Standard and Long), with just one roof height: these correspond to our L1H1 and L2H1 sizes. Measure the usable length of the load floor: approximately 1 817 mm for an L1H1 and 2 167 mm for an L2H1.

Do I need DIY skills to fit this kit?

No. The insulation is self-adhesive and can be cut with the utility knife included free in the kit: clean, cut, stick, then seal the joins with Tape. Just follow the six steps in the installation section; the video shows you how.

Do I need to add adhesive?

No, the self-adhesive backing on Armaflex ChezMoi sticks directly to the metal bodywork. Cleaner is only used to degrease it so the adhesive holds properly.

Is this kit suitable for a Peugeot Rifter?

It is designed for a panel-sided Partner van being converted into a campervan. The Peugeot Rifter is a passenger version with windows and an existing interior trim, so it does not have the same areas to insulate: measure the areas you need to cover before choosing how much Armaflex to buy.

Can I double the thickness for very cold weather?

Yes, you can layer two sheets in exposed areas if you travel in very cold conditions. You will need to add rolls of Armaflex ChezMoi 19 mm to the kit.

Armaflex ChezMoi or Armaflex AF: what’s the difference?

Armaflex ChezMoi is the successor to Armaflex AF for vehicle conversions: the same self-adhesive foam, with fire performance tested to the FMVSS automotive standard. Our article compares the two ranges point by point.

Is there a kit for the Citroën Berlingo?

Yes: the Citroën Berlingo has its own product page, with the same quantities, suitable for both the Berlingo M and XL. See the Citroën Berlingo kit.

Complete the insulation and finish of your Peugeot Partner L2H1

This kit insulates the metal bodywork in one go. To go further with eco-responsible materials, explore our campervan insulation kits.

For the floor, add an underlay of 4 mm cork roll beneath your flooring: it helps reduce the feeling of a cold floor and reduces vibrations and road noise. Explore the full cork insulation range.

For the wall finish, start with a stretch carpet lining sample: you can choose the colour (light grey, dark grey, anthracite, black or beige) in your van itself before ordering the van carpet lining.
