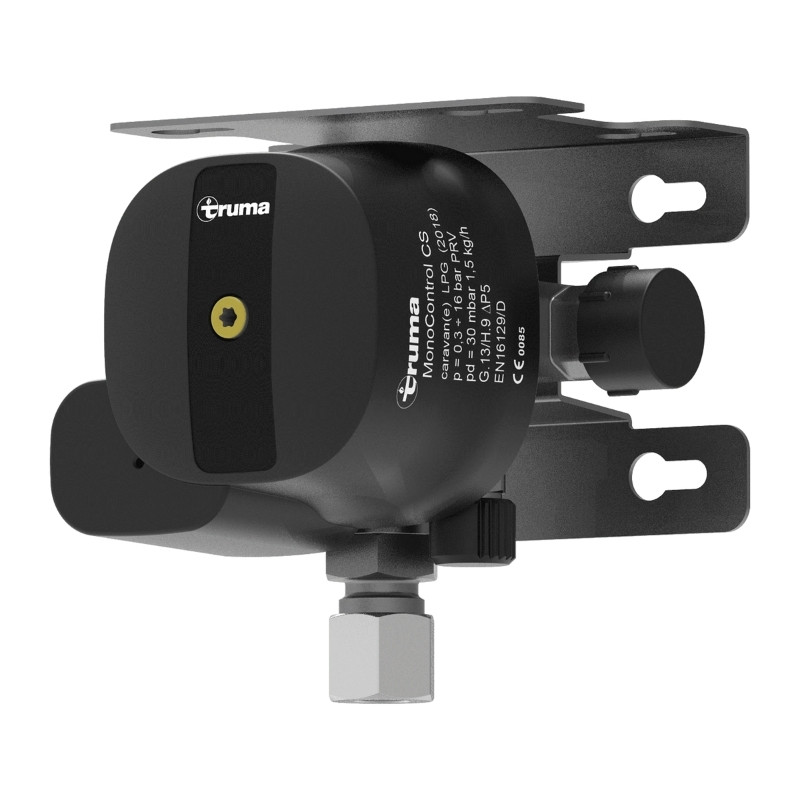

MonoControl CS Regulator with Crash Sensor - Truma

Normally, regulations require gas bottles to be closed while driving to prevent any risk of fire in the event of an accident, which can quickly cool your living space in winter. This safety regulator revolutionises your daily life by incorporating an ultra-sensitive crash sensor. In the event of an impact, even at low speed (around 15 to 20 km/h), the gas supply is instantly cut off, thus protecting your installation and your vehicle.

This intelligent system allows you to travel with the gas on in complete legality and peace of mind. Its activation is child's play: simply press the yellow reset button to release the flow.

Vertical version (V): ideal for narrow gas lockers where the bottle is placed directly under the regulator; compatible with M20 x 1.5 female outlets and 8 or 10 mm hoses.

Technical specifications of MonoControl CS Regulator with Crash Sensor - Truma

• Device type: gas pressure regulator with integrated collision sensor
• Sensor trigger: acceleration of 3.5 g +/- 0.5 g (direct impact or significant jolt)
• Outlet pressure: 30 mbar
• Maximum flow rate: 1.5 kg/h
• Body material: high-strength metal alloy
• Gas compatibility: propane, butane or LPG mixture
• Dimensions: approx. 106 x 101 x 102 mm (depending on version)
• Tool weight: approx. 900 g
• Inlet connection: M20 x 1.5 male thread
• Outlet connection: 8 mm or 10 mm olive fitting (olive supplied)
• Certifications: complies with heating directive 2001/56/EC and EN 13786
