Optimise the space in front of the wheel arch!

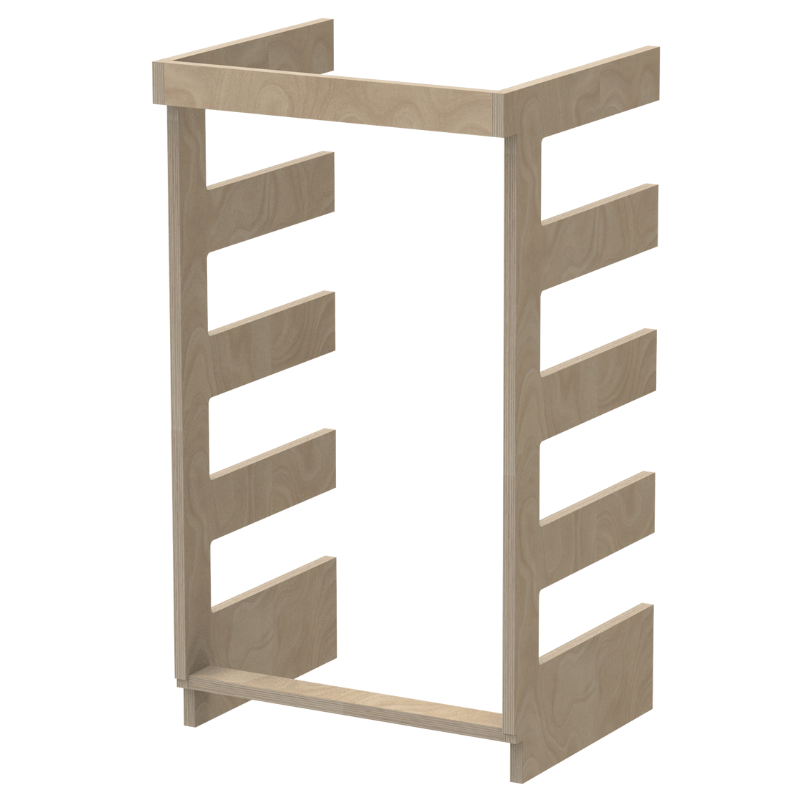

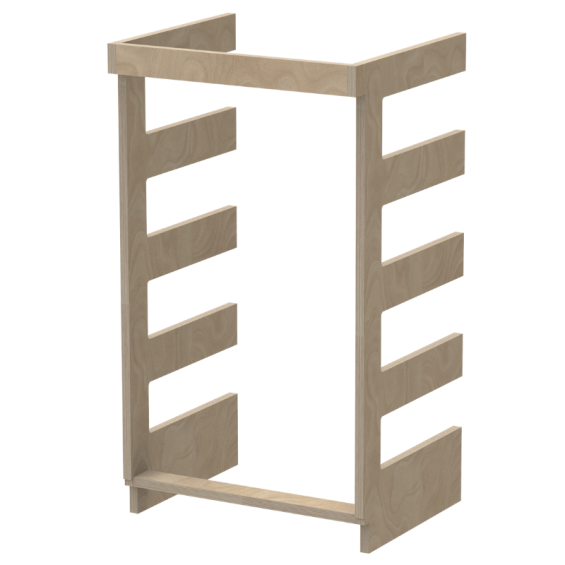

This universal central lower unit was designed to be placed in front of the wheel arch within the interior space of your converted van. The structure of the LB103 unit, the result of Heode innovation, has its own characteristics. Indeed, it's a lower unit that assembles horizontally only with the LB101 and LB102 lower units.

Let us explain: the LB103 unit allows the LB101 lower unit for left sliding door and the LB102 lower unit for right sliding door to function. It plays a key role in a configuration between them. Without it, the doors of units LB101 and LB102 cannot slide.

Assemble the LB103 lower unit in duo or trio, add shelves (ET1) and you'll get several storage compartments.

To offer you a quality piece of furniture with a nice finish, all structural parts of the lower units are made from 15mm thick birch plywood.

Which lower and/or upper LONGBOARD elements can I configure with my LB103 lower unit?

Heode guides you in assembling your LB103 lower unit to form a duo or trio:

• LB101 lower unit for left sliding door + LB103 central lower unit for wheel arch
• LB101 lower unit for left sliding door + LB103 central lower unit for wheel arch + LB102 lower unit for right sliding door
• LB103 central lower unit for wheel arch + LB102 lower unit for right sliding door

To have several storage areas, simply add shelves (ET1) inside your LB103 lower unit. But also inside the LB101 and LB102 lower units. We know that all travellers want to keep an organised interior space in their van!

Shelves maximise the storage potential of LONGBOARD lower units.

Strengths of the LB103 lower unit

Modularity: Several configurations possible with the LB103 central lower unit for wheel arch in duo or trio lower compositions (as seen previously). It can also be assembled with the LB105 upper unit.

Space optimisation: Designed to be placed in front of a wheel arch to maximise space. By adding shelves (ET1), you'll get storage volume on several levels to put everything in its place!

Practicality: Thanks to its very manageable fixed central door (P6), easily access your belongings stored on one or more shelves (ET1), previously installed, which make the most of the space.

Easy assembly: Necessary screws are supplied along with clear assembly instructions for a pleasant installation!

Technical specifications of the LB103 lower unit

• Dimensions (WxHxD): 420x740x350 mm.
• Structure made from 15mm thick birch plywood.
• Compatible with lower units: LB100; LB101; LB102; LB104.
• Compatible with upper unit: LB105.
• Compatible with side storage modules: LB106; LB107.
• Compatible with door front: (P6) fixed central.
• Compatible with shelves: (ET1).
• Not compatible with drawers and drawer fronts.
• Compatible with wheel arch.
• Screws supplied.
• Assembly instructions supplied.
