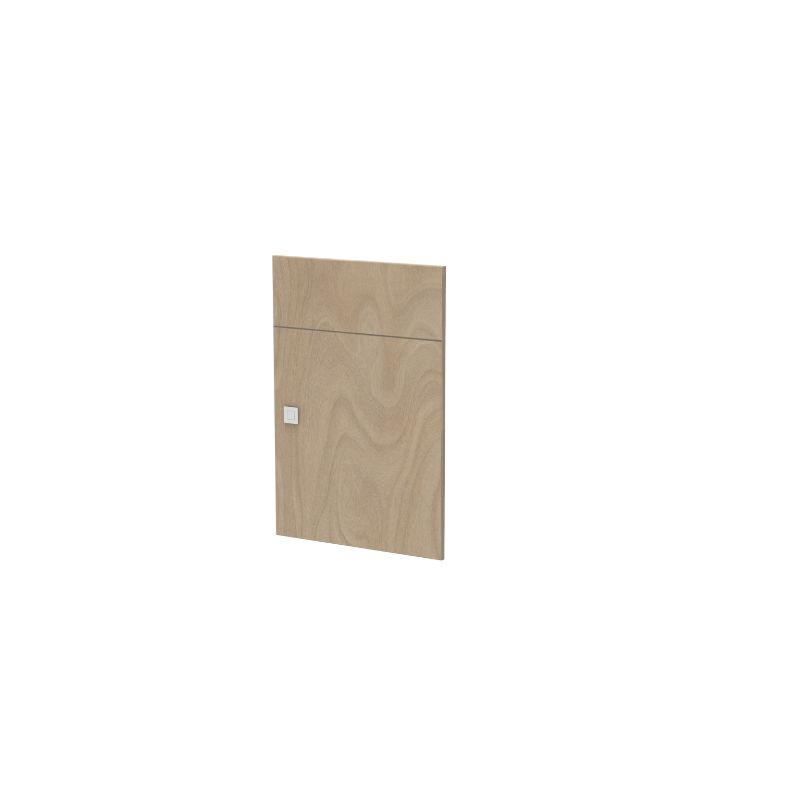

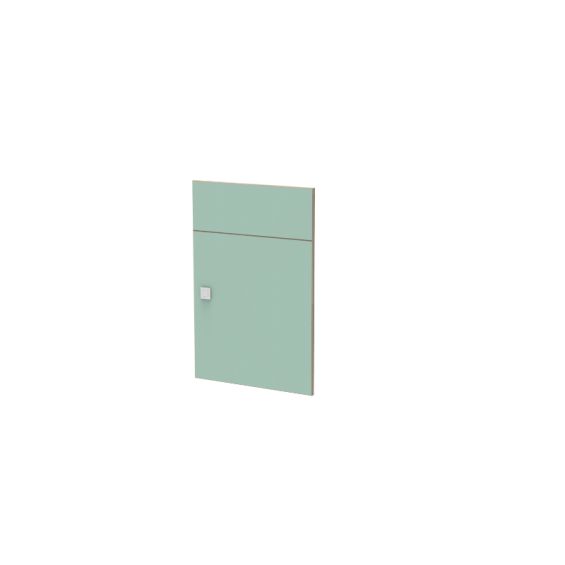

LONGBOARD - 1/4" Sliding Door Front - P5

The 1/4 sliding door front essential for P4 and P12 LONGBOARD fronts

This 1/4 sliding door front (P5) is very specific but extremely important, as it must fit into both the left 3/4 sliding door front (P4) and the right 3/4 sliding door front (P12) to enable them to operate.

Here are the possible configurations for a complete sliding door:

• 1st configuration: 1/4 sliding door front (P5) + 3/4 left sliding door front (P4)
• 2nd configuration: 1/4 sliding door front (P5) + 3/4 right sliding door front (P12)

Made from birch plywood with an HPL laminate coating, 15 mm thick to match the other LONGBOARD elements. This coating resists stains, scratches and light impacts to make your roadtrip life easier.

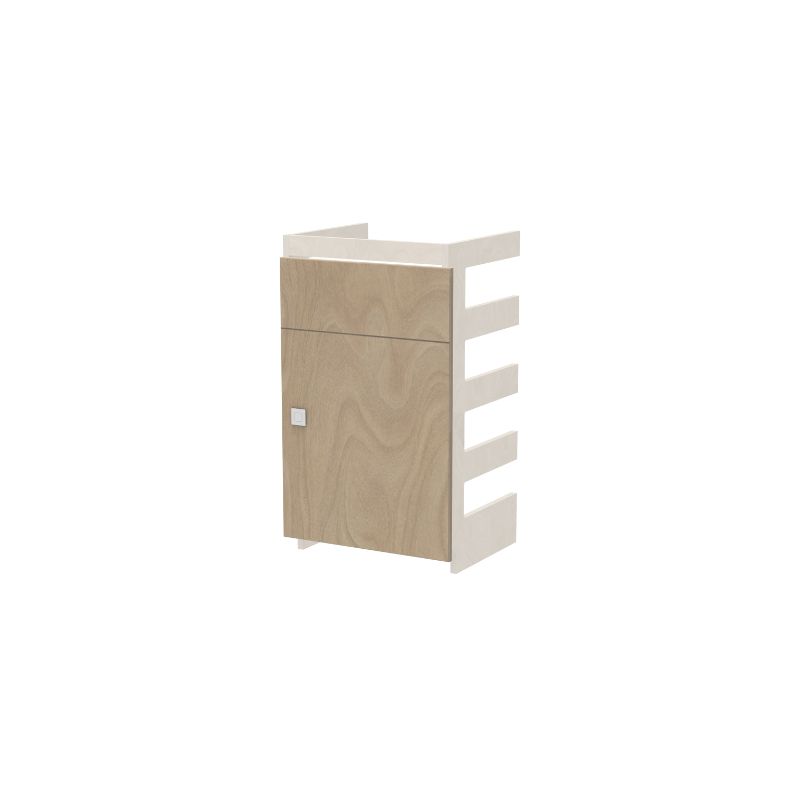

The 1st configuration (seen above) is only compatible with the LB101 low box for left-hand sliding door. To use the sliding door, simply place the LB103 central pedestal to the right of the LB101 module. Without these 2 base pedestals, it is not possible to fit the door in question.

The 2nd configuration (seen above) is only valid with the LB102 bottom pedestal for right-hand sliding doors. To use the sliding door, simply place the LB103 central bottom pedestal to the left of the LB102 module.

Without this door front (P5), the LB101 and LB102 base units cannot have a sliding door.

Compatibility of sliding door front 1/4

The door front (P5) is essential in the following configurations:

• lB101 base unit for left-hand sliding door + 1/4 sliding door front (P5) + 3/4 left-hand sliding door front (P4) + LB103 central base unit + central fixed door front (P6)
• lB103 central pedestal + central fixed door front (P6) + LB102 right-hand sliding door pedestal + 1/4 sliding door front (P5) + 3/4 right-hand sliding door front (P12)
• base unit for left-hand sliding door LB101 + 1/4 sliding door front (P5) + 3/4 left-hand sliding door front (P4) + central base unit LB103 + central fixed door front (P6) + base unit for right-hand sliding door LB102 + 1/4 sliding door front (P5) + 3/4 right-hand sliding door front (P12)

The door front (P5) cannot be installed on its own; it must be combined with the door front (P4) or (P12).

Technical characteristics of the 1/4" sliding door front

• Dimensions (WxHxD): 000x160x15 mm.
• Material: HPL laminated birch plywood.
• Thickness: 15 mm.
• Compatible with base units: LB101; LB102; LB103.
• Compatible with door fronts: (P4) 3/4; (P12) 3/4.
• Note: the 1/4 (P5) sliding door front must always be assembled with the 3/4 (P4) or 3/4 (P12) sliding door front.
• Compatible with shelves: (ET1).
• Screws supplied.
• Assembly instructions supplied.
