Van panoramic rooflight: let the light in without sacrificing insulation

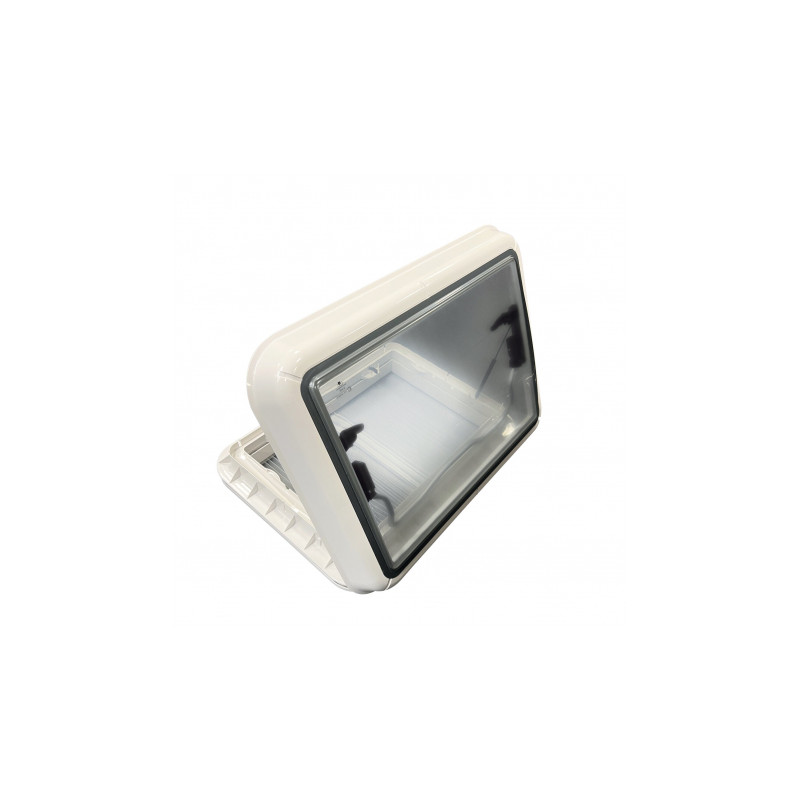

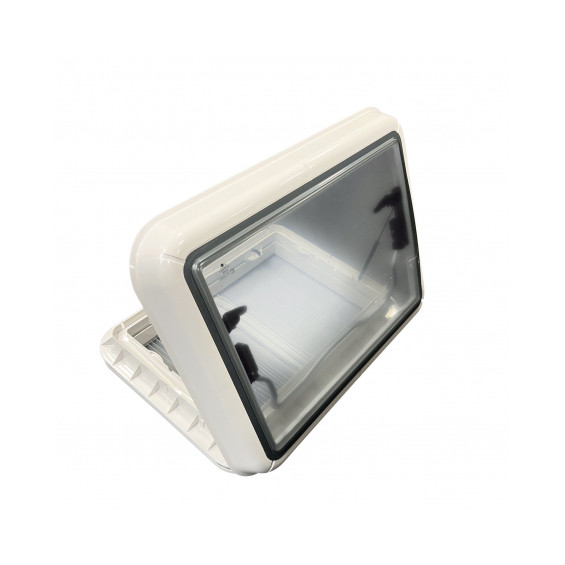

Fitting out a van also means choosing how to live on board. Stifling heat in summer, condensation building up at night, darkness under an otherwise bright sky… these are all discomforts that the Climatherm Pro Luxe Panoramic Rooflight by Conversion Van solves with a single piece of equipment. Thanks to its UV-resistant double-thickness transparent acrylic glazing and its permanent ventilation of 150 cm², your cab remains cool, bright and airy throughout the day — even with the window closed. The UV-treated ASA plastic frame ensures outstanding durability against harsh weather and temperature fluctuations, making it a solid choice for vanlifers who travel in all conditions.

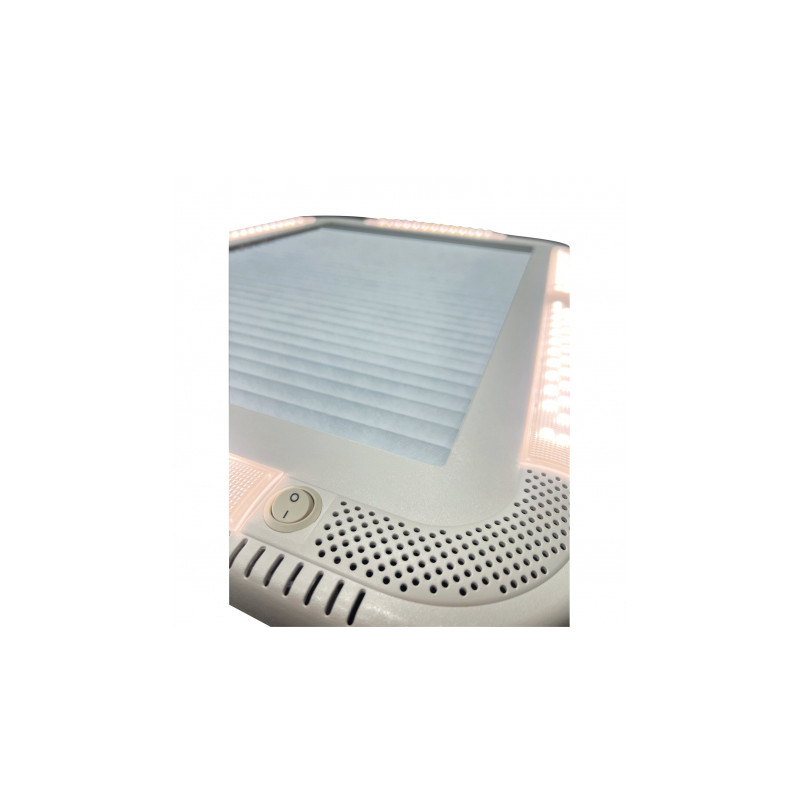

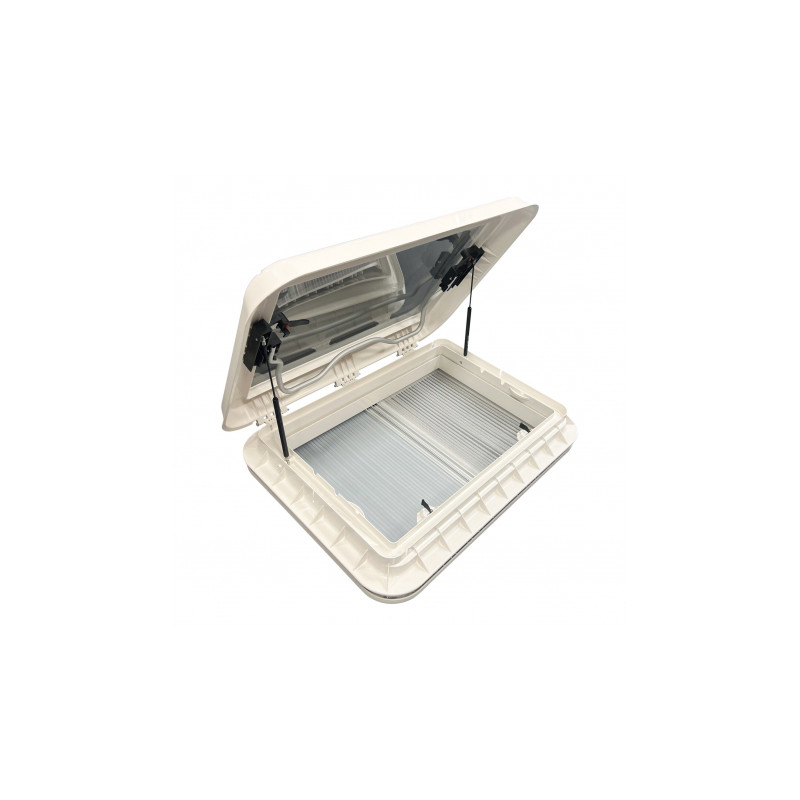

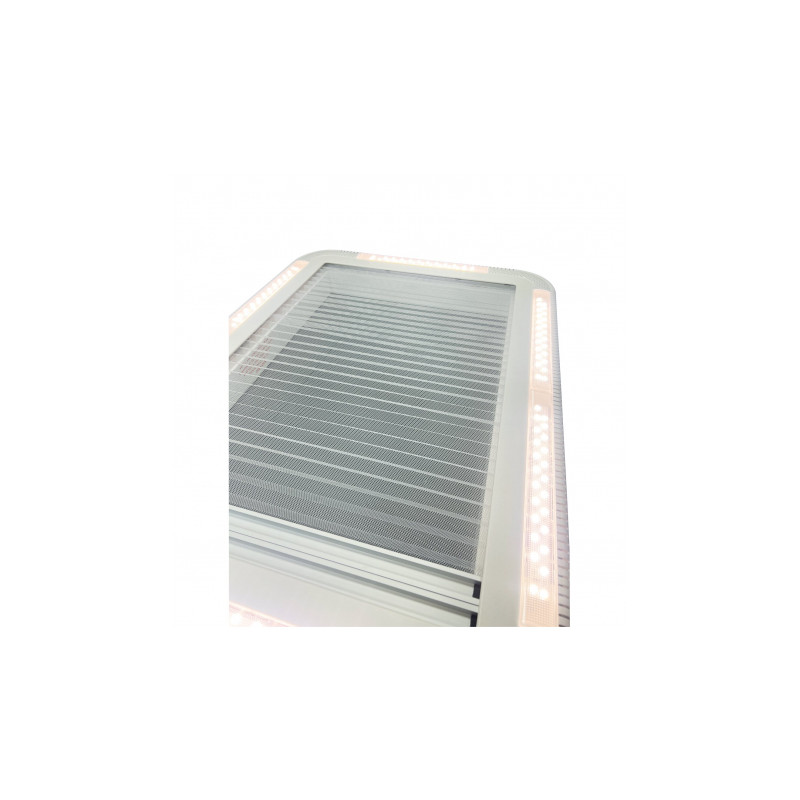

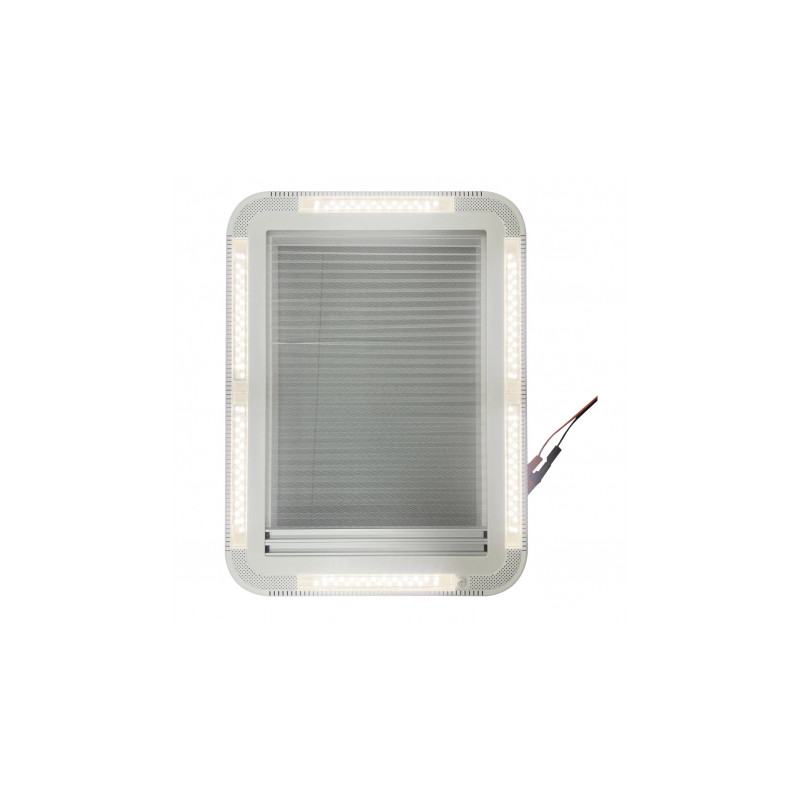

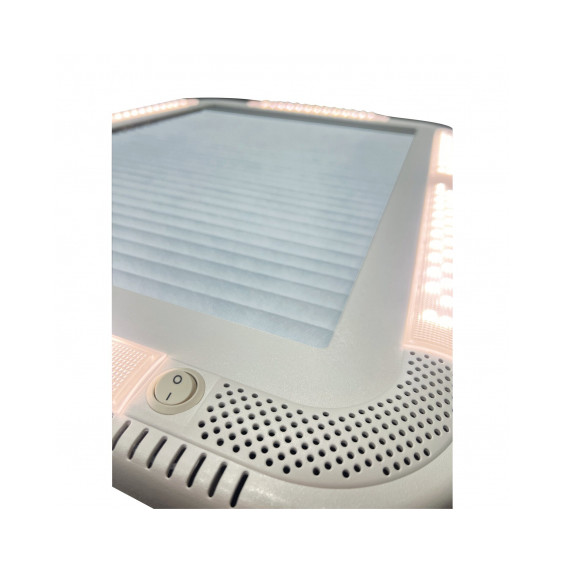

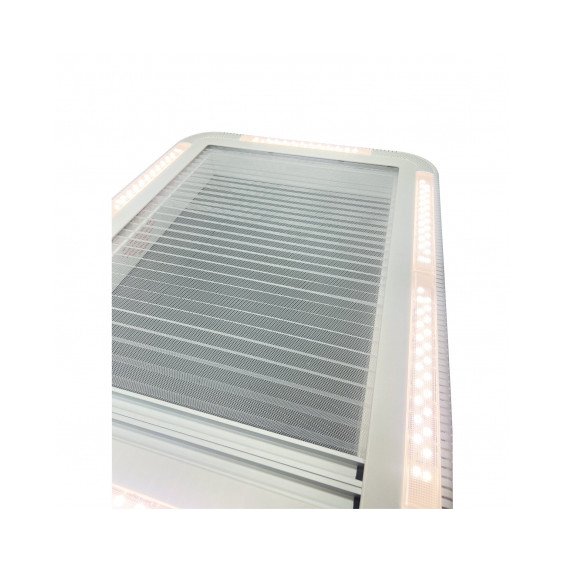

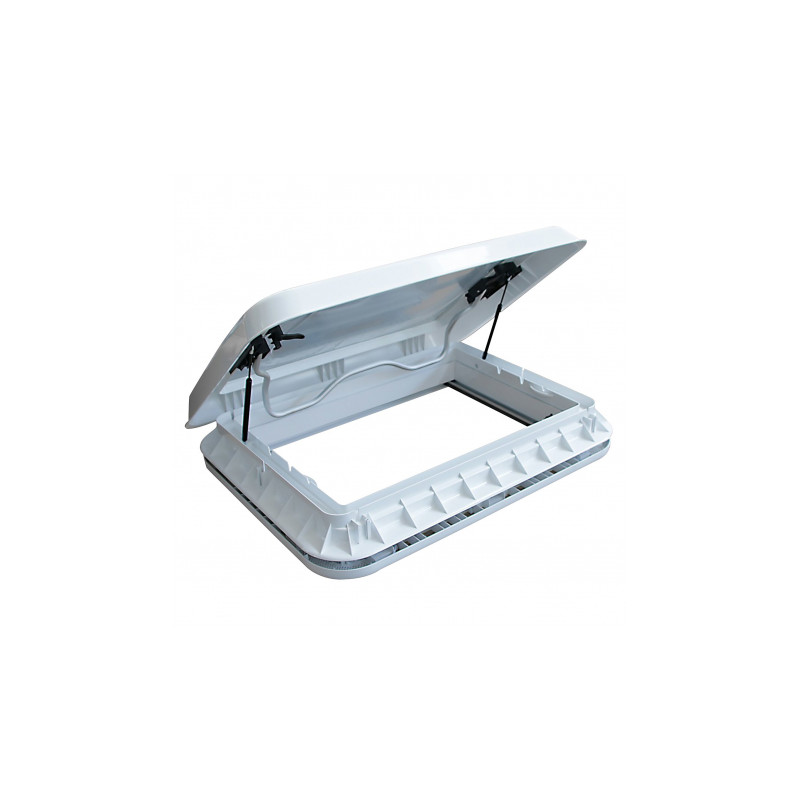

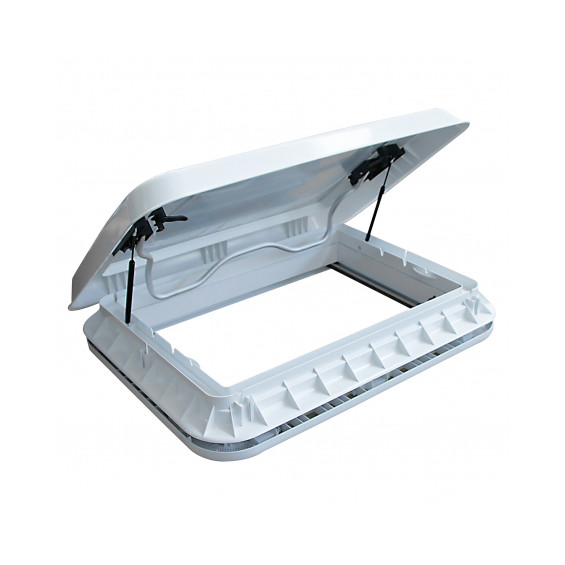

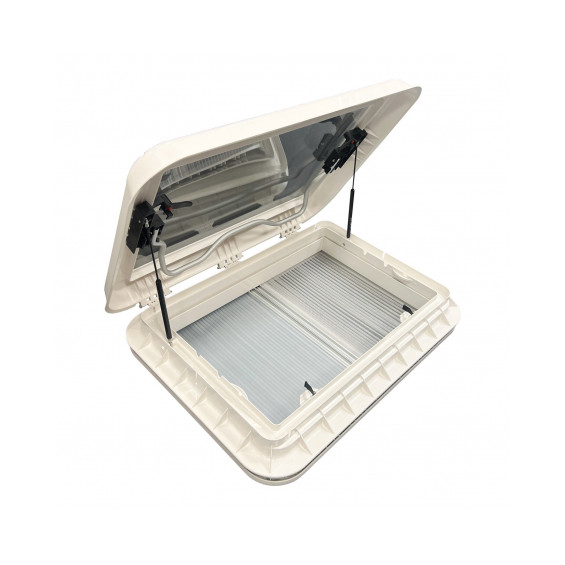

The integrated gas strut allows progressive opening up to 60° across 5 positions, giving you precise control over airflow and natural light. The double-lip seals and anti-infiltration design guarantee enhanced weatherproofing, even in rain. The roll-up blackout blind gives you complete darkness for a restful sleep, while the magnetic mosquito net protects you from insects on warm nights. The integrated LED lighting adds a warm ambiance on board without complex additional wiring. Compatible with most converted van roofs for a 700 × 500 mm cut-out, this panoramic rooflight integrates discreetly thanks to its flush white profile and clean design. To complete your roof build, also discover our Climatherm Pro 40x40 Rooflight for additional ventilation.

How to install the Climatherm Pro Luxe Panoramic Rooflight?

Installation requires marking and cutting an opening of 700 × 502 mm (rounded corners R15) in the vehicle roof (compatible thickness: 25 to 60 mm). Treat against rust with Frameto then apply an assembly sealant into the dedicated groove on the outer frame, then fix the frame to the panel using the supplied PA-4×18 screws. The inner frame is secured with PA-4×12 screws, and the clamping plate with PA-4×45 screws. Connect the LED power lead to your 12V circuit. Allow approximately 1h30 for the full installation. You will need a sealant gun, a jigsaw and a Phillips screwdriver. A suitable weatherproof bonding sealant is recommended to perfect the seal around the perimeter.

Technical specifications of the Climatherm Pro Luxe Panoramic Rooflight

• Brand: Conversion Van (Galaxy)
• External dimensions: 818 × 617 mm
• Cut-out dimensions: 700 × 502 mm (R15 corners)
• Compatible roof thickness: 25 to 60 mm
• Roof protrusion: 90 mm
• Max opening angle: 60° (5 positions)
• Opening type: Lever with gas strut
• Frame material: ASA plastic (UV-resistant)
• Inner frame material: Plastic
• Glazing: Transparent double acrylic glazing
• Permanent ventilation: 150 cm²

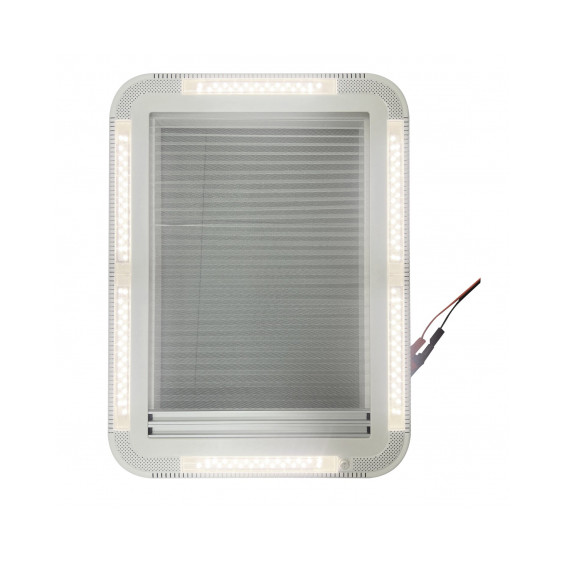

• Lighting: Integrated LED
• Mosquito net: Yes (magnetic roll-up)
• Blackout blind: Yes (roll-up)
• Frame colour: White
• Net weight: 8.06 kg
