An inspection hatch to access your technical equipment with a single gesture

You know this situation: a suspicious noise near the water pump or a fuse to check urgently, and you find yourself having to dismantle everything to access your installations. It's a waste of time and energy, not to mention the risk of damaging your interior layout. Those days are over. Discover the Osculati technical inspection hatch, the elegant and robust solution designed to simplify your life on the road. It transforms a constraint into a simple formality.

Specially designed to integrate perfectly into your converted van or campervan both indoors and outdoors, on a vertical wall or in a floor, this access hatch offers you simple and immediate opening to your technical areas: tanks, electrical circuits, valves or concealed storage spaces. Made from Luran S, a composite material with exceptional strength and UV-treated, it withstands impacts, temperature variations and repeated use. Its “flush” installation ensures a perfect and discreet finish, without any awkward protrusions.

The peripheral seal effectively protects your equipment from splashes and dust, ensuring their longevity. Thanks to its wide 180° opening, you benefit from maximum intervention comfort. Available in two dimensions, it adapts to all your needs to create reliable and durable access points, wherever you need them most.

To secure your installation, remember to also get an Osculati key lock (sold separately)!

Technical specifications of the white non-slip inspection hatch

• Product type: Recessed technical inspection hatch
• Body material: Luran S (high impact and UV resistance)
• Seal material: EPDM/Neoprene
• Colour: White
• Surface: Non-slip
• Opening: Integrated hinges for 180° opening
• Installation: Horizontal or vertical, flush mounting
• Optional accessory: Key lock kit to secure access

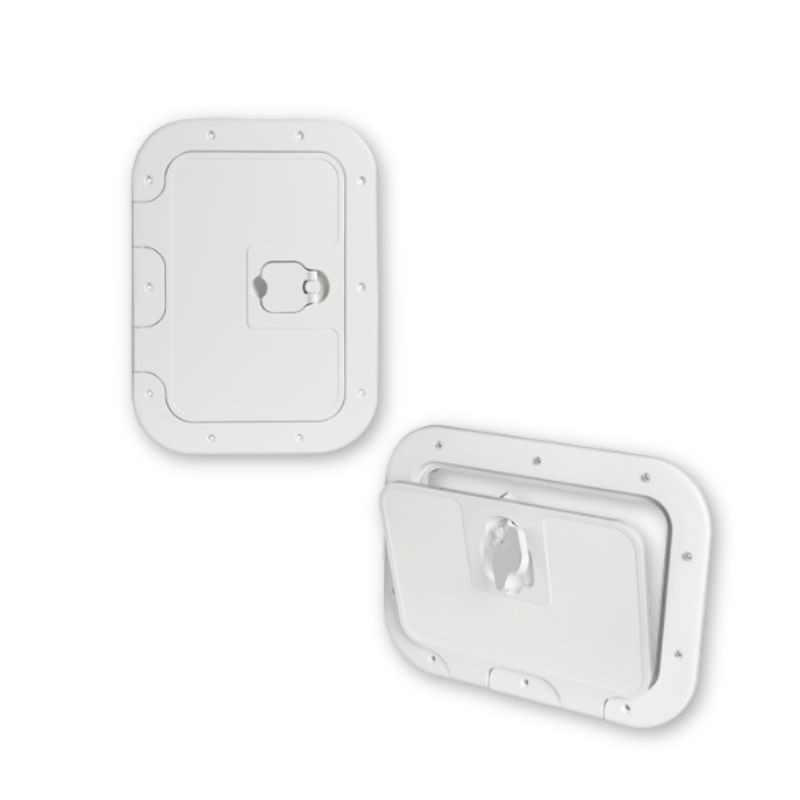

Access hatch dimensions Model S

• External dimensions: 280 x 380 mm
• Clear opening dimensions (usable opening): 180 x 280 mm

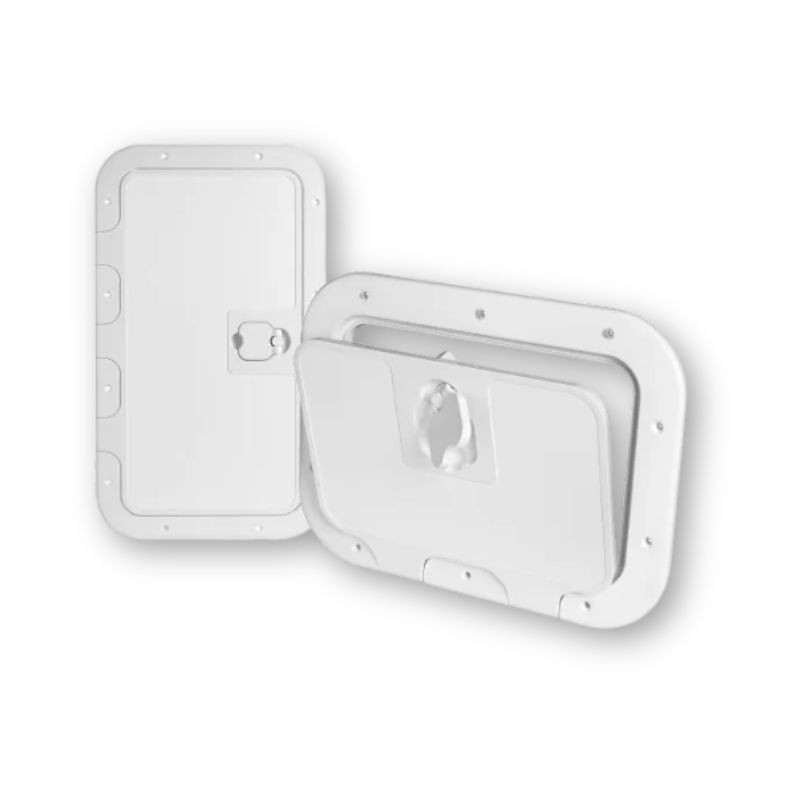

Access hatch dimensions Model M

• External dimensions: 350 x 600 mm
• Clear opening dimensions (usable opening): 250 x 500 mm
