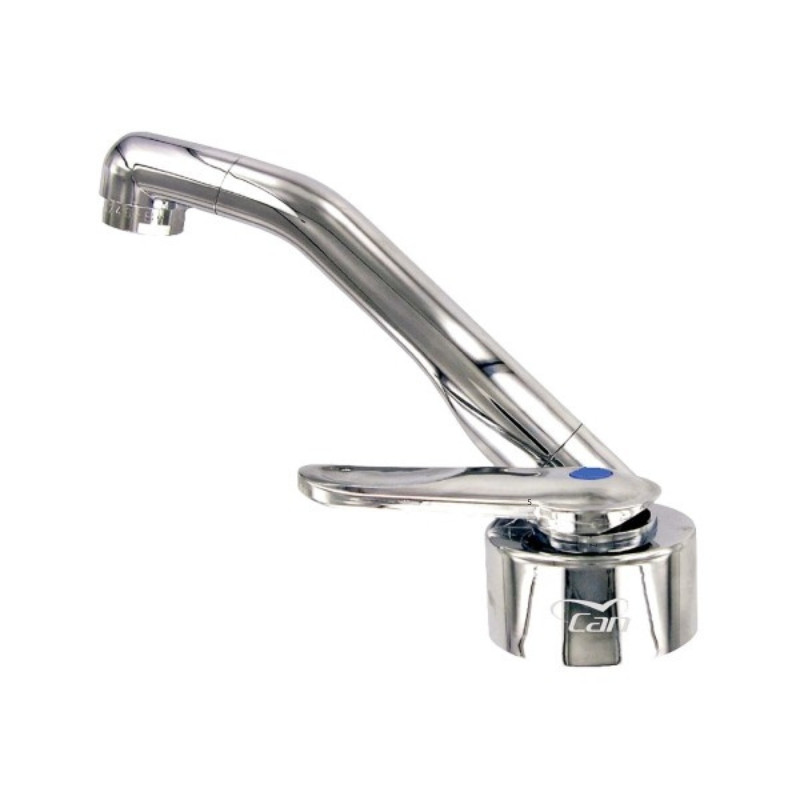

A compact and foldable tap, designed for installations without hot water on board

In a converted van or campervan, every detail of the water system matters. This cold water tap with integrated 12/24V switch is designed for simple and efficient installations: no hot water on board? No need to invest in a mixer tap. This model manages the water supply and directly controls your submersible pump from a single point, without complex wiring.

Its operation is simple: by opening the tap, you close the electrical circuit and the pump switches on automatically. By closing it, the pump stops. One wire on the positive of the power supply, one wire on the positive of the pump — that's all. No additional switch required.

In terms of bulk, it is foldable, which is a real advantage in compact spaces. Its 33 mm mounting diameter makes it compatible with standard hob/sink combinations (Dometic, CAN, Carbest…) as well as any worktop drilled to the right dimensions. The connection to the water supply is made via a barbed fitting for 10 mm internal diameter flexible hose — simply slide the hose on and tighten a clip.

Do you also have hot water on board? This tap is also available as a hot/cold mixer tap to manage both supplies from a single spout.

How to install this tap on your water system?

Installation is carried out in two distinct stages: the hydraulic connection and the electrical wiring.

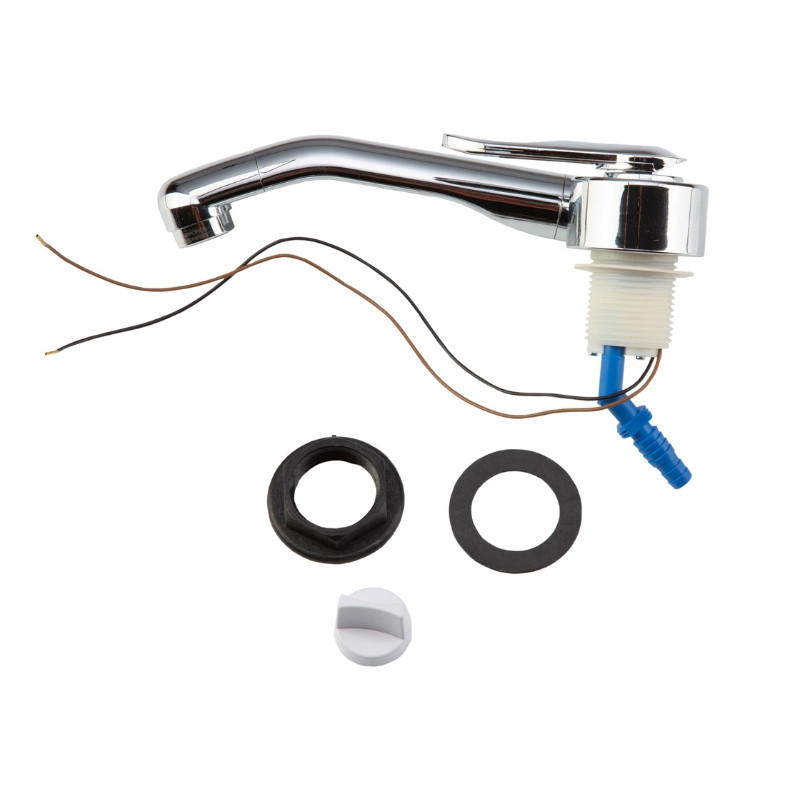

Water side: the ø 10 mm barbed fitting slots directly into your flexible drinking water hose. Secure the connection with a hose clip to prevent any leaks.

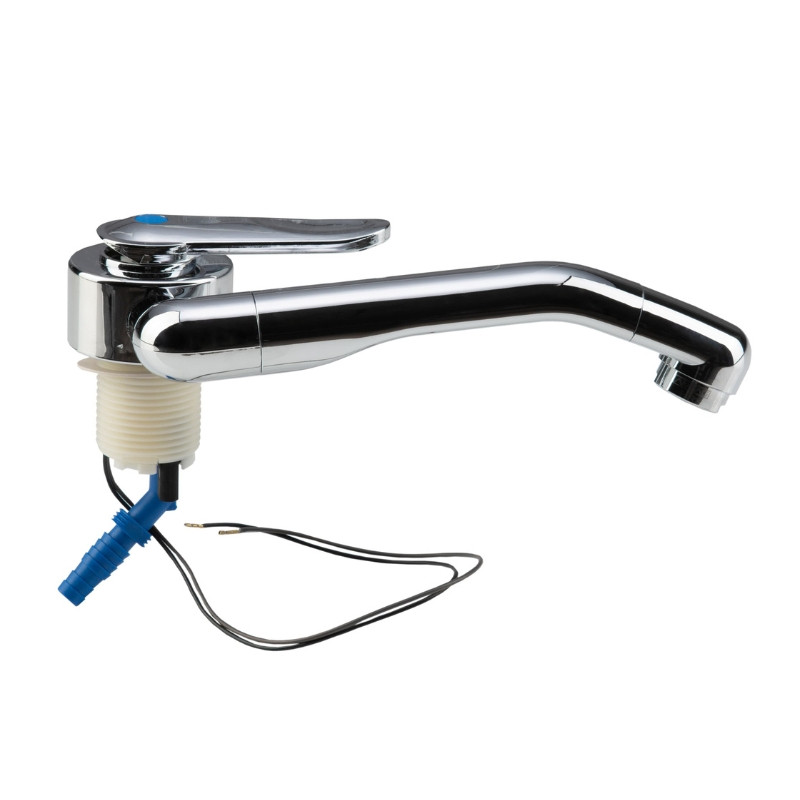

Electrical side: connect one wire to the positive (+) of your 12V power supply and the second wire to the positive (+) of your submersible pump. The tap then acts as a switch: open = pump running, closed = pump off.

For mounting, drill a 33 mm diameter hole in your worktop or combined sink. The 35 mm thread allows for a solid installation with a locknut.

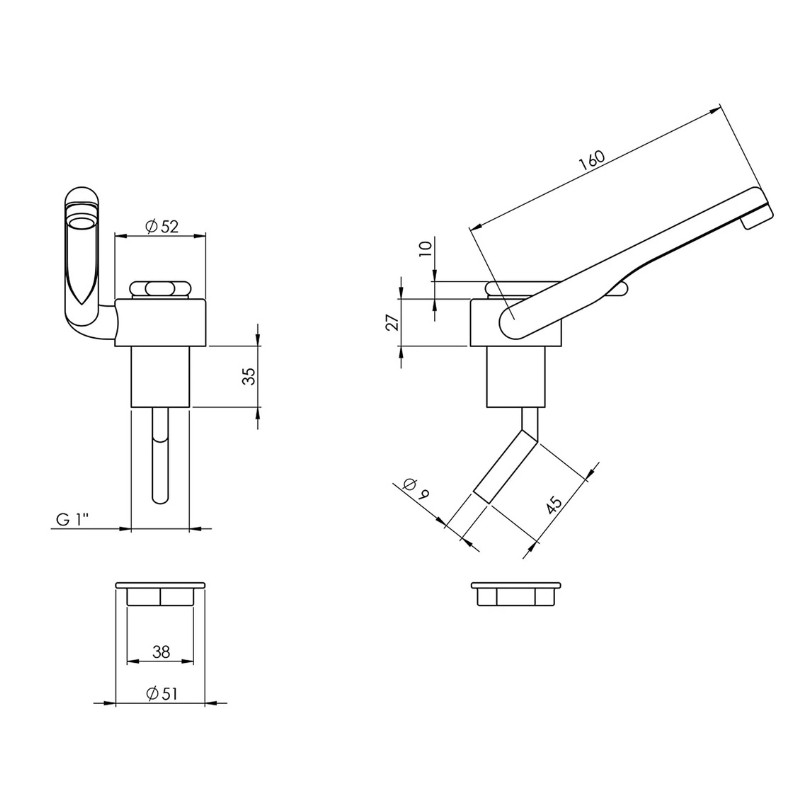

Technical specifications

• Type: cold water tap with integrated switch
• Voltage: 12/24 V
• Material: chrome-plated ABS plastic
• Spout: foldable
• Length: 145 mm
• Width: 85 mm
• Height: 40 to 130 mm (spout folded / unfolded)
• Mounting diameter: ø 33 mm
• Thread length: 35 mm
• Water connection: barbed fitting ø 10 mm (flexible hose)
• Weight: 185 g
