CARBEST 180 mm solar panel side mounting kit: extra support against wind resistance while driving

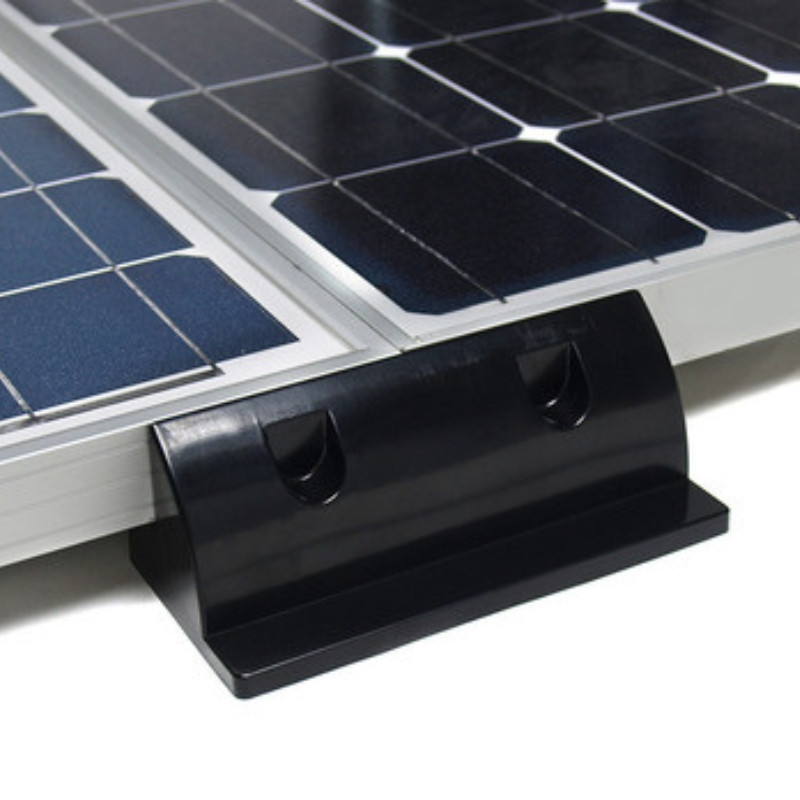

A solar panel mounted across the roof, with its long side facing the direction of travel, is subjected to constant aerodynamic pressure as soon as the van picks up speed. Over time, this wind resistance can weaken the mounting and allow water to seep in. The CARBEST solar panel side mounting kit reinforces precisely this weak point: two UV-resistant black ABS pieces screw onto the panel’s aluminium frame, then bond to the roof for a more secure hold in the direction of travel.

Its T-shaped design also lets you join two panels installed side by side, improving the overall stability of multi-panel solar installations. Discreet once fitted, this CARBEST spoiler works alongside existing corner mounts without adding significant weight or complexity: a few screws and some adhesive help the panel withstand long journeys and windy conditions.

Compact at 180 mm long and lightweight, it can be fitted during the initial installation or used to secure a solar panel already installed on your campervan.

How do you install the CARBEST 180 mm solar panel side mounting kit?

Installation combines screws and adhesive for an optimal hold:

• Attach the 2 brackets to the panel’s aluminium frame using suitable screws (not supplied)
• Thoroughly clean the bonding area on the roof
• Bond the spoilers to the roof with a suitable adhesive sealant, such as Sikaflex 552 AT, recommended for mounting solar panels
• Allow the adhesive to cure before driving

To route the cable into your electrical system, consider a CARBEST roof cable entry for a watertight connection.

Technical specifications of the CARBEST 180 mm solar panel side mounting kit

• Brand: CARBEST
• Material: UV-resistant black ABS
• Number of pieces: 2
• Length: 180 mm
• Overall height: 65 mm
• Clearance beneath panel: 30 mm
• Mounting: screws onto the panel’s aluminium frame + adhesive bonding to the roof
• Compatibility: rigid solar panels with an aluminium frame
