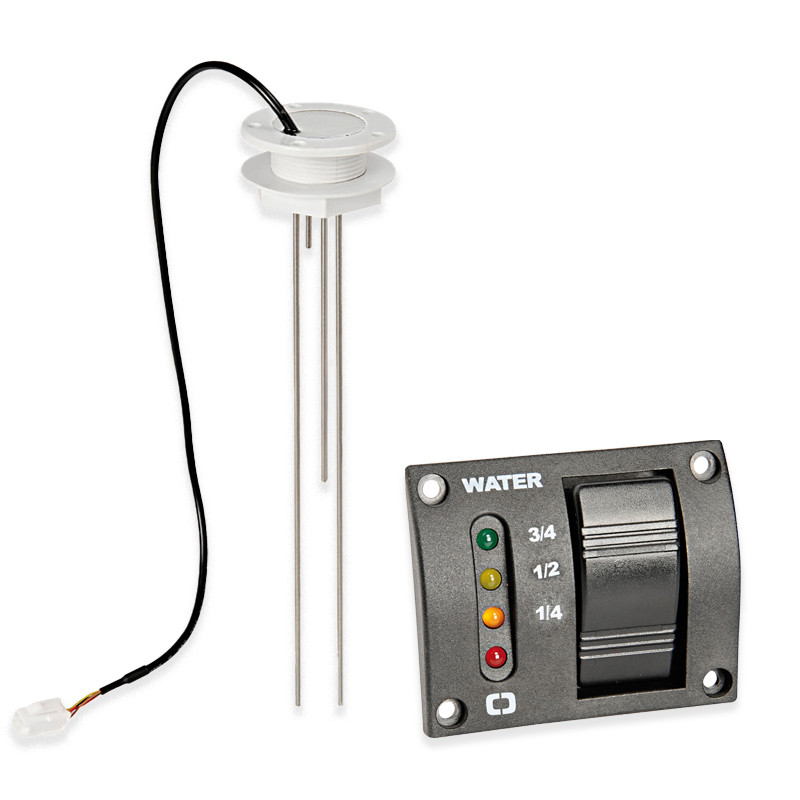

The ready-to-use measuring kit!

With this probe + level indicator set, make life easier for yourself! Immerse the probe in your waste water or fresh water tank, connect it to the indicator panel and you will easily know how much waste water or fresh water remains in your tank thanks to the 4 LEDs that make up the indicator. Completely "Plug and Play"!

Pack contents

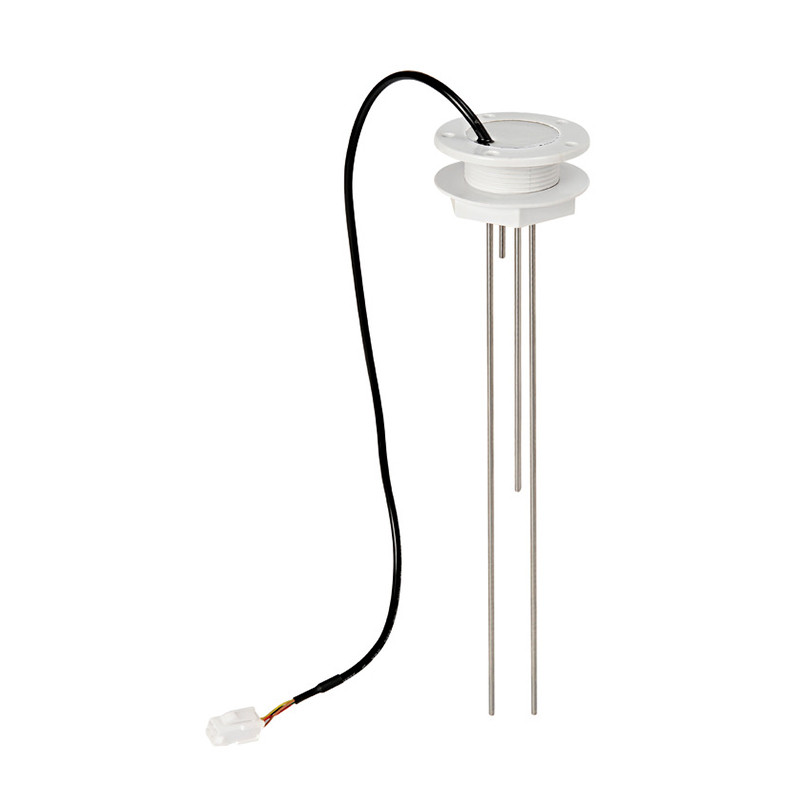

• Sensor for drinking water or grey water tank (compatible with all types of tanks)

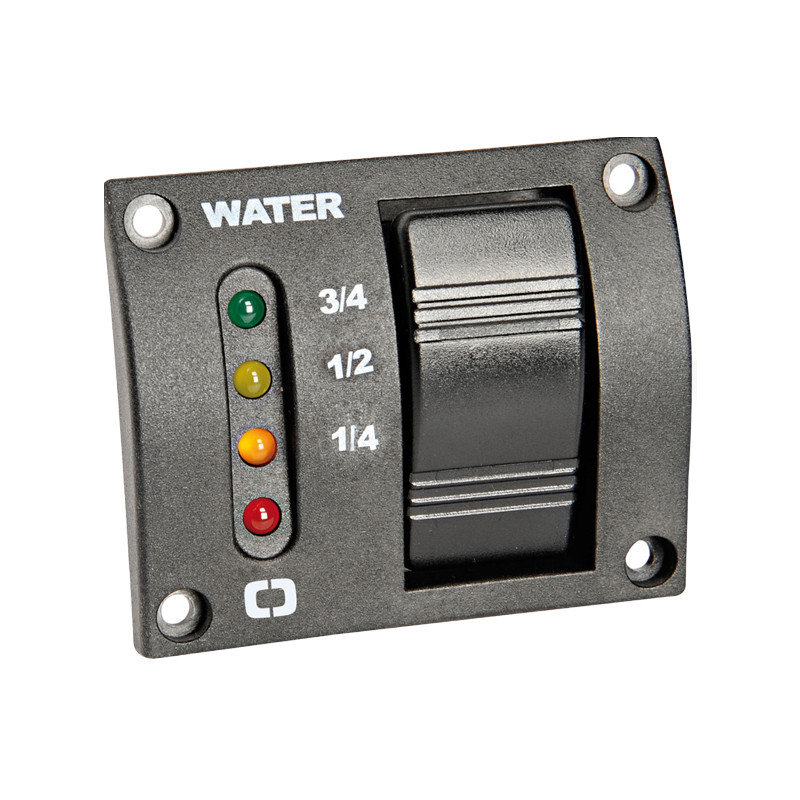

• Control panel with 4 LEDs and 1 OFF/Momentary button
• 4 m connection cable
• Probe - panel wiring
• Installation instructions

Advice from the Heode team

The waste water kit probe is optimal for a tank with a height of 54cm whilst the fresh water kit probe is ideal for a tank with a height of 45cm. However, it is possible to cleanly cut the 2 longest rods to adapt the probe to the height of your fresh water or waste water tank. It's quick and easy!

Technical specifications

Probe + waste water level indicator panel:

• Power supply: 12/24 V
• Panel dimensions (L x W): 75.20 x 62.5 mm
• Panel flush mounting depth: 33 mm
• Probe rod length: 260 mm
• Probe rod material: Stainless steel
• Probe flush mounting diameter: 42 mm
• Probe overall diameter: 285 mm
• 1 sealing gasket included

Probe + fresh water level indicator panel:

• Power supply: 12/24 V
• Panel dimensions (L x W): 75.20 x 62.5 mm
• Panel flush mounting depth: 33 mm
• Probe rod length: 300 mm
• Probe rod material: Stainless steel
• Probe flush mounting diameter: 42 mm
• Probe overall diameter: 330 mm
