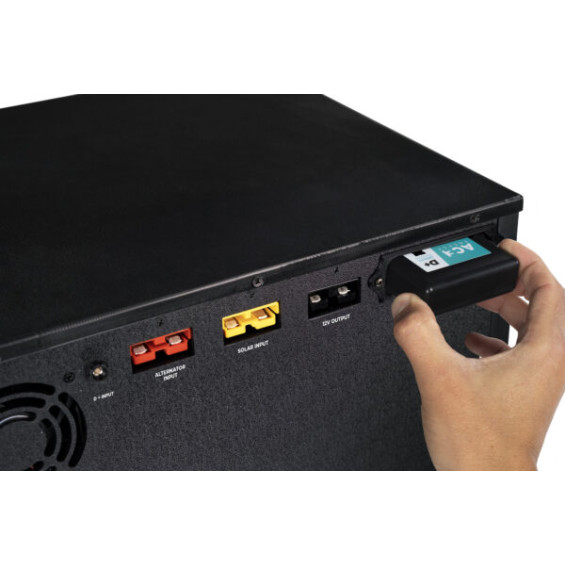

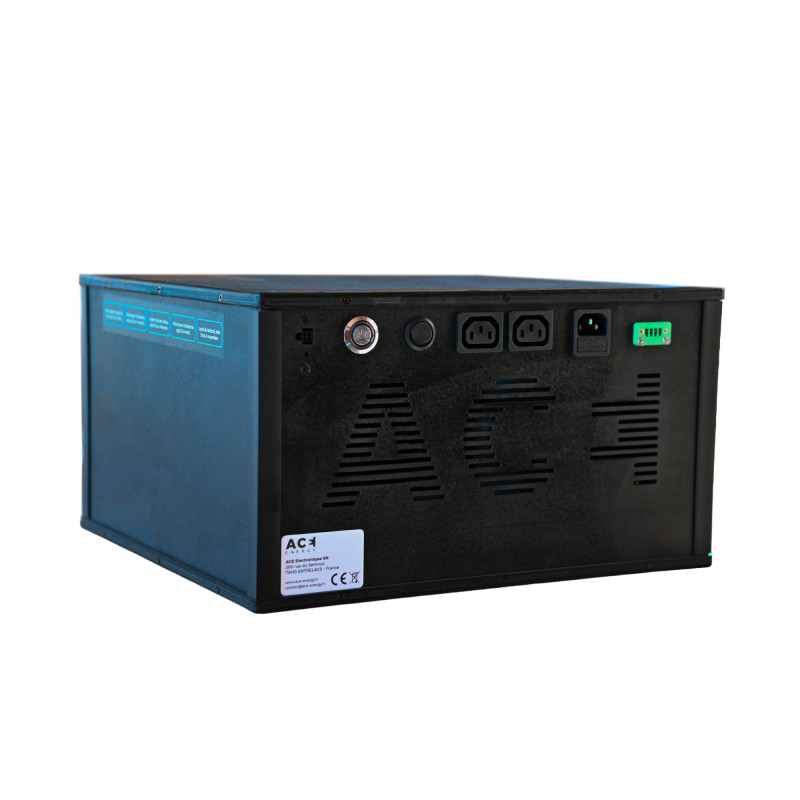

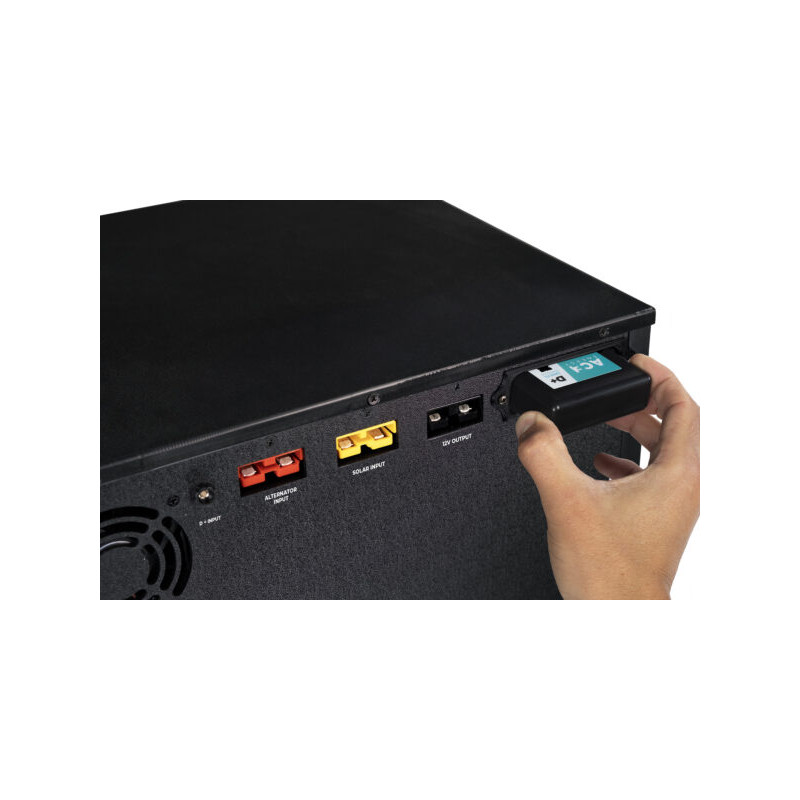

An all-in-one 120Ah energy system with a 1500W inverter for total electrical autonomy in a van

Want to avoid lengthy and technical electrical work? The Ace Energy E-Box energy centre with integrated LiFePO4 battery is the turnkey solution that transforms your vehicle into a truly autonomous home.

Specifically sized to fit under your passenger seat, this complete power unit intelligently manages all your energy sources without any technical effort on your part. Its integrated prioritisation board protects your devices by automatically switching to mains power when you are connected to the grid, thus preventing any unnecessary wear on your reserve.

Whether you want to use a hair dryer or charge your photography equipment, this robust ABS and HDPE station protects your components against impacts and extreme temperatures.

The little extra that makes all the difference? This portable power station is designed and assembled in France!

Technical specifications of the E-Box 120Ah

• Nominal voltage : 12.8 V.
• Nominal capacity : 120 Ah.
• Nominal power : 1530 Wh.
• Full battery voltage : 14.6 V.
• Internal resistance : ≤ 30 mΩ.
• Charge current : ≤ 100 A.
• Discharge current : 150 A (1500W model) or 200 A (2000W model).
• Peak current : 300 A (1500W model) or 400 A (2000W model).
• Lifespan : ≥ 6000 cycles at 50% DoD.
• Self-discharge : < 3 %.
• DC-DC charger (alternator) : Voltage from 12 to 16 V with a charge current of 50 to 70 A on a dedicated line.
• Automatic D+ detection : Available as an option.
• AC-DC charger (mains) : Voltage of 230-240 V / 50 Hz with a charge current of 20 A.
• Solar charger : Applicable voltage < 80 V with a charge current of 20 A.
• Maximum solar power : 290 W.
• Output voltage : 230-240 V / 50 Hz.
• Nominal power : 1500 W or 2000 W depending on the chosen model.
• Peak power : 3000 W (for the 1500W model) or 4000 W (for the 2000W model).
• Housing materials : ABS + HDPE.
• Dimensions : 350 x 370 x 210 mm.
• Weight : 25 kg.
• Temperature range : Operating temperature between -20°C and 60°C.
• Bluetooth : Version 4.2 integrated.
• Mobile app : Compatible with Android and iOS for monitoring charge level and battery status.
• Battery pack certifications : E57 10R06/02 0853*00.
• DC/DC 50A charger certification (R10) : E57 10R06/00011200.
• Inverter certification : E57 10R06/05057000.

Comparison of the E-Box 120Ah with the VanBox M100 and VanBox S100
