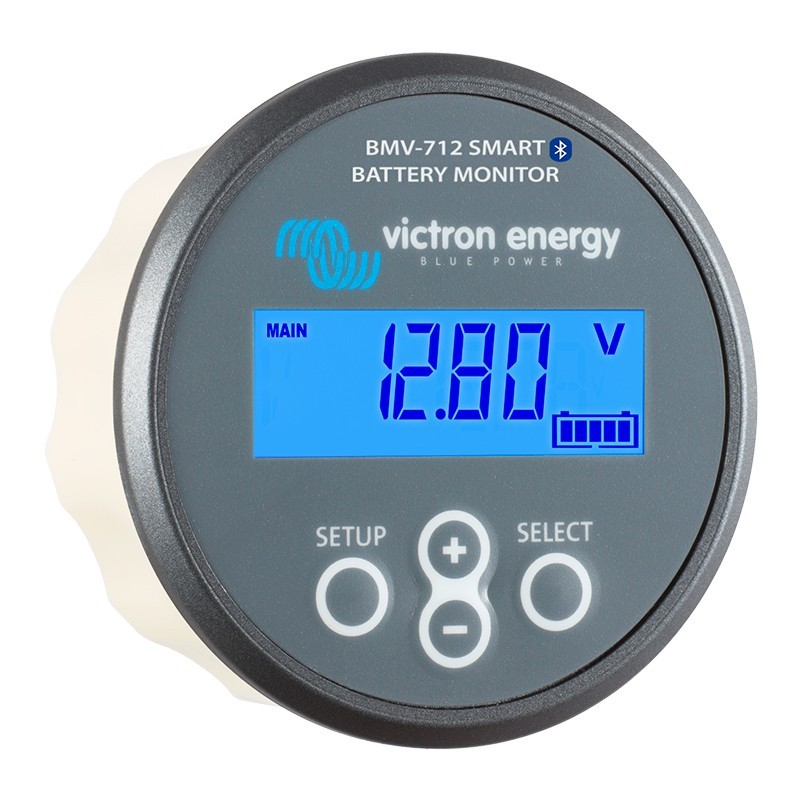

BMV 712 Smart Battery Monitor: Optimal and Intuitive Monitoring

Because running out of electricity shouldn't happen to anyone, Victron has developed this high-end monitor to control consumption and battery charge level. The BMV 712 Smart represents the quintessence of battery monitoring devices and allows you precise, real-time management of your battery system status thanks to its extended Bluetooth connectivity and smart features.

Key Features and Benefits

• Bluetooth connectivity: Access measurements and settings directly on your mobile device.
• Complete monitoring: Voltage, current, power, state of charge and more at a glance.
• Programmable alerts: Receive visual and audible alerts to prevent any risk related to critical battery conditions.
• Additional measurements for BMV-702/712: Additional input for measuring variables such as temperature or median voltages.

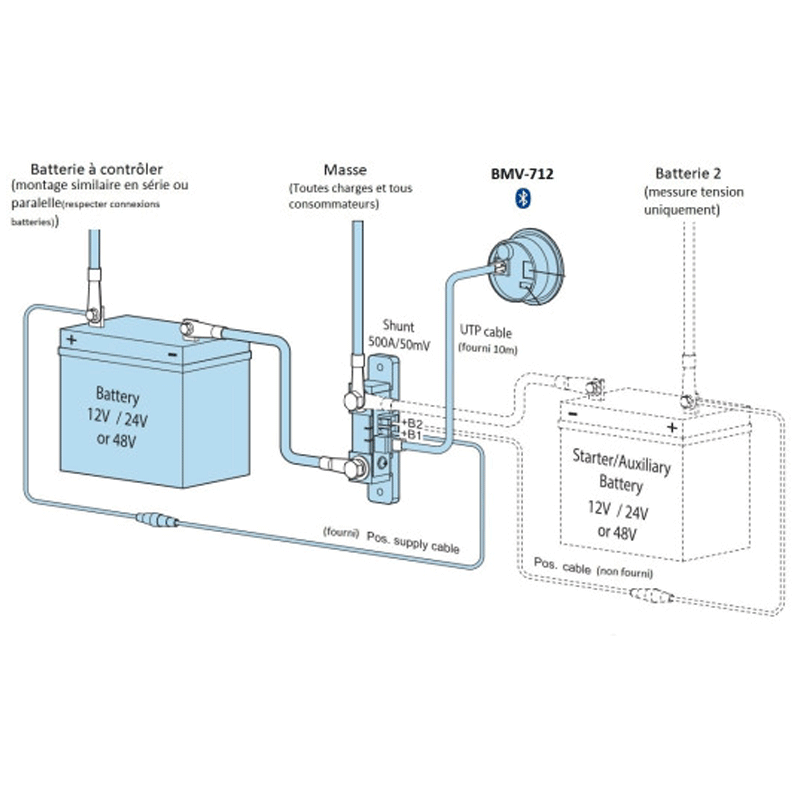

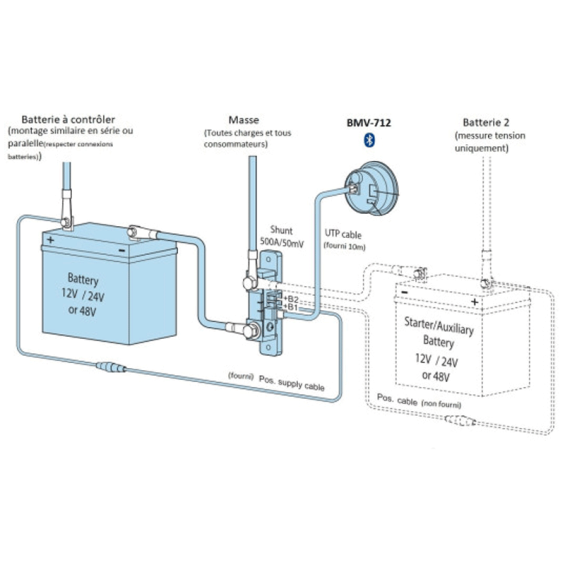

Easy Installation and Intuitive Use

Quick and easy to install, the Victron BMV 712 flush-mount battery monitor measures with flawless precision the electrical inputs and outputs in your battery alternator. It then evaluates the remaining battery percentage, based on the amp-hour consumption of your battery.

Find many other statistics thanks to this calculation method: input voltage, instantaneous consumption, charging power, remaining charging time, etc.

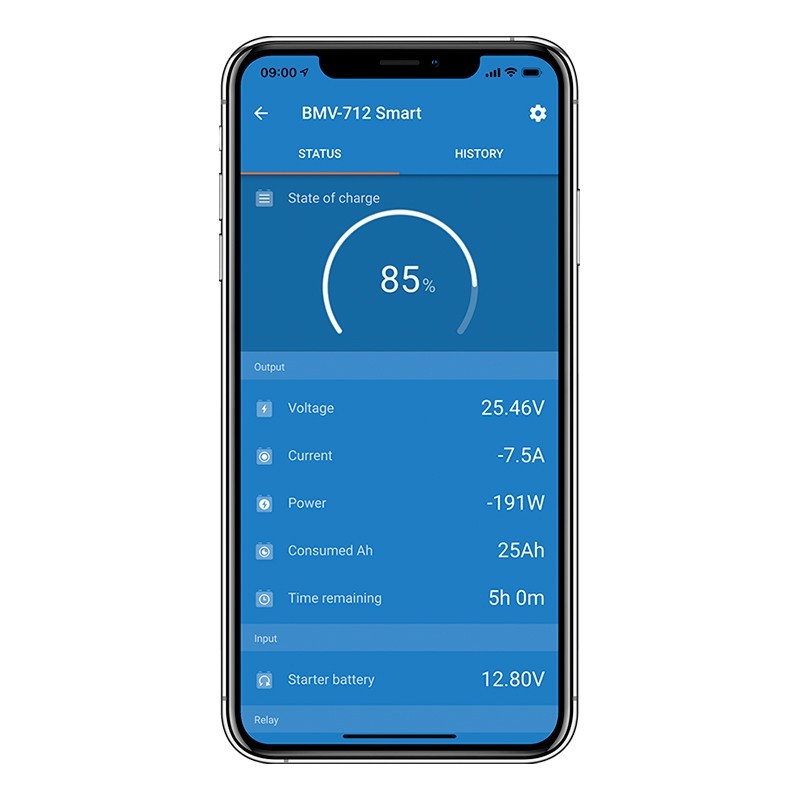

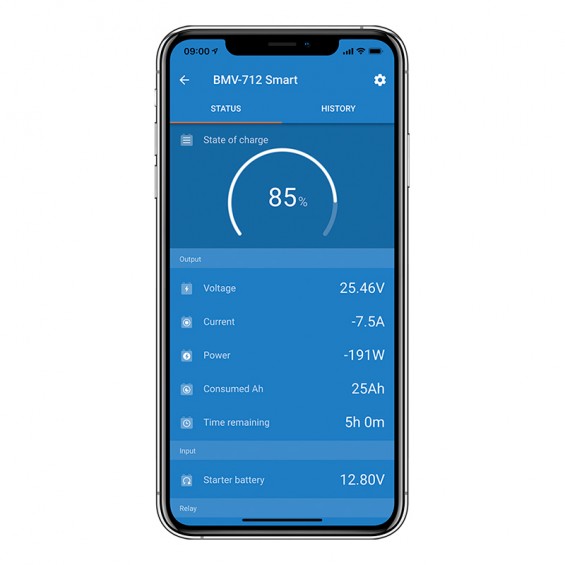

But where conventional monitors stop, Victron innovates! Indeed, take advantage of the VictronConnect interface to exploit all your data, via Bluetooth®, on your smartphone, tablet or computer. Connect your entire electrical installation (subject to compatible devices) to your screens to monitor your consumption and charging statistics in real time!

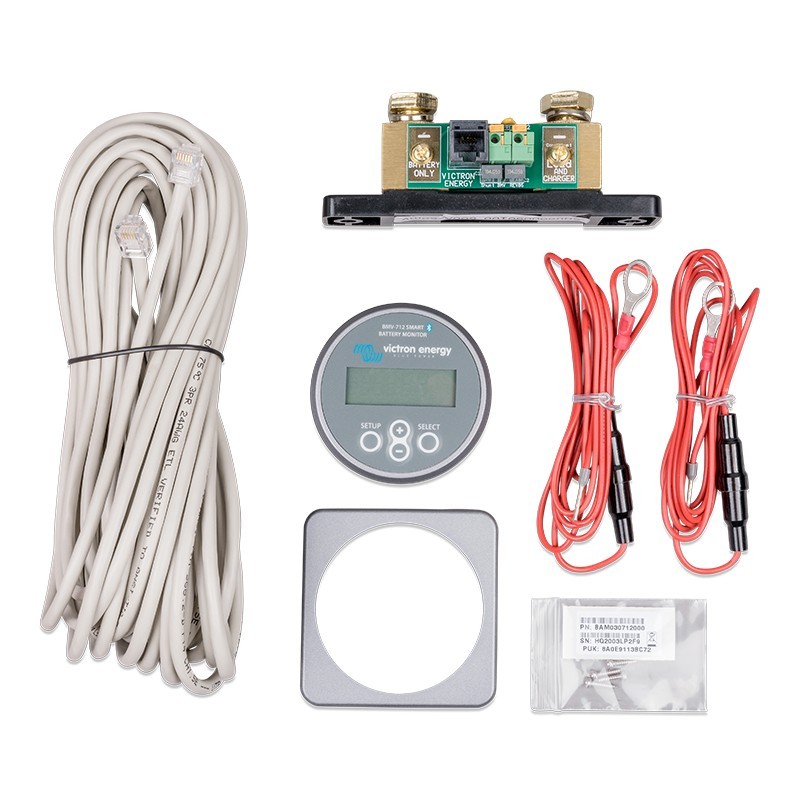

Supplied as a kit with cable and shunt.

Ideal for protecting your lithium battery and ensuring extended lifespan.

Technical specifications

• Supply voltage range: 6.5 - 95V
• Battery capacity (Ah): 1 - 9999 Ah
• Operating temperature range: -40°C to +50°C
• Temperature measurement range: -20°C to +50°C
• VE.Direct communication port: Yes
• Relay: 60V/1A.
• Front frame: 69 x 69 mm (2.7 x 2.7 inches)
• Shunt connections: M10

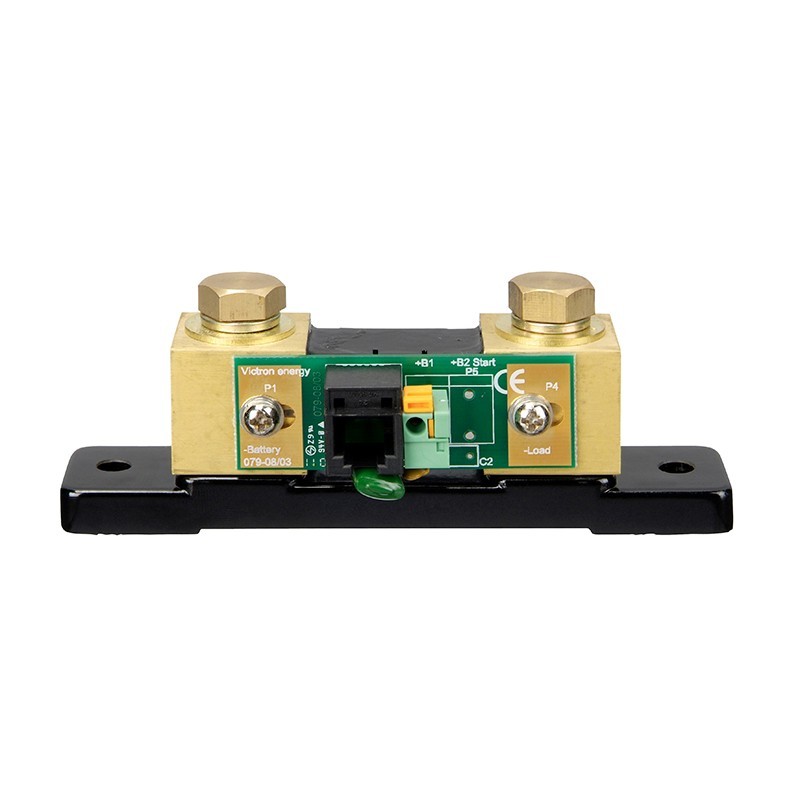

• Shunt supplied: 500A / 50 mV
• Connection cable supplied: 10m length
• Power cable supplied
