Because running out of electricity shouldn't happen to anyone, Victron has developed this high-precision battery monitor to control consumption and battery charge level from a screen.

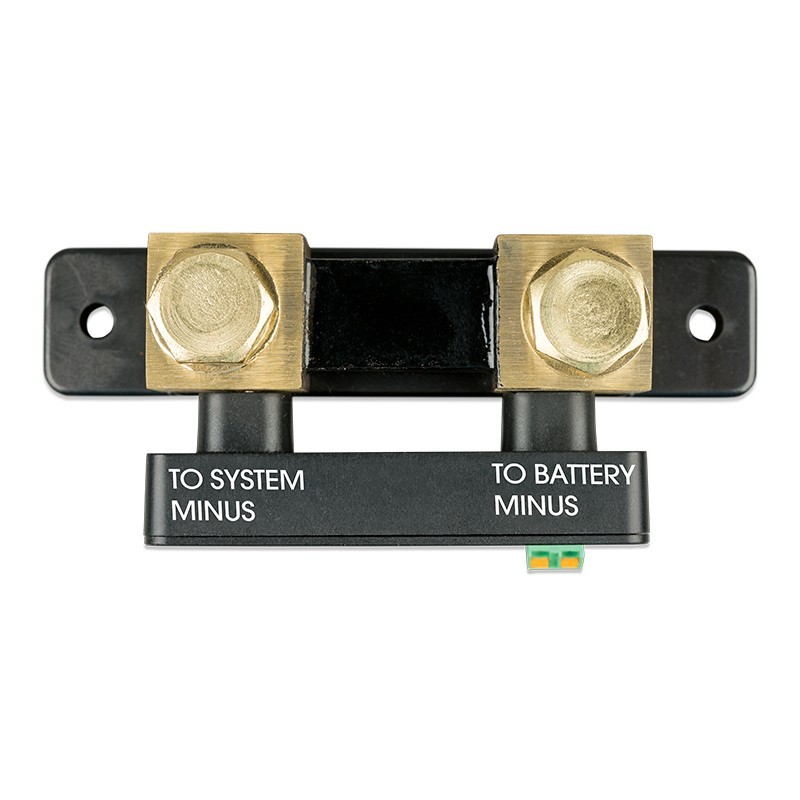

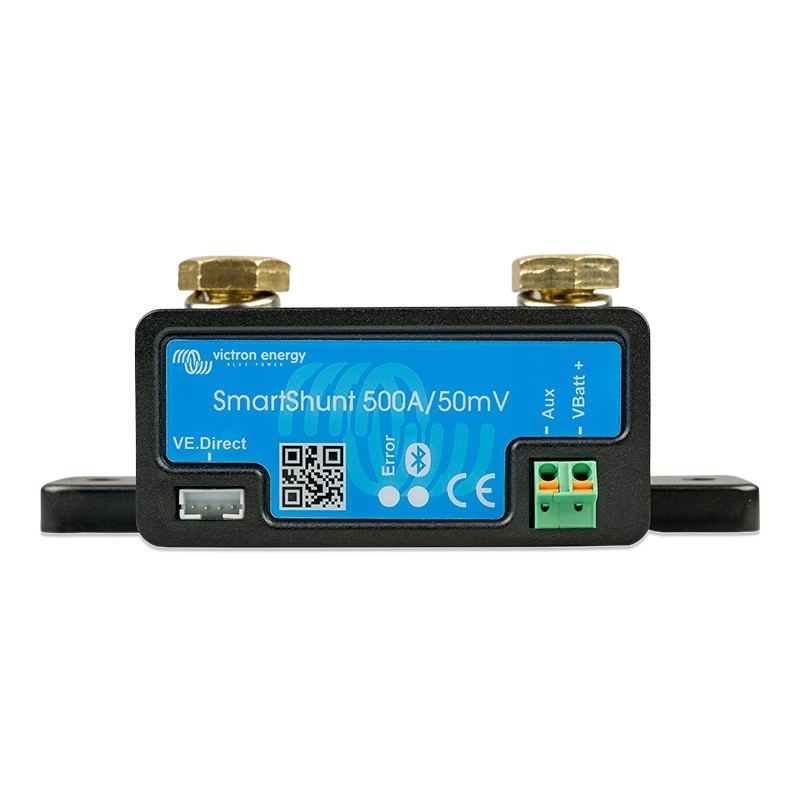

Quick and easy to install, the SmartShunt 500A/50mV measures with flawless precision the electrical inputs and outputs in your battery's alternator. It then assesses the remaining battery percentage, based on the ampere-hour consumption of your battery.

Thanks to this calculation method, you can find many other statistics: input voltage, instantaneous consumption, charging power, remaining charging time, etc.

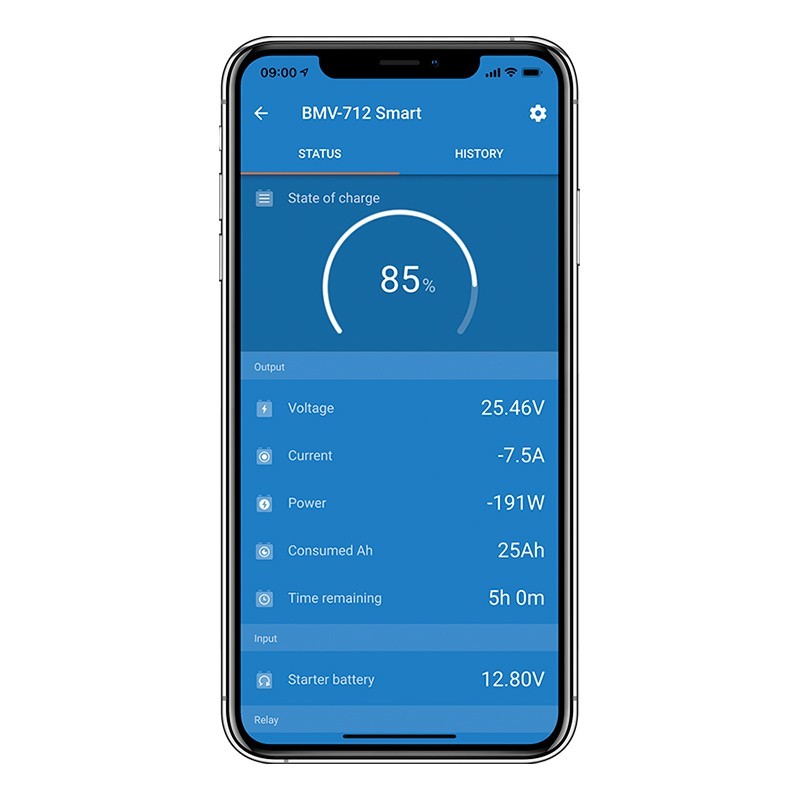

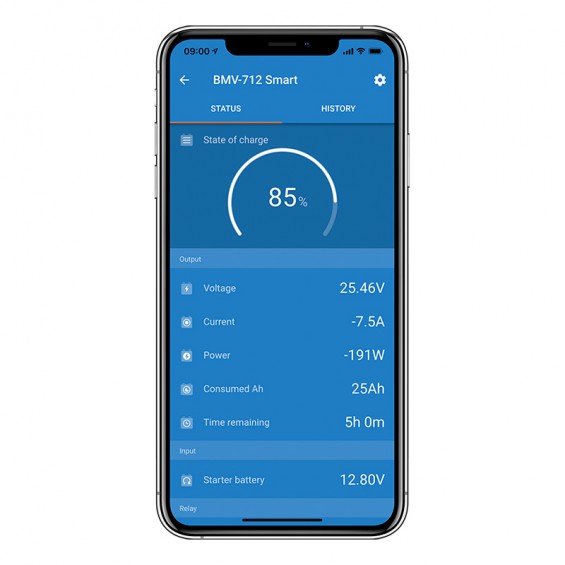

But where conventional monitors require the installation of a control screen, this SmartShunt has the particularity of being 100% Bluetooth®! Download the VictronConnect app to access all your data on your smartphone, tablet or computer. Connect your entire electrical installation (subject to compatible devices) to your screens to monitor your consumption and charging statistics in real time!

Supplied as a kit with power cable and fuse.

Technical specifications:

• Supply voltage range: 6.5 - 95V
• Battery capacity (Ah): 1 - 9999 Ah
• Input voltage range (auxiliary battery): 6.5 - 70VDC
• Operating temperature range: -40°C to +50°C
• Temperature measurement range: -20°C to +50°C
• VE.Direct communication port: Yes
• Bluetooth® technology
• Dimensions: 46 x 120 x 54mm
• IP21 protection
• Power cable and fuse supplied
