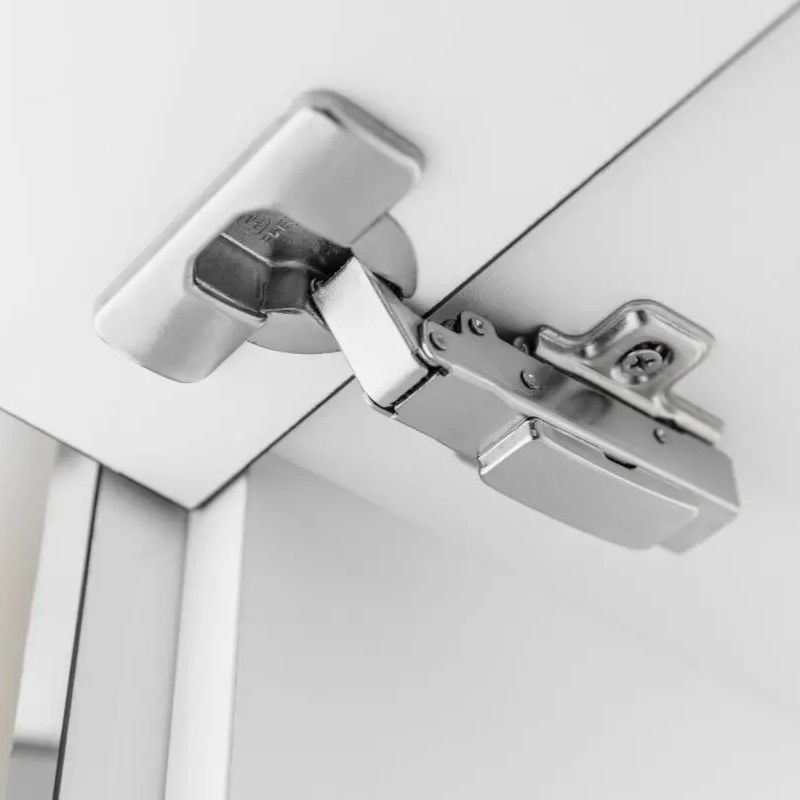

A hinge that brings fluidity and discretion to your fitouts

Discover an innovative hinge to optimise the layout and comfort of your converted van. Say goodbye to doors slamming on bends!

Thanks to its sleek design and integrated damping mechanism, this hinge guarantees a most pleasant user experience and harmonious integration into your furniture.

Perfectly suited for doors completely covering the cabinet edge, it ensures remarkable stability and efficiency, while contributing to space optimisation and weight reduction of your vehicle.

This hinge is particularly well suited to overhead storage and compartments where neat aesthetics are priorities. Its nickel-plated steel construction gives it exceptional robustness and excellent corrosion resistance, essential assets when on the road.

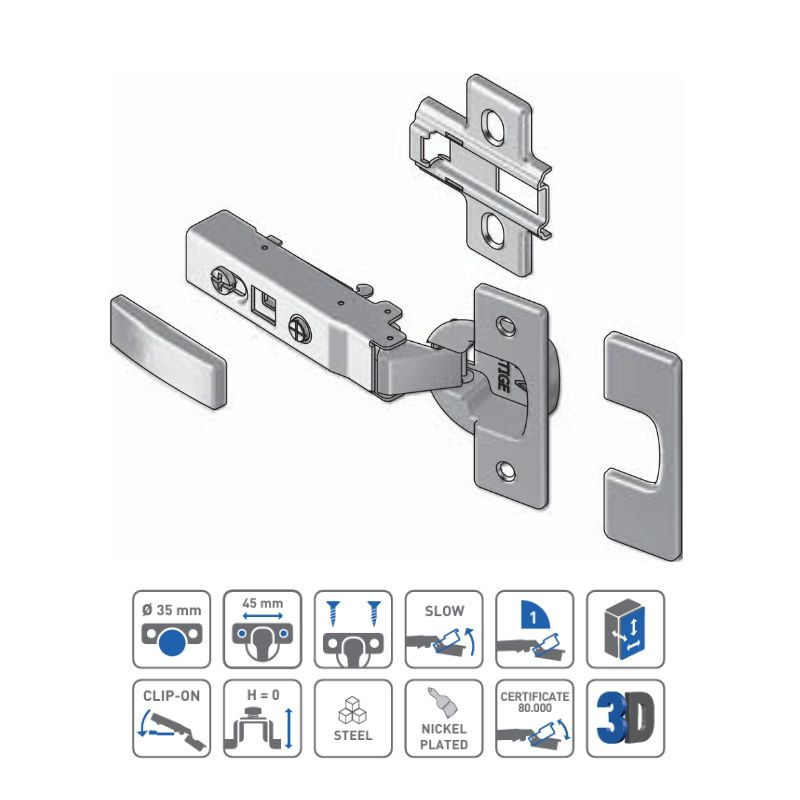

Installation is made easier by CLIP-ON technology and three-axis adjustments, allowing precise positioning and perfect adaptation to various configurations. Caps for the cup and arm are included, providing a neat and aesthetic finish once the hinge is mounted.

To make life easier, screws are included. You can choose between a version with 4 self-tapping wood screws or two self-tapping wood screws and two Euro screws for pre-drilled holes.

Technical specifications of the hydraulic hinge

• Hinge type: Hydraulic semi-recessed hinge for doors completely covering the cabinet edge
• Load capacity: Designed for standard and durable use
• Opening angle: 102°
• Material: Steel
• Colour: Nickel-plated

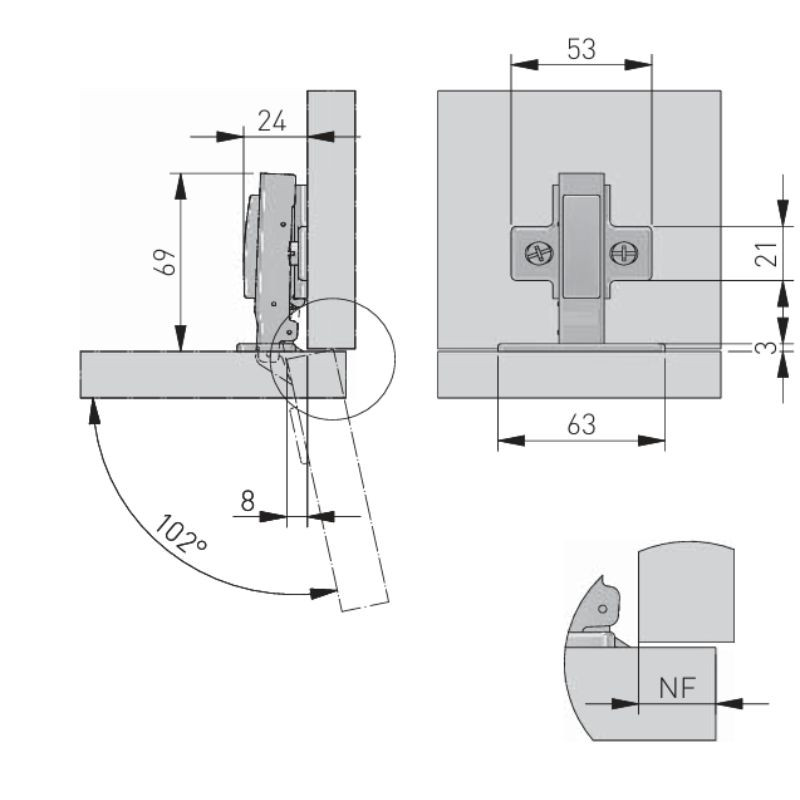

• Dimensions (LxWxD):
  • Cup diameter: 35 mm
  • Distance from cup to edge: 45 mm
  • Overall dimensions: 53 mm (width) x 63 mm (length) x 24 mm (height of main body)
• Installation: using the drilling template sold separately
• Assembly: baseplate on the body and cup on the front, CLIP-ON system
• Mechanism: Integrated damping (silent and soft closing), hydraulic
• Spring force: Standard (integrated into the hydraulic mechanism)
• Adjustments: 3D adjustment (on three planes)

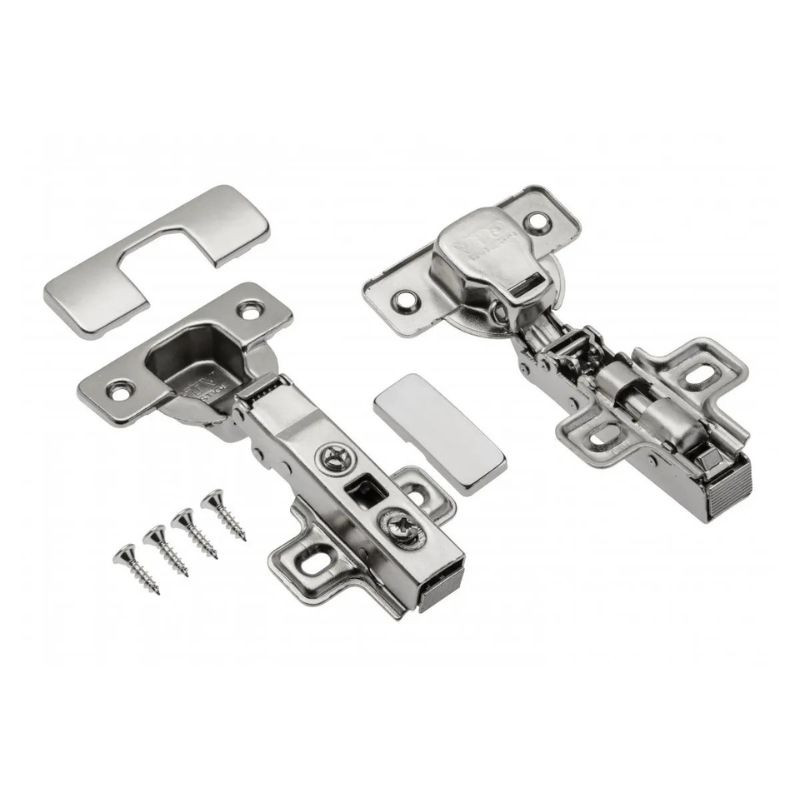

• Screws included (choice of): 4 wood screws or 2 wood screws + 2 Euro screws
• Supplied with baseplate
• NF: Front overlay (NF) of 18 mm.
• CE: Complies with standards PN-EN 15570:2010 / EN 15570:2008 (certified durability 80,000 cycles).



Also discover our inset hinges and half-overlay hinges, to choose the fastening system best suited to your furniture.

Installing the hydraulic hinge

For assembly without complex calculations and drilling errors, we strongly recommend using a drilling template!
