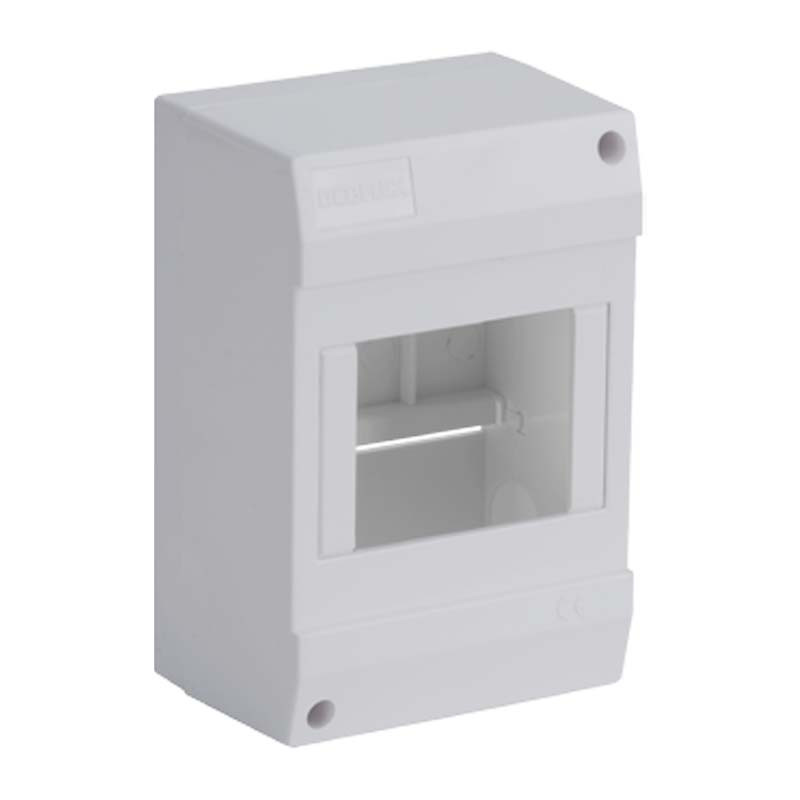

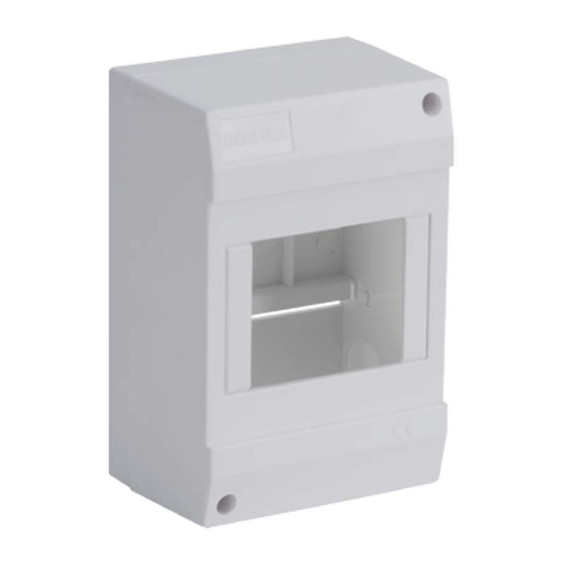

Electrical box for secure 230V circuit in converted van

This electrical box is ideal for a small electrical installation in a converted van with connection to the 230V domestic network. It includes 1 row that can accommodate up to 4 modules. It has the particularity of centralising and protecting circuit breakers and residual current devices. It is of course compatible with a wide range of standard electrical modules to offer you certain flexibility of use.

This box is the ideal complement for 30mA residual current devices as well as for 16mA residual current devices from Deblex.

Modularity and safety combined in a compact electrical box

An electrical box perfectly protects safety modules (residual current device, circuit breaker) connected to your 230V electrical circuits. This one composed of a single row that can accommodate 4 devices is perfectly suited for a compact electrical installation in a converted vehicle. It will easily find its place in your electrical diagram.

How to install an electrical box?

Nothing complicated, just fix the electrical box on a partition (cladding) or on a wooden panel bringing together all the electrical equipment necessary for your compact electrical diagram in a converted van. Once installed, you can insert and clip the electrical modules onto the row provided for this purpose, present in the back of the electrical box. You will then make all the necessary cable connections to the terminals of each module.

Technical specifications of the electrical box

• Number of rows: 1
• Maximum number of modules that can be inserted in the box: 4
• Material: High-resistance plastic

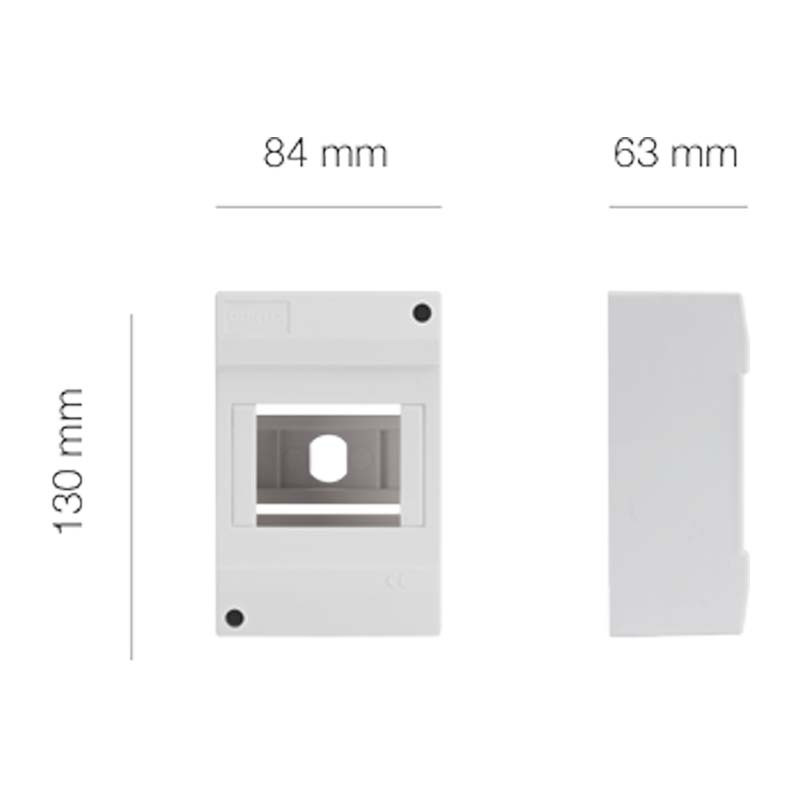

• Dimensions: 129 x 86 x 62mm
• Compatibility: 16A circuit breaker; 30mA residual current device (products sold separately on our website)

To secure your electrical circuits connected to 230V domestic current on board your converted utility vehicle, install a compact and robust electrical box!
