Mains socket for 230V electrical installation in converted vans

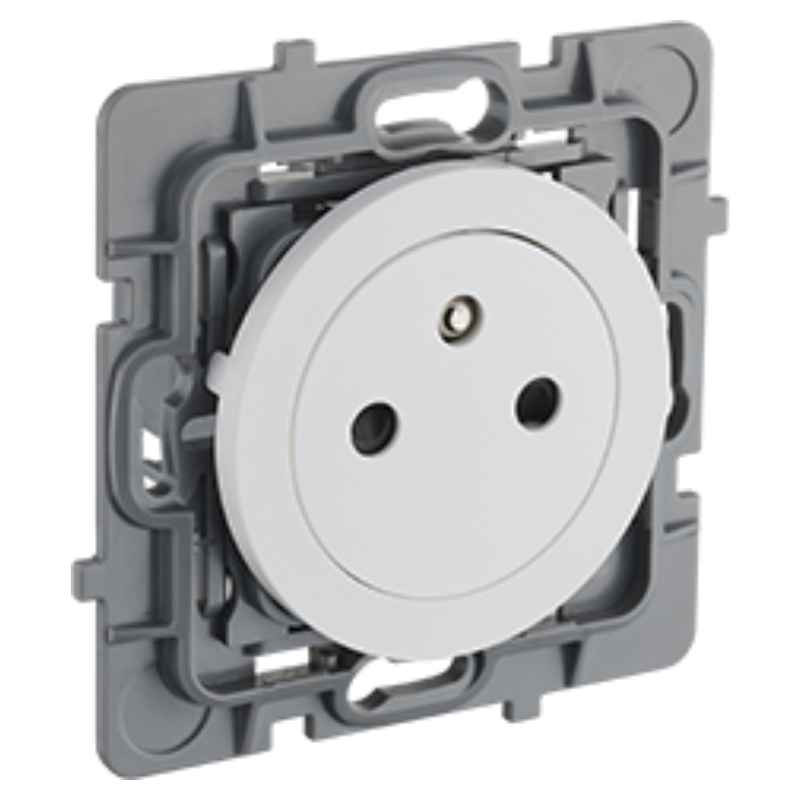

This flush-mounted power socket is to be connected to the 3 conducting wires of the R02-V 3G2.5mm² electrical cable then installed in a flush-mounting box onto which it must be screwed.

Once installed and dressed with a white, black or sea green finishing plate, a 2P+E (Phase, Neutral, Earth) flush-mounted power socket like this one allows you to connect your electrical appliances to the 230V domestic mains safely! It provides a stable 230V power supply whilst incorporating an earthing system to protect your appliances against overvoltage or short-circuit risks.

How to install a power socket?

Before installing one or more mains socket(s), you must first have installed a 1-gang or multi-gang flush-mounting box depending on your needs. A few tools are needed for installation: 1 cutting pliers, 1 wire strippers and 1 flat screwdriver.

Step 1: For your safety, ensure that no electrical equipment is switched on (switch off the power at the circuit breaker). Grab and strip the 3G2.5mm² cable to a length of a few mm. Then strip the 3 conducting wires (blue; yellow and green; brown) to a length of 11mm each. As a reminder, the conductor with a blue sheath is the neutral, the conductor with a brown sheath is the phase and the conductor with a yellow and green sheath is the earth.

Step 2: Once your 3 conductors are stripped, insert them, each one, up to the stop in their respective terminal at the back of the power socket. If you need to disconnect a conducting wire, simply press the push button of its terminal and remove it.

Step 3: After connecting the conductors to the terminals properly and without error, place the socket in the flush-mounting box and screw it in the designated places. To dress your power socket, clip on a finishing plate in white, black or sea green (product sold separately on our site).

Your 230V socket installation is complete! The white or black finish of this flush-mounted socket will add a touch of modernity and simplicity to the interior living space of your converted commercial vehicle. Don't worry, it will fit perfectly with the tone of your fitout!

The support of this flush-mounted mains socket has been designed to allow several to be interlocked horizontally or vertically. For example, if you choose to install 2 power sockets, you will interlock the supports of these 2 together and then install them in a 2-gang flush-mounting box.

Technical specifications of the power socket

• Socket type: 2P+E (Phase, Neutral, Earth)
• Socket model: Flush-mounted (This ensures safety and protection when a male electrical plug is not inserted.)
• Terminal type: Automatic
• Voltage: 250V - 50Hz
• Current rating: 16A
• Material: High-resistance plastic
• Colour: White or Black
• Dimensions (LxWxD): 71 x 71 x 36 mm
• Installation: To be screwed onto a flush-mounting box with 40mm depth (product sold separately on our site)
• Easily interlocking socket support for creating a double socket or multi-socket
• IP21
• NF: yes
• CE: yes

Make your living space in a converted van a safe and elegant place thanks to the design and finish of this 230V power socket!
