Natural and long-lasting insulation for your L1H1

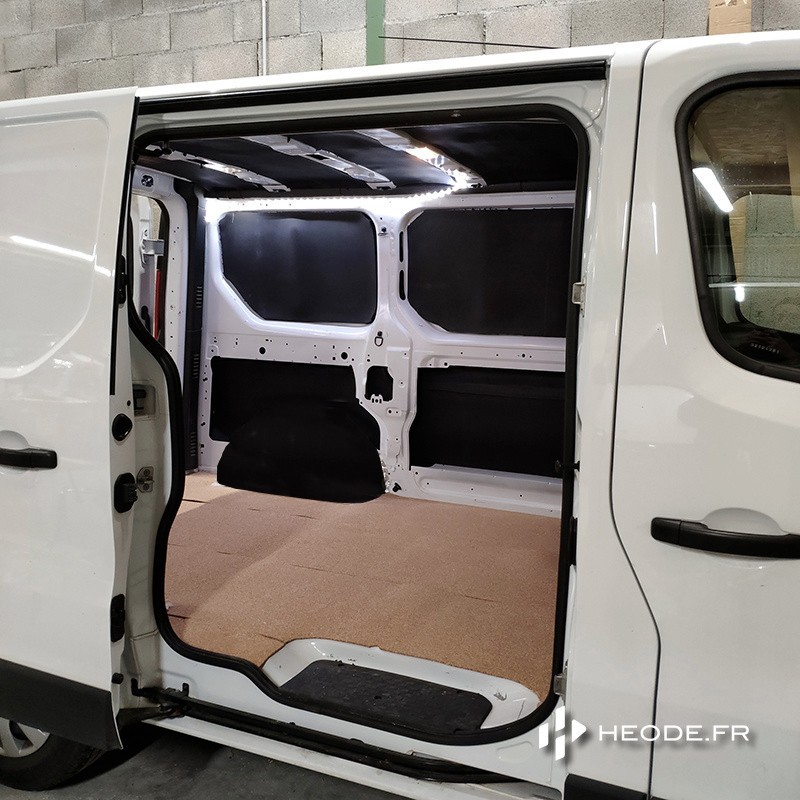

Armaflex ChezMoi insulates your L1H1 van from floor to ceiling, including walls and reinforcements.

Biofib Trio takes over on the doors alongside Armaflex ChezMoi: this natural fibre panel (hemp, linen, cotton) conforms to hard-to-reach areas and naturally regulates moisture, where the stiffer 19 mm Armaflex would be more complex to fit. Cork completes the ensemble on the floor.

Quantities already calibrated for this size, adhesives and accessories included.

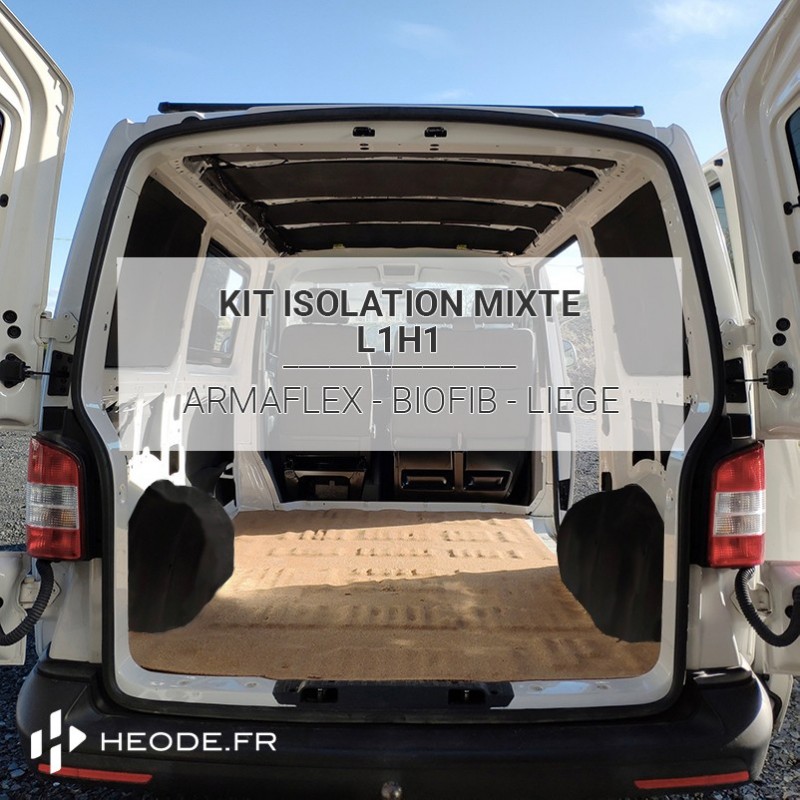

Compatible with L1H1 vans on the market (Renault Trafic, Peugeot Expert, Citroën Jumpy, Ford Transit Custom, Volkswagen Transporter and equivalents), this kit covers walls, ceiling, doors, wheel arches and floor.

• Quantities calibrated for an L1H1: no more guesswork.
• Armaflex ChezMoi, designed for the van: unlike the old AF which was designed for the building industry.
• Does not compress over time: Biofib Trio retains its insulating volume over the kilometres.
• Natural hygric regulation: Biofib Trio absorbs and releases moisture.
• Designed and manufactured in France: hemp, linen and cotton, 85% from French supply chains.

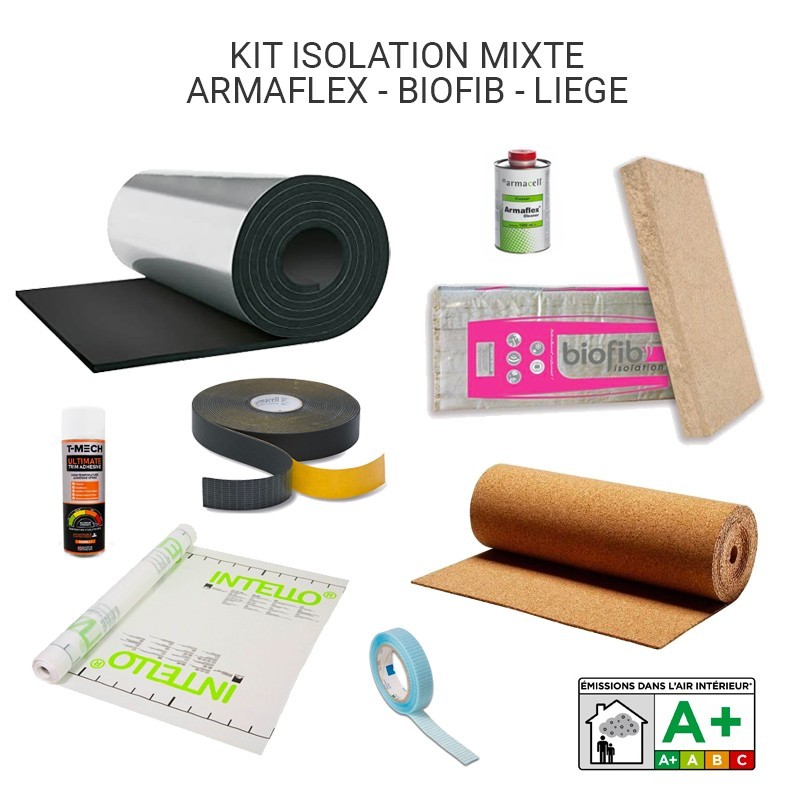

Contents of the L1H1 insulation kit

Walls, ceiling and structural reinforcements

• Armaflex ChezMoi 19 mm self-adhesive — 2 rolls of 6 m²
• Armaflex ChezMoi 10 mm self-adhesive — 1 roll of 10 m² (reinforcements and uprights)

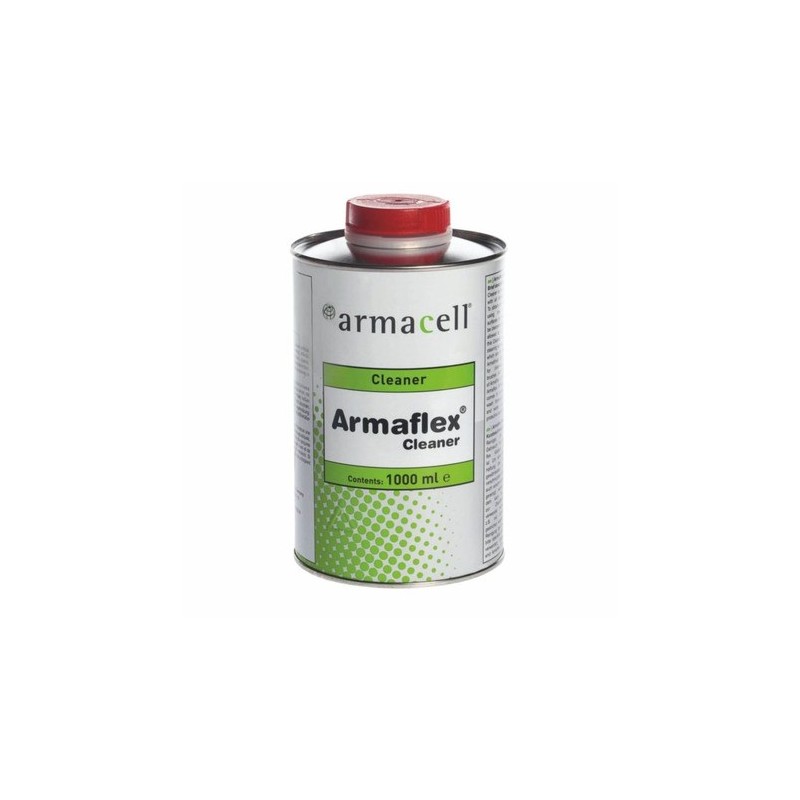

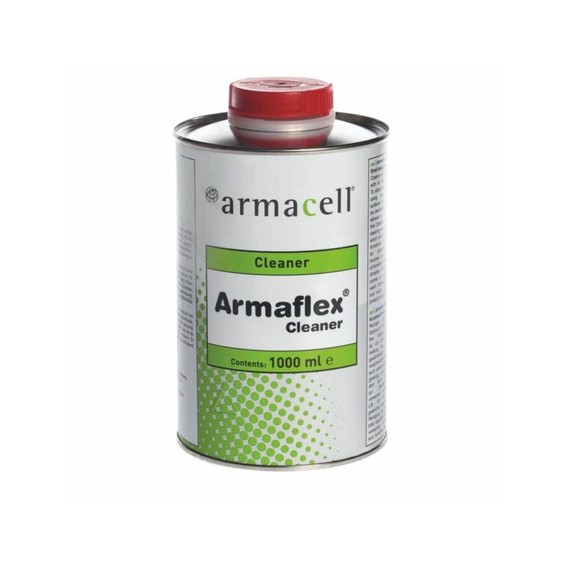

• Armaflex Cleaner — surface preparation cleaner

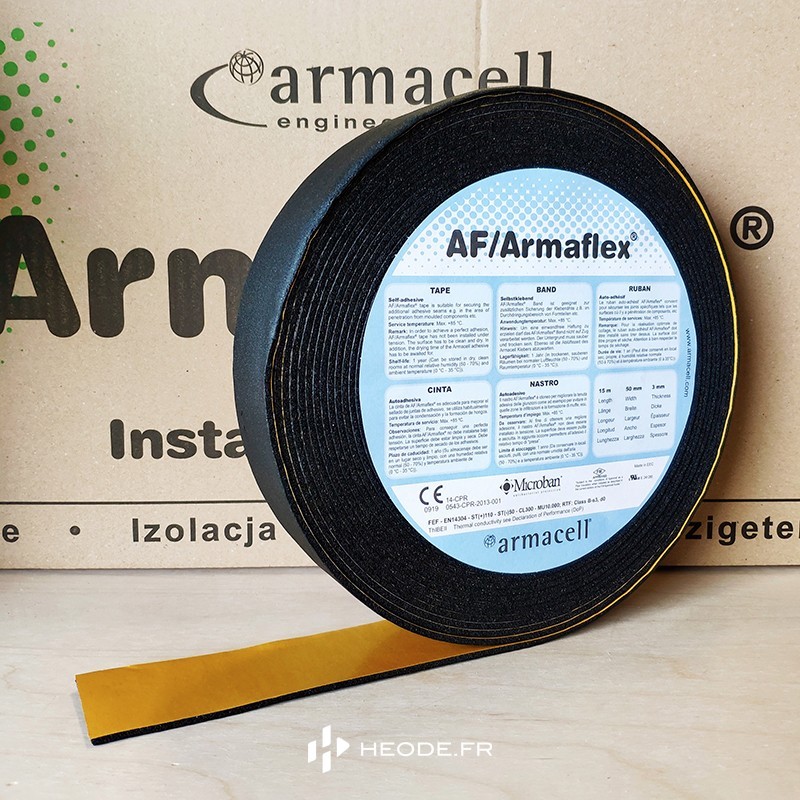

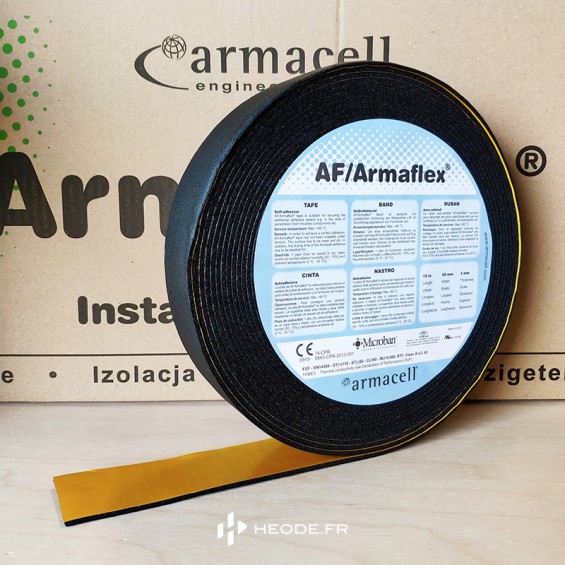

• Armaflex ChezMoi Tape — 1 roll of 15 m for joints

Doors

• Biofib Trio 45 mm — 4 panels
• Proclima Intello vapour barrier — 2 rolls
• Double-sided adhesive tape for vapour barriers

Wheel arches

• Armaflex ChezMoi 10 mm self-adhesive (quantity included above)

Floor

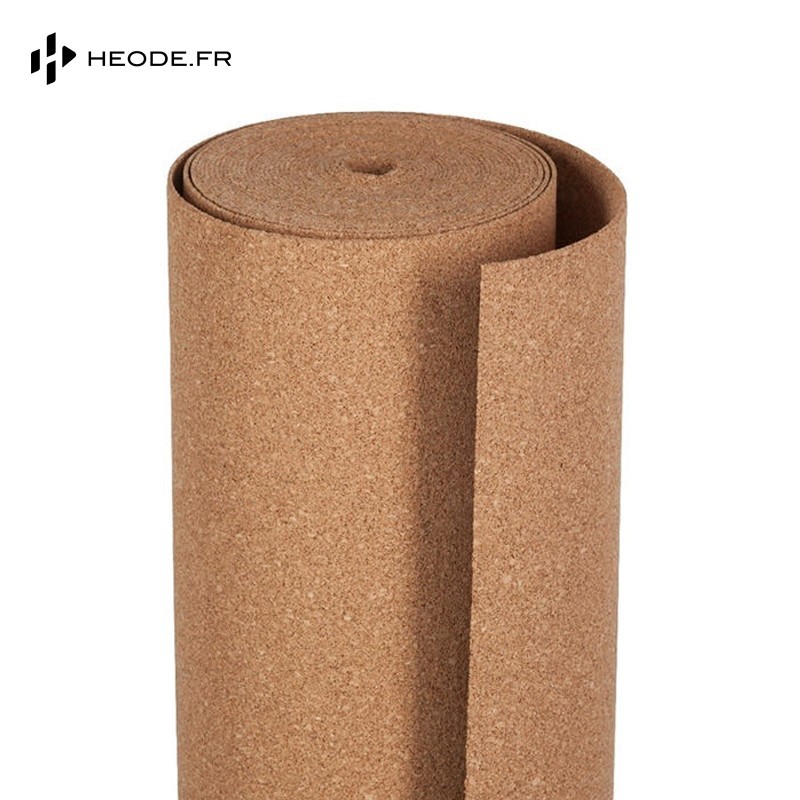

• 4 mm cork roll — 1 roll of 4 m²
• High-performance spray adhesive

Materials chosen for their role in insulation

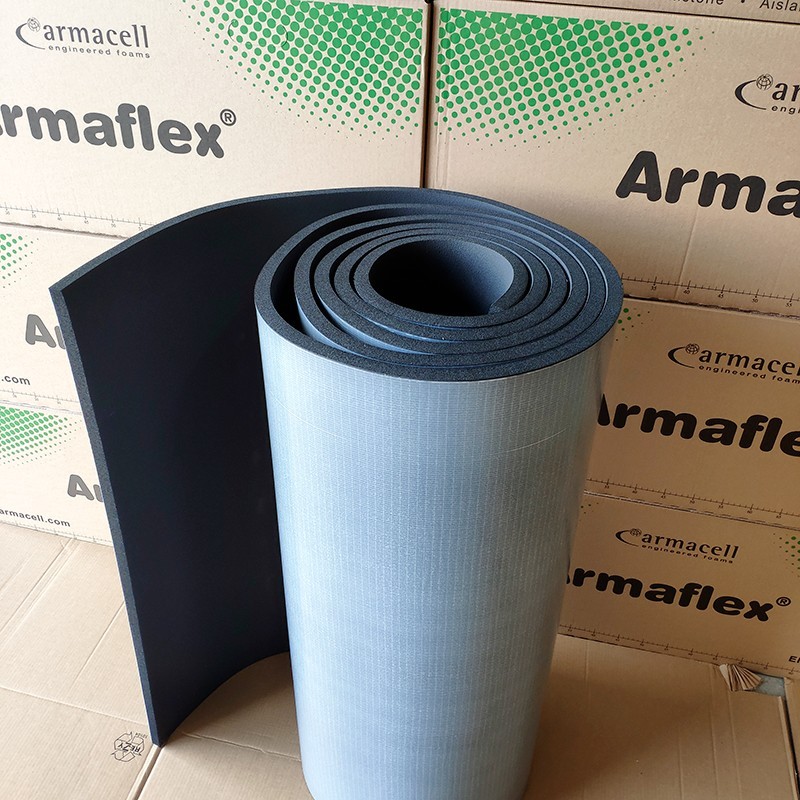

Armaflex ChezMoi — the insulation designed for the van

The successor to Armaflex AF, ChezMoi uses the same closed-cell technology, in a formulation designed from the outset for van conversion rather than the building industry. Its integrated vapour barrier means no separate vapour barrier needs to be added to the walls and ceiling.

• Role in the kit: walls, ceiling, reinforcements, wheel arches
• Thickness / packaging: 19 mm (6 m² roll) and 10 mm (10 m² roll)
• Thermal conductivity (λ): 0.035 W/(m·K)
• Integrated vapour barrier: closed cells, no separate vapour barrier needed
• Antimicrobial treatment: Microban®, integrated into the material
• Service temperature: -50 °C to +85 °C
• VOC emissions: A+ rating (ISO 16 000)
• Manufacturer's warranty: 10 years
• Origin / manufacturing: Europe, Armacell technology

Biofib Trio — the natural insulation for hard-to-reach areas

Made from hemp, linen and cotton (85% French supply chain), Biofib Trio is designed and manufactured in France. Its natural hygric regulation helps prevent excess moisture in the vehicle, and its structure does not compress even after thousands of kilometres.

• Role in the kit: doors
• Thickness / packaging: 45 mm (0.75 m² panel)
• Density: 30 kg/m³
• Thermal conductivity (λ): 0.038 W/(m·K)
• Thermal resistance (R): 1.15 m²·K/W
• Hygric regulation: yes, permeable to water vapour (µ ≤ 2)
• Long-term durability: does not compress, natural spring-back effect
• Origin / manufacturing: France, 85% French supply chain (hemp, linen, cotton)

Cork — the natural insulation for the floor

Naturally rot-proof and moisture-resistant, cork insulates the floor without adding unnecessary thickness. Its lightness and flexibility make it a simple solution to apply with spray adhesive, directly onto the metal sheet.

• Role in the kit: floor
• Thickness / packaging: 4 mm (4 m² roll)
• Moisture resistance: rot-proof, naturally water-resistant
• Origin / manufacturing: natural material
