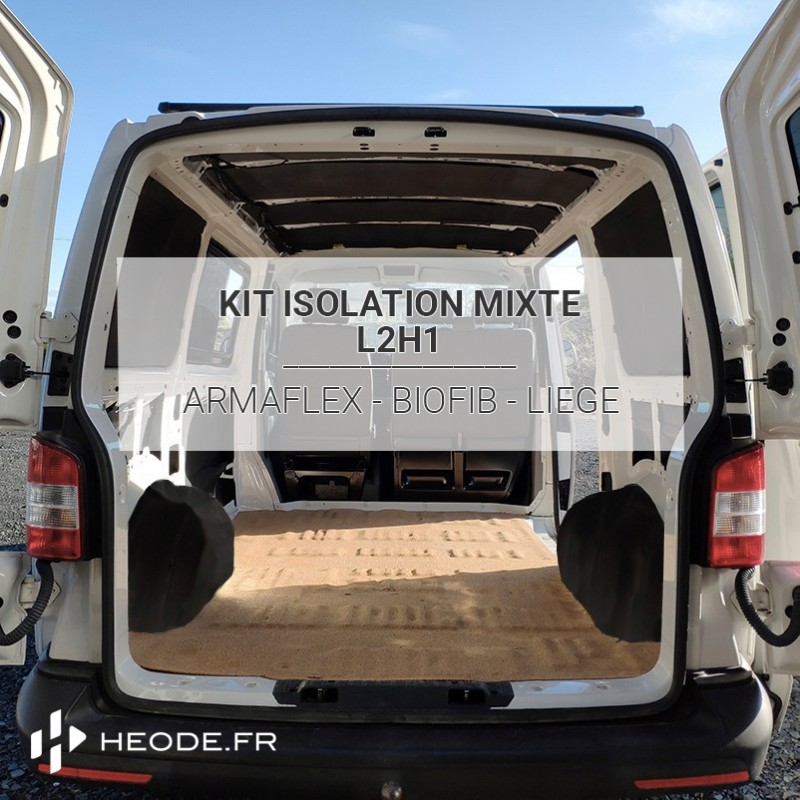

An insulator that holds its volume, kilometre after kilometre, for your L2H1

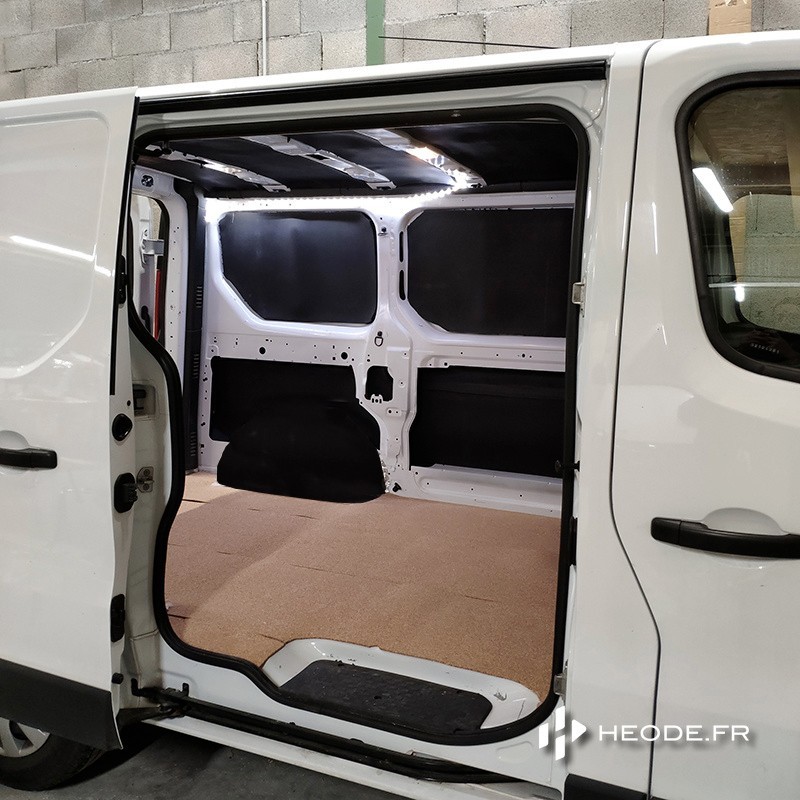

Armaflex ChezMoi insulates your L2H1 van from floor to ceiling, including the walls and reinforcements.

On the doors, Armaflex ChezMoi gives way to Biofib Trio: this natural-fibre panel (hemp, linen, cotton) fits into hard-to-reach areas without compressing over time, unlike some insulators that lose thickness with road vibrations. A vapour barrier completes the installation to prevent any condensation against the metal sheet. Cork finishes off the floor. Quantities already calibrated for this size, adhesives and accessories included.

Compatible with L2H1 vans on the market (Renault Trafic, Peugeot Expert, Citroën Jumpy, Ford Transit Custom, Volkswagen Transporter and equivalents), this kit covers walls, ceiling, doors, wheel arches and floor.

• Quantities calibrated for an L2H1: no calculations needed on your part.
• Armaflex ChezMoi, designed for the van: unlike the former AF, which was designed for building insulation.
• Does not compress over time: Biofib Trio maintains its insulating volume over the kilometres.
• Insulation that covers everything: walls, ceiling, doors, wheel arches and floor.
• Designed and manufactured in France: hemp, linen and cotton, 85% from French supply chains.

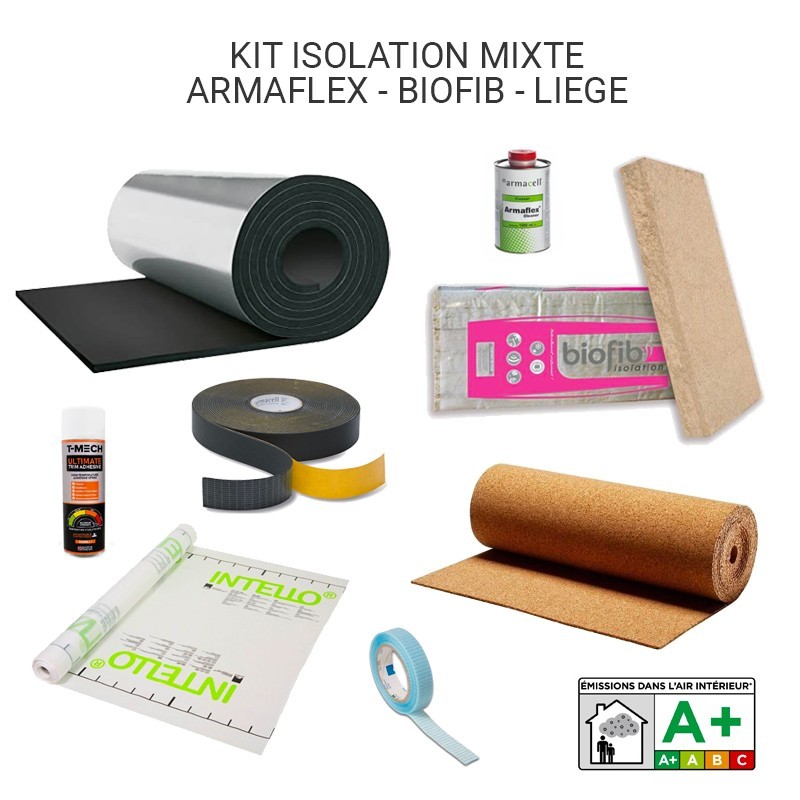

Contents of the L2H1 insulation kit

Walls, ceiling and structural reinforcements

• Armaflex ChezMoi 19 mm self-adhesive — 2 rolls of 6 m²
• Armaflex ChezMoi 10 mm self-adhesive — 1 roll of 10 m² (reinforcements and uprights)

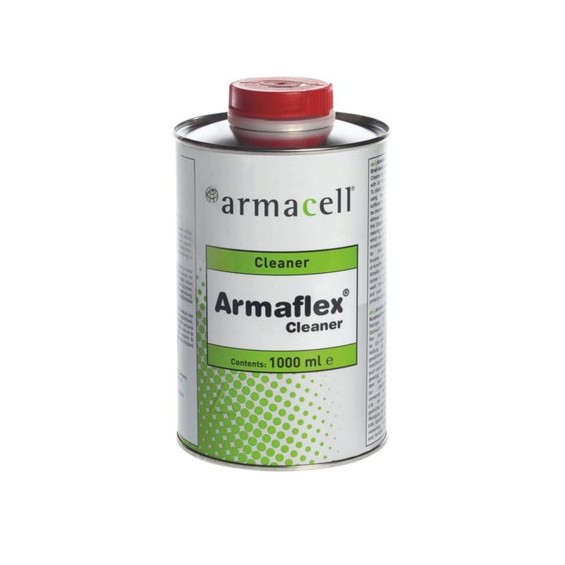

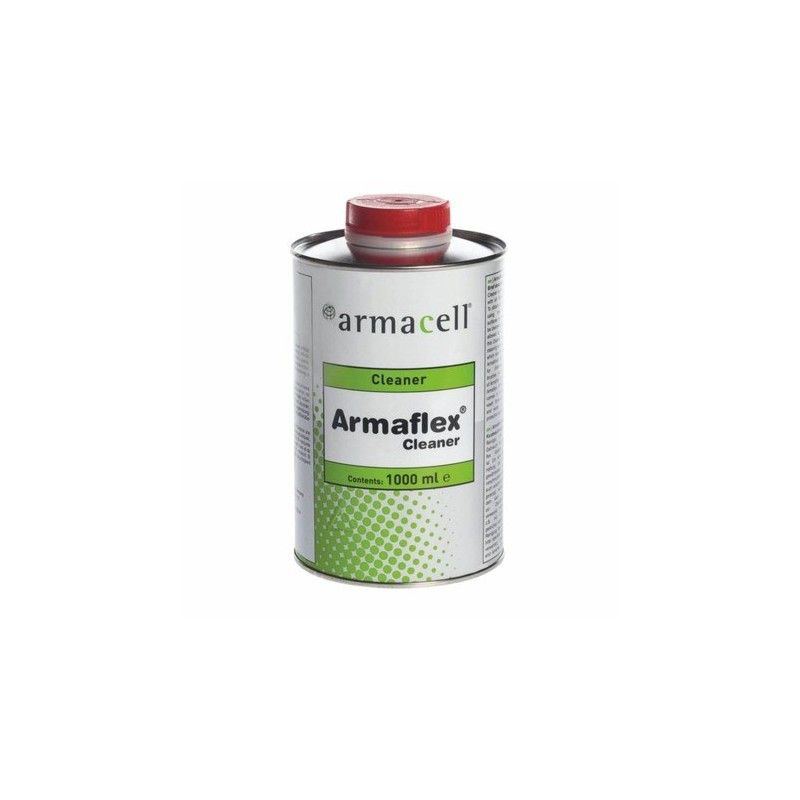

• Armaflex Cleaner — surface preparation cleaner

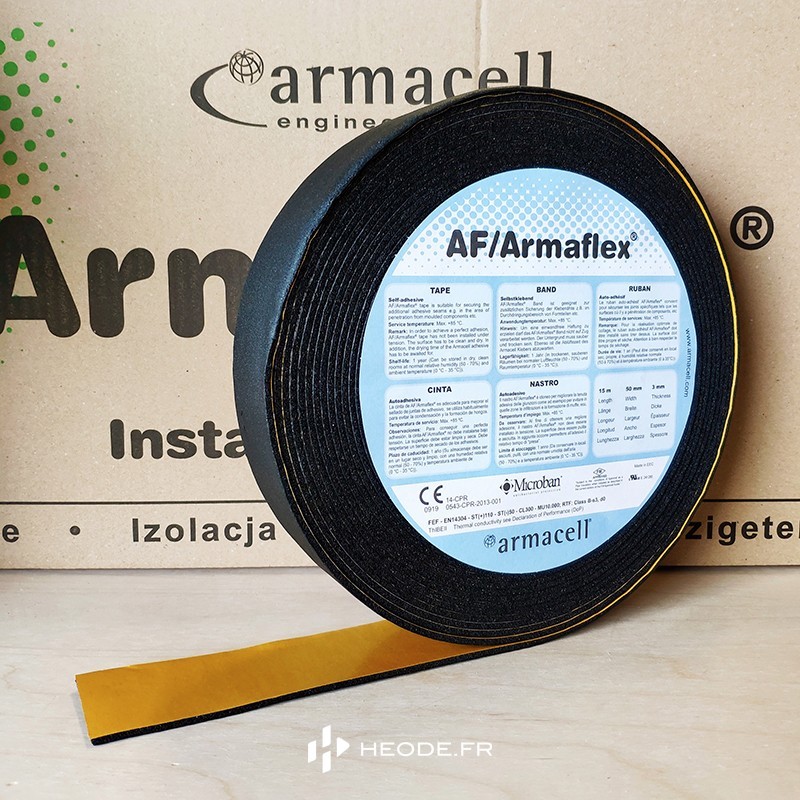

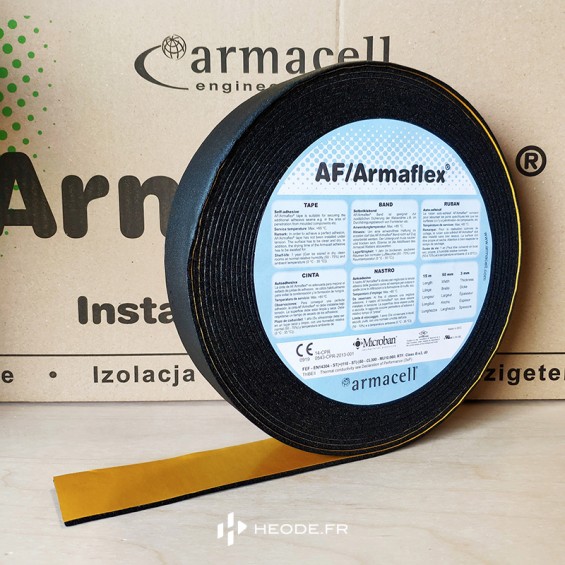

• Tape Armaflex ChezMoi — 1 roll of 15 m for joints

Doors

• Biofib Trio 45 mm — 4 panels
• Vapour barrier Proclima Intello — 2 rolls
• Double-sided tape specially for vapour barriers

Wheel arches

• Armaflex ChezMoi 10 mm self-adhesive (quantity included above)

Floor

• 4 mm cork roll — 2 rolls of 4 m²
• High-performance spray adhesive

Materials chosen for their role in insulation

Armaflex ChezMoi — the insulator designed for the van

Successor to the Armaflex AF, the ChezMoi uses the same closed-cell technology in a formulation designed from the outset for van conversion rather than building insulation. Its integrated vapour barrier means no separate vapour check needs to be added to the walls and ceiling.

• Role in the kit: walls, ceiling, reinforcements, wheel arches
• Thickness / packaging: 19 mm (6 m² roll) and 10 mm (10 m² roll)
• Thermal conductivity (λ): 0.035 W/(m·K)
• Integrated vapour barrier: closed cells, no separate vapour check needed
• Antimicrobial treatment: Microban®, integrated into the material
• Service temperature: -50 °C to +85 °C
• VOC emissions: A+ rating (ISO 16 000)
• Manufacturer's warranty: 10 years
• Origin / manufacturing: Europe, Armacell technology

Biofib Trio — the natural insulator for hard-to-reach areas

Made from hemp, linen and cotton (85% from French supply chains), Biofib Trio is designed and manufactured in France. Its natural hygroscopic regulation helps prevent excess moisture in the vehicle, and its structure does not compress even after thousands of kilometres.

• Role in the kit: doors
• Thickness / packaging: 45 mm (0.75 m² panel)
• Density: 30 kg/m³
• Thermal conductivity (λ): 0.038 W/(m·K)
• Thermal resistance (R): 1.15 m²·K/W
• Hygroscopic regulation: yes, permeable to water vapour (µ ≤ 2)
• Long-term stability: does not compress, natural spring-back effect
• Origin / manufacturing: France, 85% from French supply chains (hemp, linen, cotton)

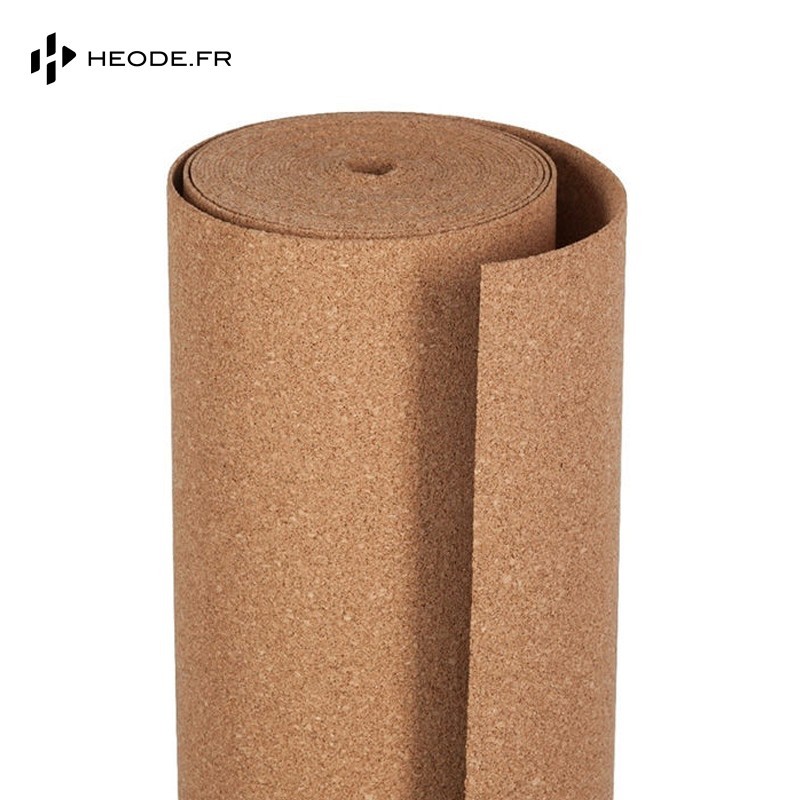

Cork — the natural floor insulator

Naturally rot-proof and moisture-resistant, cork insulates the floor without adding unnecessary thickness. Its lightness and flexibility make it easy to install with spray adhesive, directly onto the metal sheet.

• Role in the kit: floor
• Thickness / packaging: 4 mm (4 m² roll)
• Moisture resistance: rot-proof, naturally water-resistant
• Origin / manufacturing: natural material
