Adjustable drilling jig for concealed hinges - with integrated drill bit and punch

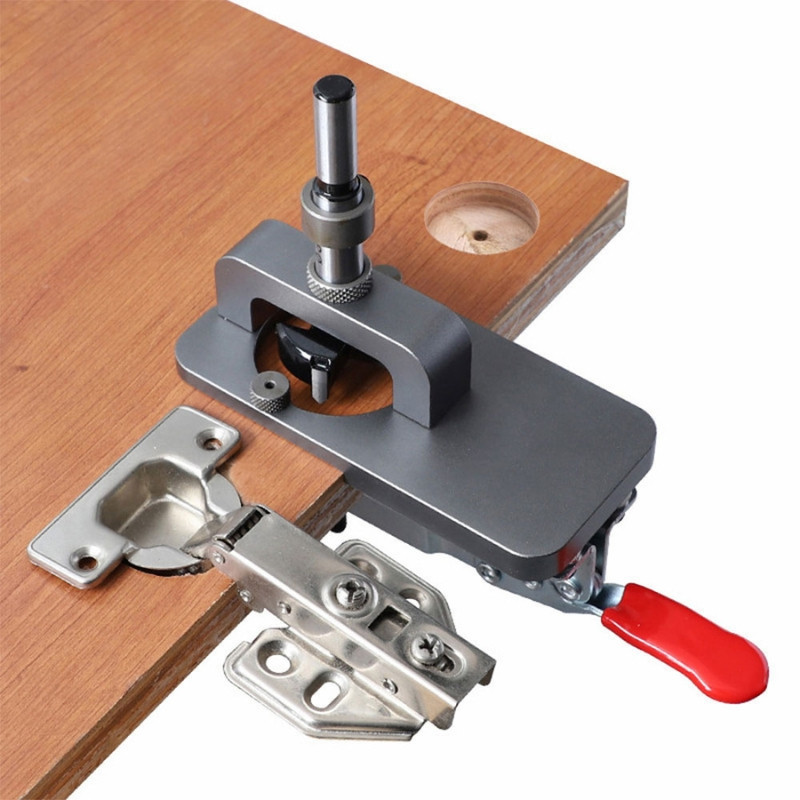

Installing cupboard doors in a van requires surgical precision: a few millimetres off and closing becomes impossible, or worse, the front panel is pierced through. This all-in-one drilling jig eliminates the stress of fitting hardware onto your custom-built furniture. Specifically designed for 35 mm diameter hinges, this tool guides your hand for a professional result. Thanks to its adjustable stop and punching system, you can set the exact spacing from the edge without tedious measurements. Once you've marked your reference points, perhaps using our multifunctional aluminium square for marking and cutting, this device locks firmly to guarantee a clean, perfectly perpendicular flat-bottomed hole, thus preserving your panels, even the thinnest ones.

Technical specifications of the 35mm adjustable drilling tool

• Tool type: Drilling jig with integrated cutter
• Cutting diameter: 35 mm
• Compatible wood thickness: from 15 to 25mm
• Material compatibility: Solid wood, plywood (poplar, okoume), melamine, MDF

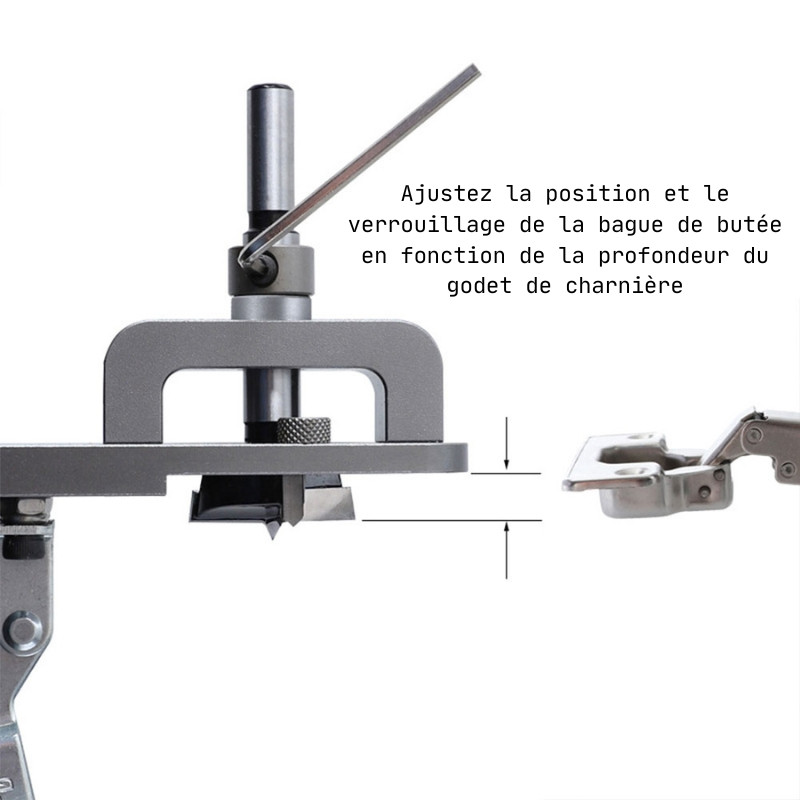

• Adjustment system: Depth stop and adjustable spacing guide (edge-to-panel margin)

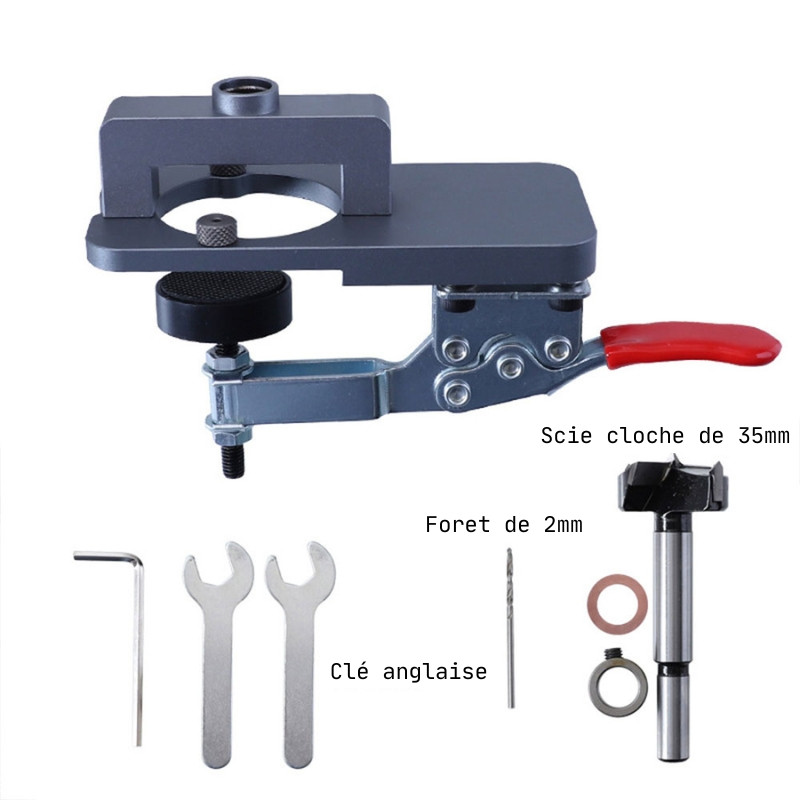

• Kit composition:
  • Guide body made of impact-resistant technical polymer
  • Hard alloy cutter (drill bit) for clean cutting without splintering
  • Tightening key for adjustments
• Key features: Integrated centering punch, drilling depth limitation, optimised chip evacuation
