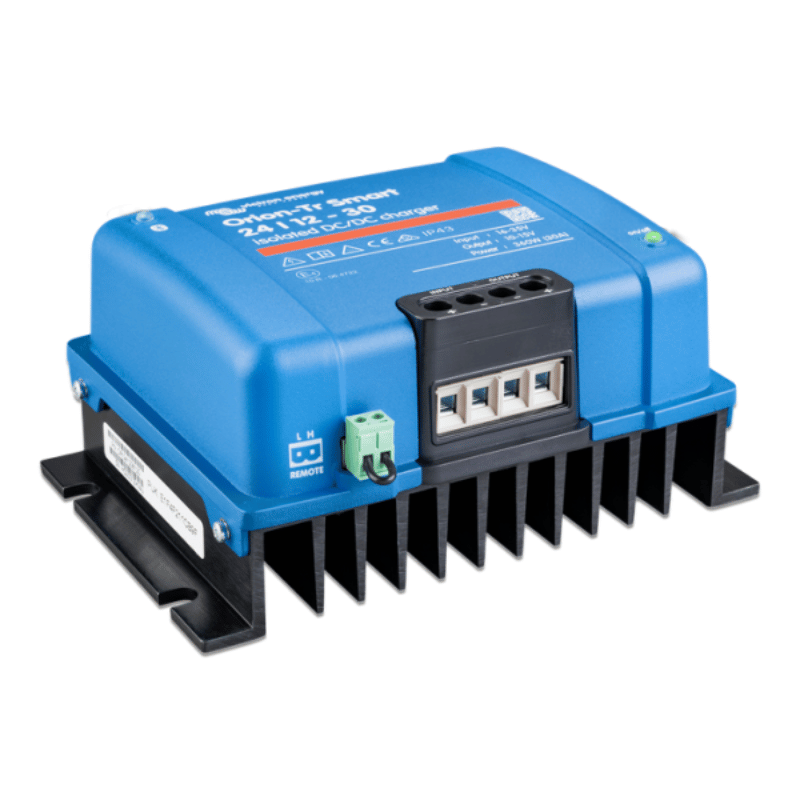

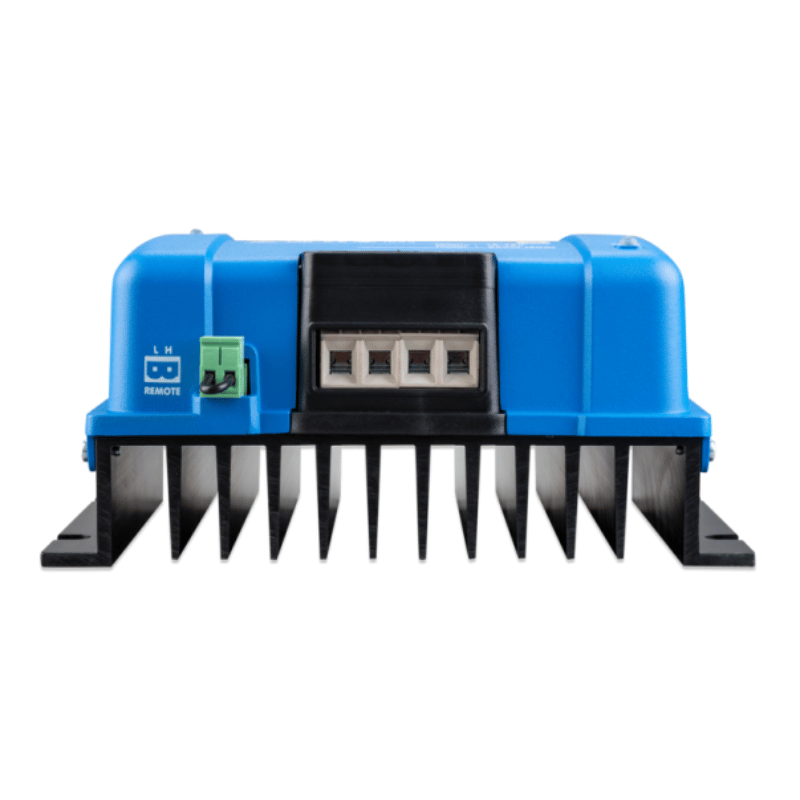

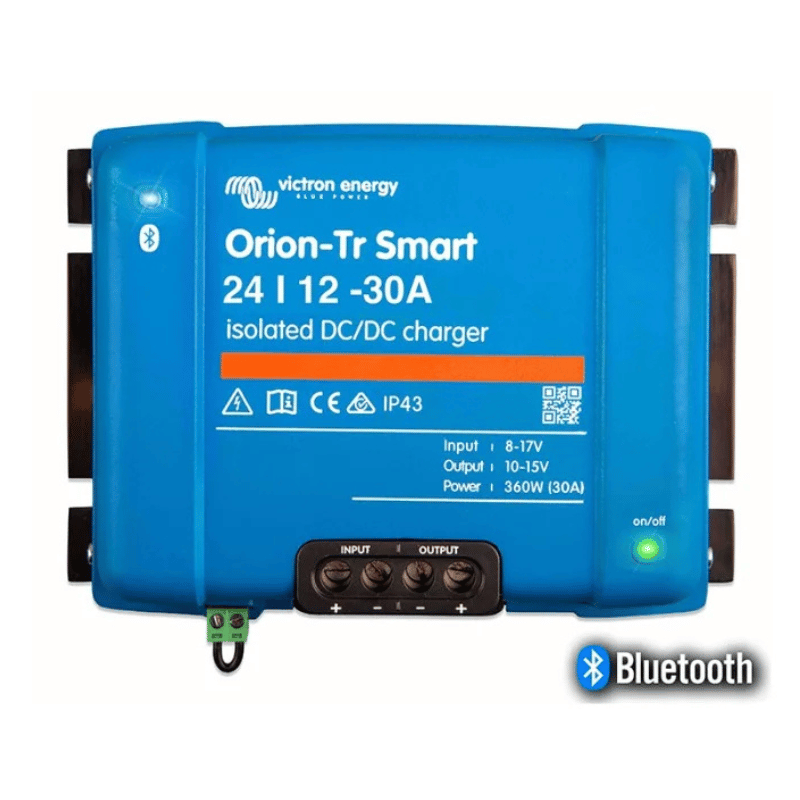

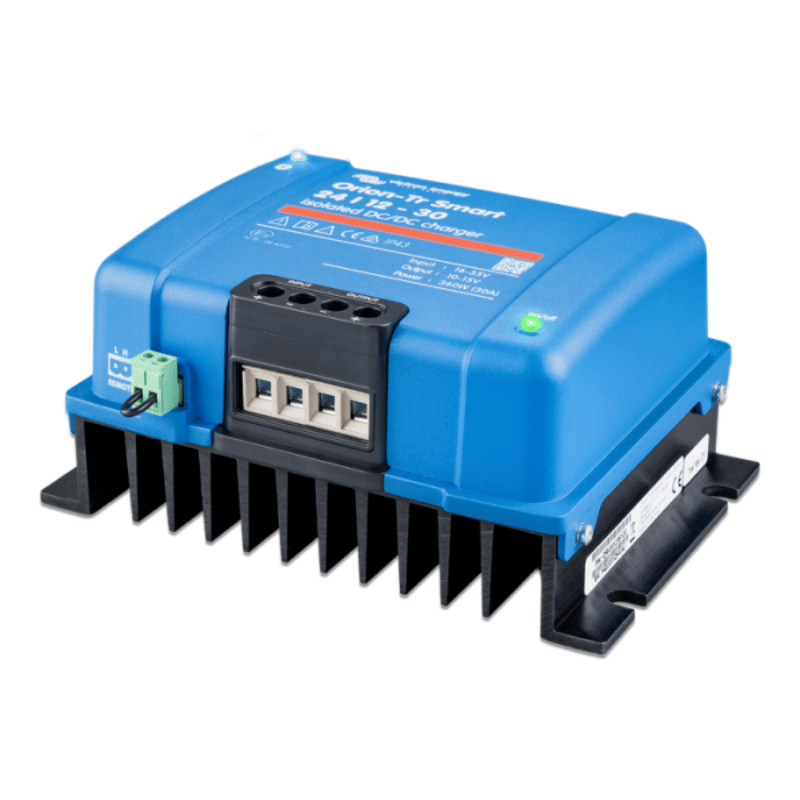

Orion-Tr Smart 24/12V 30A 360W isolated DC/DC booster charger for auxiliary battery

Designed for vehicles equipped with an EURO 5 or EURO 6 smart alternator (from 2009) to optimally (re)charge a 12V auxiliary battery present in an electrical installation within a converted van.

More practical than a split charge relay, the Orion-Tr Smart booster charger offers reliable and controlled charging even under irregular voltage conditions. Thanks to its wide input and output voltage range, it can compensate for power losses, which may be related to insufficient charging voltage from the smart alternator (even when the engine is running) or to significant cable lengths within a leisure vehicle's electrical system.

The operation and wide voltage range of the booster charger are essential to ensure complete charging of the service battery (auxiliary) whilst protecting the starter/input battery (engine) from discharge.

Compatible with Lead or Lithium batteries, this Orion-Tr Smart 24/12V 30A booster charger has an adaptive 3-stage charging algorithm: bulk, absorption, float. This algorithm increases the auxiliary battery's lifespan whilst charging it intelligently.

• For a lead battery, it is important during partial discharges that the absorption time is short to avoid overcharging. After a deep discharge, the absorption time is automatically increased to ensure a complete recharge.
• For a lithium battery, the absorption time is fixed (2 hours by default).

The isolated Orion-Tr Smart charger can be configured (via the Victron Connect app) to provide power only when the engine is running. This is possible thanks to the engine shutdown detection system integrated into the booster charger. This prevents the vehicle's onboard voltage from becoming too low.

Isolated 24/12V 30A Bluetooth charger for remote configuration and monitoring

To use your Victron Energy booster charger, you will need to download the VICTRON CONNECT app on your smartphone or tablet:

For Android: https://play.google.com/store/apps/details?id=com.victronenergy.victronconnect&hl=fr&pli=1

For iOS (iPhone or iPad): https://apps.apple.com/fr/app/victronconnect/id943840744

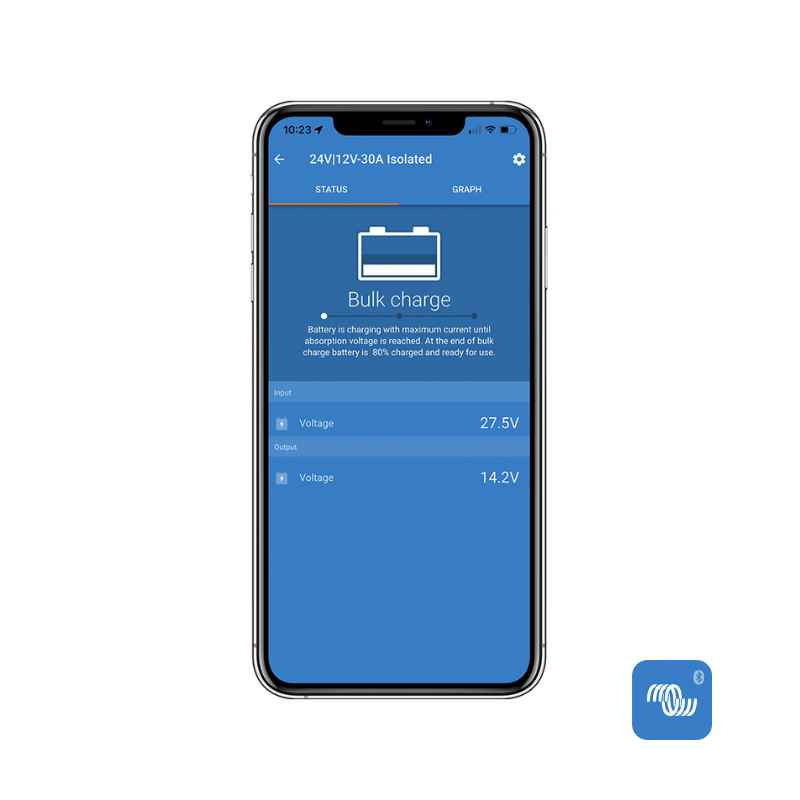

Once the app is installed, you can monitor voltage and current; modify settings and update the charger when new software features are available. It can display the most important data, including warnings and alarms on the "Device List" page without having to connect to the equipment.

Custom programming of the Victron Energy 30A isolated DC/DC booster charger

The Orion-Tr Smart is fully programmable (via the Victron Connect app) allowing customisation of the charging algorithm according to the specific needs of the auxiliary battery. 8 pre-programmed battery configurations.

Key features of the Orion-Tr Smart 24/12 30A IP43 charger

• Compatible with battery types: Lead, Lithium.
• Compatible with vehicles equipped with a Euro 5 or Euro 6 alternator (from 2009).
• Adaptive 3-stage charging algorithm: bulk, absorption, float to preserve the auxiliary battery.
• Bluetooth system via the intuitive Victron Connect app to remotely monitor the auxiliary battery charge status and other parameters.
• Charging power of 30A.
• Galvanic isolation: allows electrical separation of the input side (engine battery) and output side of the booster charger (auxiliary battery).
• Automatic charge adjustment based on temperature to protect your auxiliary battery.
• Easy installation: simple connection for quick setup.

Technical specifications Orion-Tr Smart 24/12V 30A

• Power supply voltage range: 20-35 V
• Shutdown on undervoltage: 14 V
• Restart on undervoltage: 15 V
• Nominal output voltage: 12.2 V
• Adjustable output voltage range: 10-15 V
• Output voltage tolerance: +/- 0.2 V
• Residual ripple: 2 mV rms
• Continuous output current at nominal output voltage and at 40°C: 30A
• Maximum output current (10 s) at nominal output voltage minus 20%: 45A
• Short-circuit output current: 60A
• Continuous output power at 25°C: 430W
• Continuous output power at 40°C: 360W
• Efficiency: 88%
• No-load charging current: < 100 mA
• Standby current: < 1 mA
• Usable as power supply: yes, output voltage can be programmed via Bluetooth
• Protection level: IP43 (electronic components), IP22 (connection area)
• Operating temperature range: -20 to +55°C
• Humidity: 95% maximum without condensation
• DC connection: Screw terminals
• Maximum cable cross-section: 16 mm² / AWG6
• Dimensions (LxWxH): 188 x 130 x 80 mm
• Weight: 1.6 kg
