Choose robustness and reliability with this high-end MPPT regulator!

Essential for converting solar energy from your photovoltaic panels into energy usable by your batteries, the Smart Solar charge regulator takes care of storing the electricity production from your solar panels to redistribute it to your batteries at the right time.

But that's not all! MPPT (Maximum Power Point Tracking) technology has been developed to get the best possible performance from your solar panels, in sunny weather as well as in cloudy conditions. To do this, the regulator locates the best voltage points of the panel for optimal recovery of solar energy (+15 to 40% compared to previous innovations!).

Equipped with the BatteryLife function, the SmartSolar regulator will also contribute to preserving your battery. On the one hand by trying to keep it constantly charged at 100%, and on the other hand by increasing the disconnection voltage if the electrical production is not sufficient.

This 15A version can receive up to 220W at 12V and 440W at 24V.

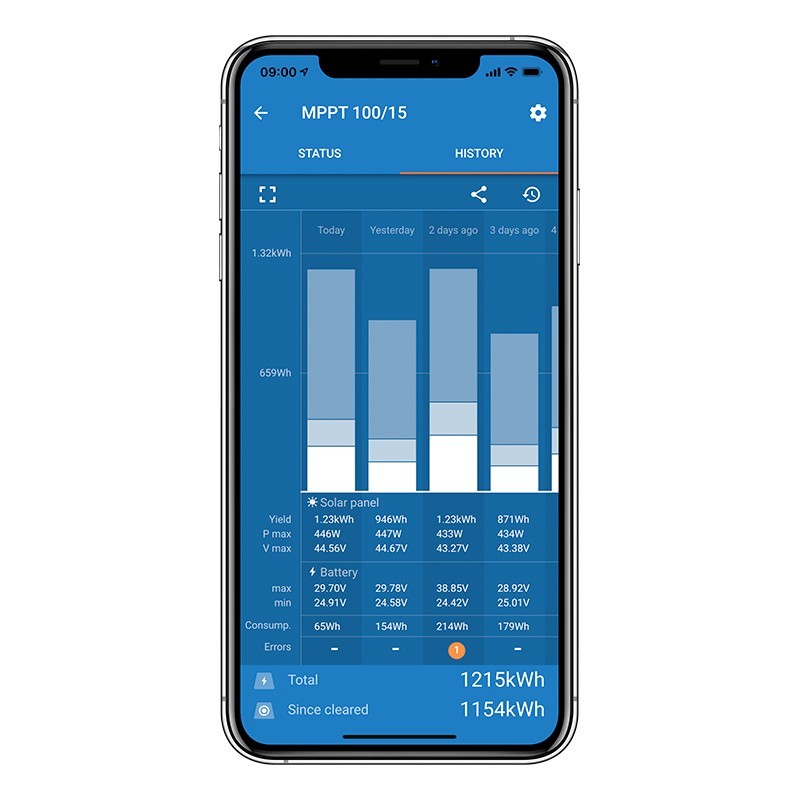

With this model, you can even view data relating to your battery charge on your smartphone or tablet, thanks to the Bluetooth® technology integrated into the unit!

Technical specifications

• Battery voltage: 12V / 24V
• Nominal charging current: 15A
• Continuous charging current: 15A
• Nominal PV power 12V: 220W
• Nominal PV power 24V: 440W
• Automatic load disconnection: Yes
• Maximum PV open circuit voltage: 75V
• "Absorption" charging voltage: 14.4V / 28.8V
• "Float" charging voltage: 13.8V / 27.6V
• Operating temperature: -30°C to +60°C
• Power terminals: 6mm² / AWG10
• IP43 rating (electronic components)
• IP22 rating (connection area)
• Integrated Bluetooth technology
• Dimensions: 100 x 113 x 40 mm
• Weight: 500g
• 5-year warranty
