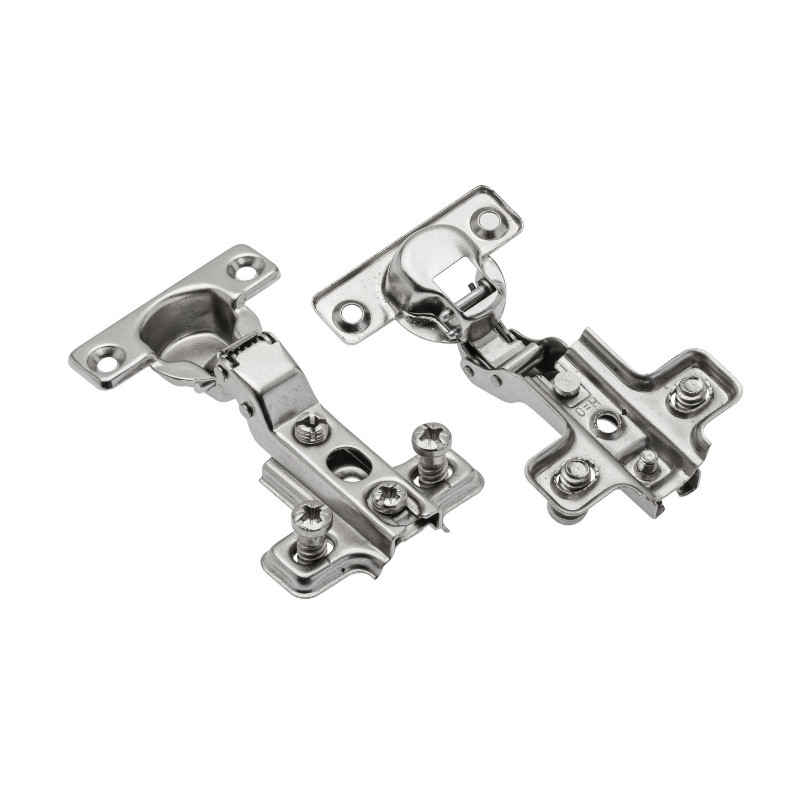

Mini overlay hinge for twin doors: the solution for your van's central partitions

When fitting out a van, fixing two doors on a single central post is often a technical headache. This compact hinge for twin fronts solves this problem by enabling a clean and robust installation on narrow partitions.

Its 26 mm cup is perfect for lightweight plywood structures, avoiding weighing down your wall units. Thanks to the spring mechanism, your cupboards remain firmly closed despite road vibrations. The slide-on mounting system facilitates installation, while the three-dimensional adjustment ensures millimetre-perfect alignment of your doors, even after thousands of kilometres. This nickel-plated steel device guarantees exceptional longevity for all your nomadic adventures.

Make life easier and gain precision in your drilling with the multi-position hole positioning jig.

Technical specifications of the mini overlay hinge for twin doors

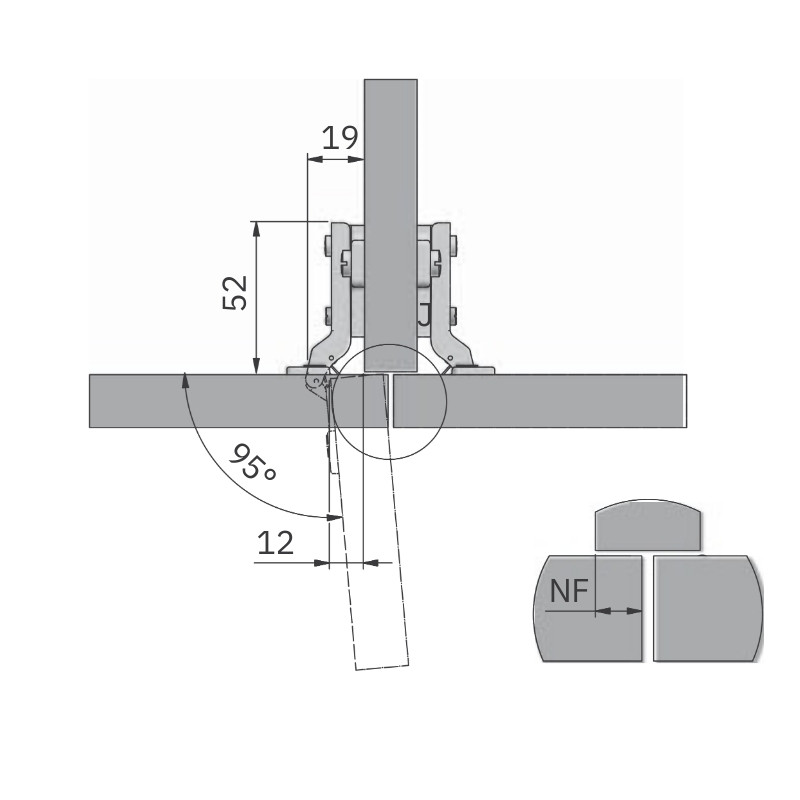

• Fitting type: hinge for twin doors (medium bend)

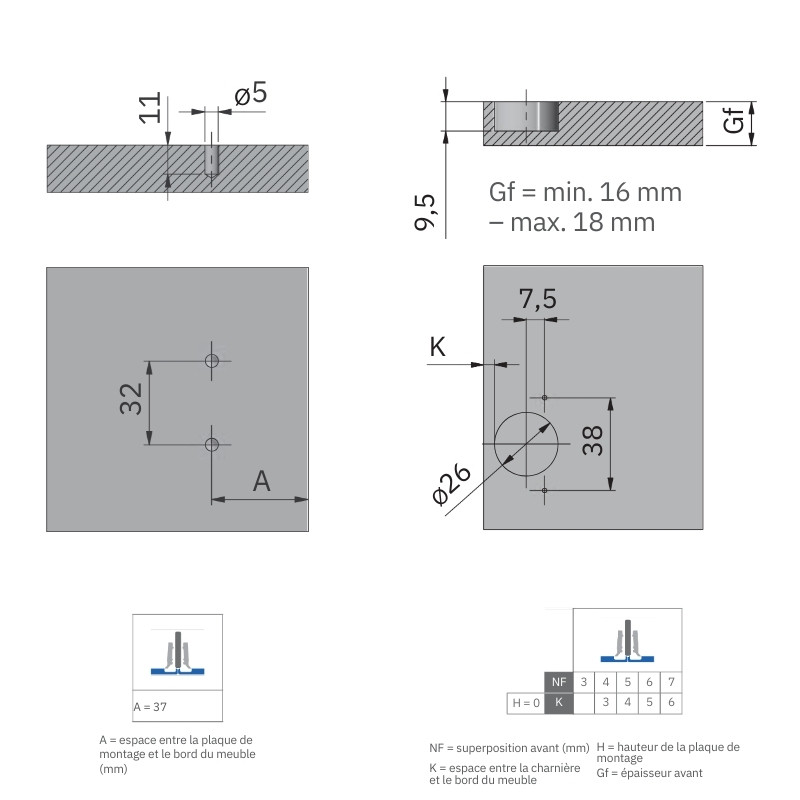

• Housing diameter: 26 mm
• Fixing centres: 38 mm
• Body material: high-strength steel
• Finish: nickel-plated for protection against humidity
• Mechanism: closing by integrated tension spring

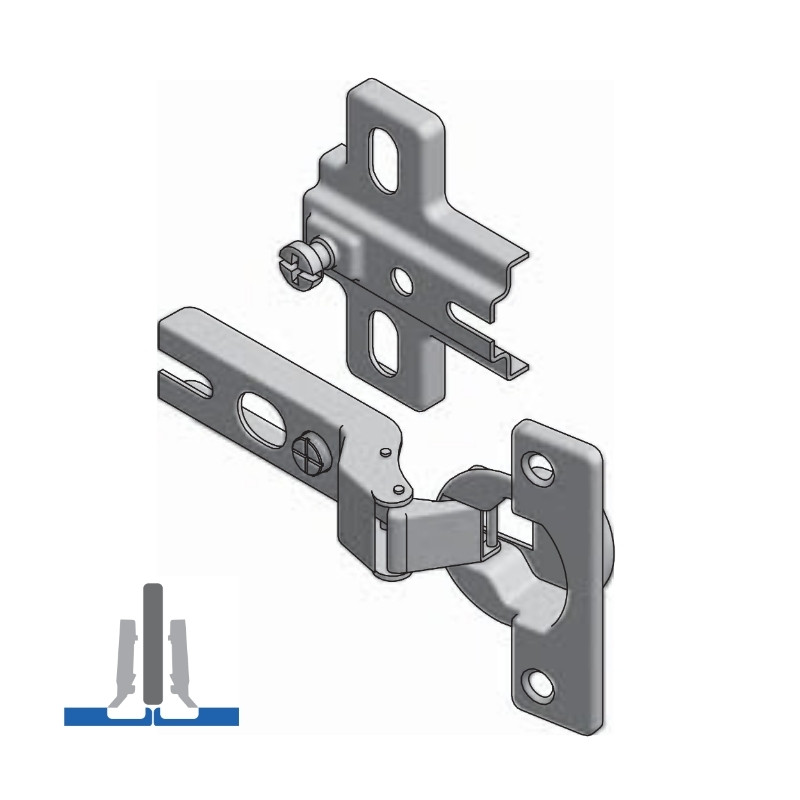

• Assembly: slide-on system for simplified installation
• Adjustments: complete 3D adjustment (lateral, depth and height)
• Durability: certified for 40,000 use cycles
• Front compatibility: thickness from 16 mm to 18 mm
• Compatible surfaces: plywood, solid wood, particle boards
• Screws included: Two euro screws

Please note, sold individually.
