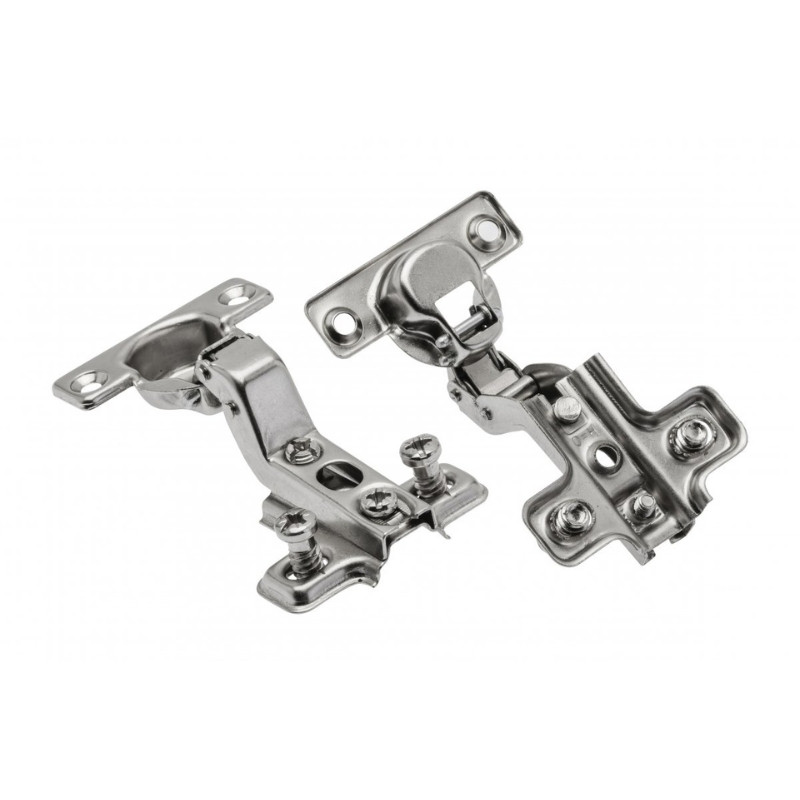

Mini hinge for inset door: the invisible solution for a streamlined van conversion

In a converted van where every millimetre is precious, installing cupboards can quickly become complex if the fittings are too bulky. This compact hinge is the ideal solution for those seeking a professional aesthetic finish without sacrificing solidity.

Its ingenious design allows the complete concealment of the mechanism within the wood thickness, providing a sleek and modern design to your nomadic furniture. Whether installing kitchen doors or storage hatches, assembly is remarkably simple: precise drilling is all that's needed for perfect integration. To ensure rigorous alignment of your fronts, using a multifunctional aluminium square* for marking and cutting will greatly facilitate your measurements.

This robust hardware ensures a firm hold of the door leaves, even on bumpy roads, thus avoiding annoying vibration noises during your journeys. It's the versatile asset for meticulous finishes in a compact living space.

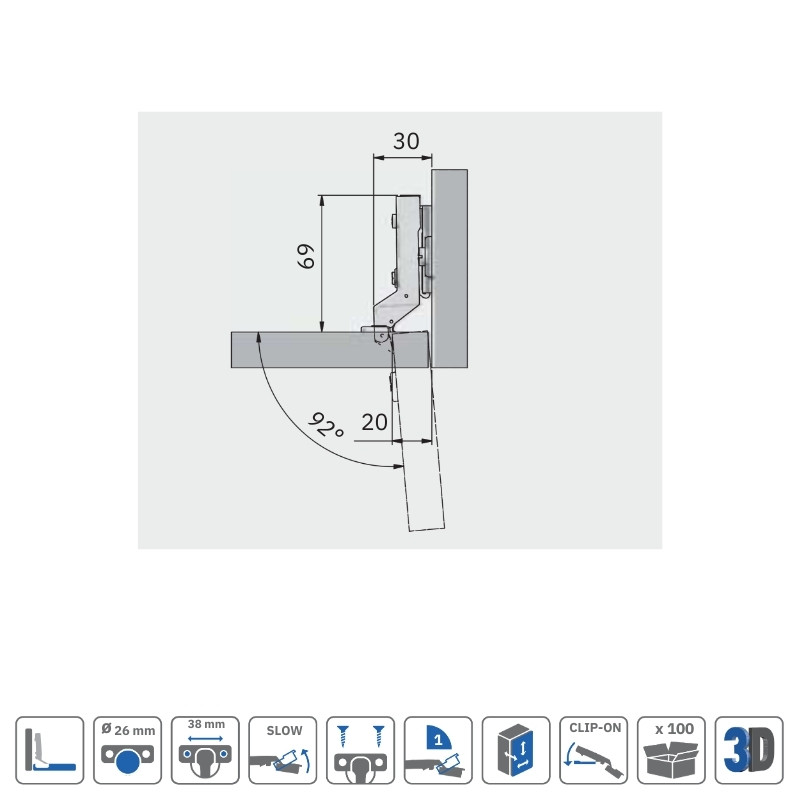

Technical specifications of the mini hinge for inset door

• Fitting type: hydraulic hinge for inset door

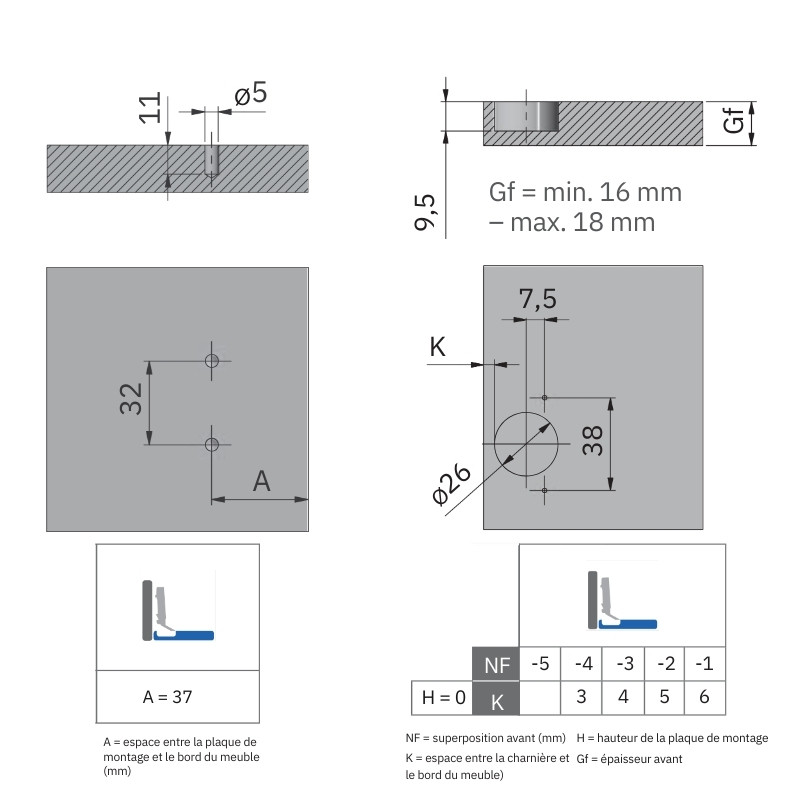

• Housing diameter: 26 mm
• Fixing centres: 38 mm
• Body material: steel and zinc alloy (ZnAl)
• Finish: nickel-plated for improved resistance

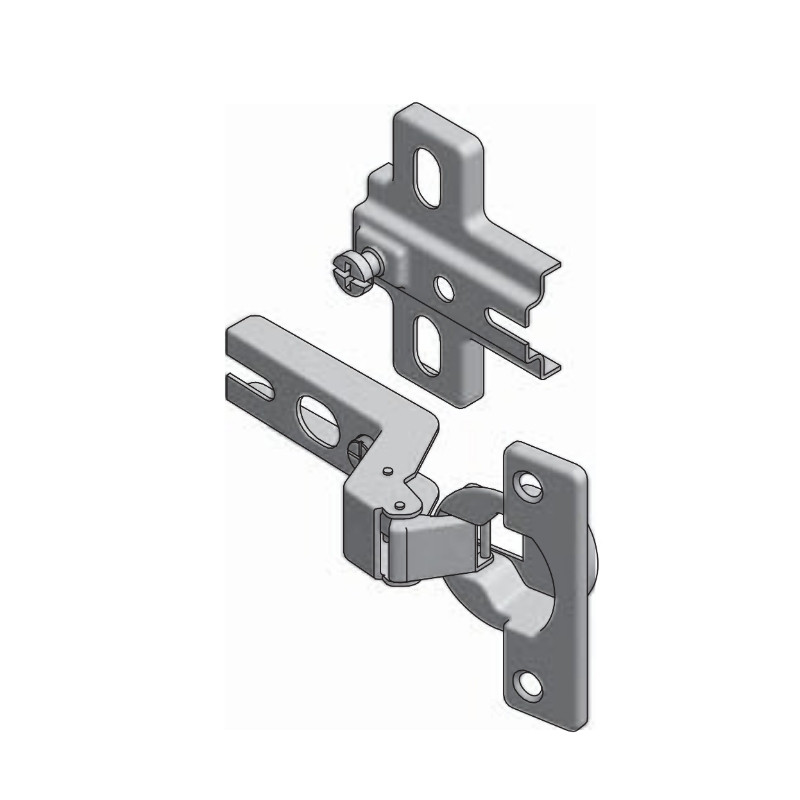

• Mechanism: clip-on for tool-free assembly
• Adjustment: precise 3D adjustment (height, depth, width)
• Mounting plate included: type H=0 with quick assembly
• Compatible surfaces: plywood, solid wood and lightweight particle boards
