Natural, high-performance and easy insulation for your van

Are you looking for an ecological, effective and easy-to-apply insulation solution? Soliege sprayed cork is made for you. Ready to use, manufactured in France from natural cork sourced from local forests, it combines thermal, acoustic and hygrometric insulation, whilst being rot-proof, lightweight and healthy.

Recommended by our Heode experts, it is ideal for quick and durable insulation of your van, even in the smallest corners. It is the easiest solution to apply on the market, ideal even for beginners.

Why insulate a van with sprayed cork?

Suitable for insulating a converted van, Soliege sprayed cork coating guarantees the elimination of thermal bridges thanks to thin-layer insulation in every nook and cranny.

Beyond being a thermal insulator, Soliege natural sprayed cork acts as a vapour barrier. The metal of your van is indeed a very good thermal conductor, thus promoting the formation of water vapour, which over time is responsible for the appearance of rust spots on the body. Sprayed cork protects the metal by preventing vapour from settling on it.

Soliege product advantages:

• Natural and healthy: without biocides, without fungicides, without VOCs
• Zero condensation: eliminates thermal bridges
• Acoustic comfort: reduction up to 19 dB
• High-performance thermal insulation (lambda 0.039 W/m.K)
• Humidity regulator: natural vapour barrier effect
• Easy application with rendering gun
• Product certified EXCELL+ Green Zone

Sprayed cork protects the metal from condensation, significantly reducing the risk of rust. It also absorbs vibrations and minimises resonance in the cabin.

Heode tip: once the interior space of your vehicle is completely clean (using Armaflex cleaner), first position the Armacomfort Barrier B 2mm acoustic insulation, second the Sprayed Cork natural coating thermal insulation and lastly Armaflex AF 19mm insulation or Biofib Trio, Isovégétal Flex or even MÉTISSE RT insulation panels.

How to apply sprayed cork in a van?

The application of a high-end professional sprayed cork perfectly suited for individuals. Sprayed cork is a thin-layer insulation solution that offers high-end thermal insulation for vans.

First of all, prepare with Heode all the necessary equipment for applying the sprayed cork. And familiarise yourself with the complete application process.

Equipment for protection and preparation:

• Protective plastic film
• Painter's tape
• Clean cloths or professional paper towels
• Armaflex Cleaner 1L (sheet metal cleaner)
• Bucket or clear water reservoir with graduated scale
• Overalls, gloves, goggles, shoe covers (optional but recommended)

Equipment for mixing:

• Large mixing bucket
• Shovel or scoop for transfer
• Professional mixer or mixing attachment for drill

Equipment for spraying:

• Compressor 90L minimum (ideally 100L), 3 HP, flow rate ≥ 250L/min
• Professional rendering gun with 5L hopper (6 mm nozzle)

Equipment for finishing (optional):

• Natural pigment (anthracite or white)
• Oil-repellent treatment product
• 240-grit sandpaper

At what temperature should sprayed cork be applied in a van?

Spraying cork onto the sheet metal parts of your utility vehicle cannot be done at any temperature. This is why it is essential to have all the necessary equipment for its application. And it is recommended to follow a strict implementation process in order to successfully complete your sprayed insulation with biological cork coating.

To apply your thermal insulating cork coating, the Heode team recommends placing your vehicle in a sheltered space. This will allow you to leave the doors open for optimal drying!

If you are obliged to spray your cork coating outdoors, prefer dry weather with a perceived temperature of more than 15° up to a maximum of 35°.

What are the steps to apply sprayed cork?

Vehicle preparation

1. Remove plastic trim to expose all interior sheet metal
2. Carefully protect areas not to be covered (painter's tape, plastic film)
3. Thoroughly clean the sheet metal with Armaflex cleaner

Mixture preparation

1. Pour 6 L of clear water into a clean bucket
2. Gradually add 6 kg of Soliege cork whilst mixing
3. Mix until you obtain a smooth and flexible paste

Application

1. Spray the cork with a suitable gun connected to a compressor (4 bars min.)
2. Apply the material in thin coats
3. Clean all equipment immediately after each coat

Drying & subsequent coats

1. Leave to dry for 24 to 48 hours in a sheltered space with doors open
2. Repeat the operation for a second or third coat

Finishing (optional)

1. Pigment to be added only in the final coat
2. Sanding possible after complete drying for a smooth or exposed finish

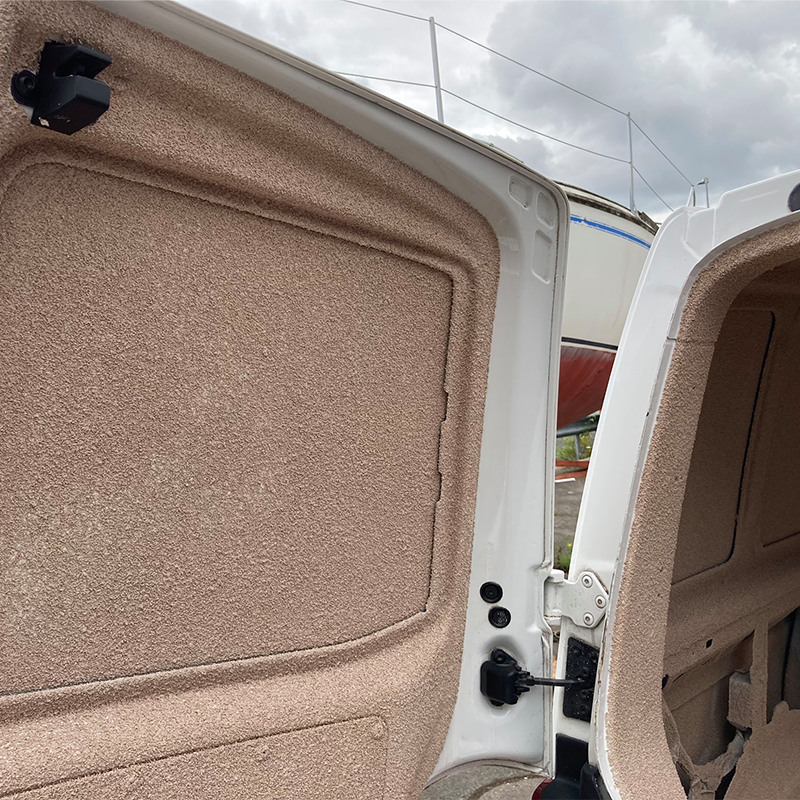

Whether raw or pigmented, sprayed cork offers a beautiful finish in the interior space of a converted van. Some vanlifers have chosen to leave the cork covering their rear doors exposed, for example.

Now it's your turn to enjoy the qualitative benefit of sprayed cork insulation in your converted utility vehicle! Buying SOLIEGE ready-to-use sprayed cork means ensuring you have the right material to successfully insulate and eliminate all thermal bridges!

Heode meets the needs of travellers seeking quality materials and provides the best support for their van conversion project!

What is sprayed cork made of?

Find in this section the technical characteristics of sprayed cork insulation.

The Soliege solution is a single-component dry formulation of natural cork granules, to be reconstituted in water, which dries after application on all types of surfaces.

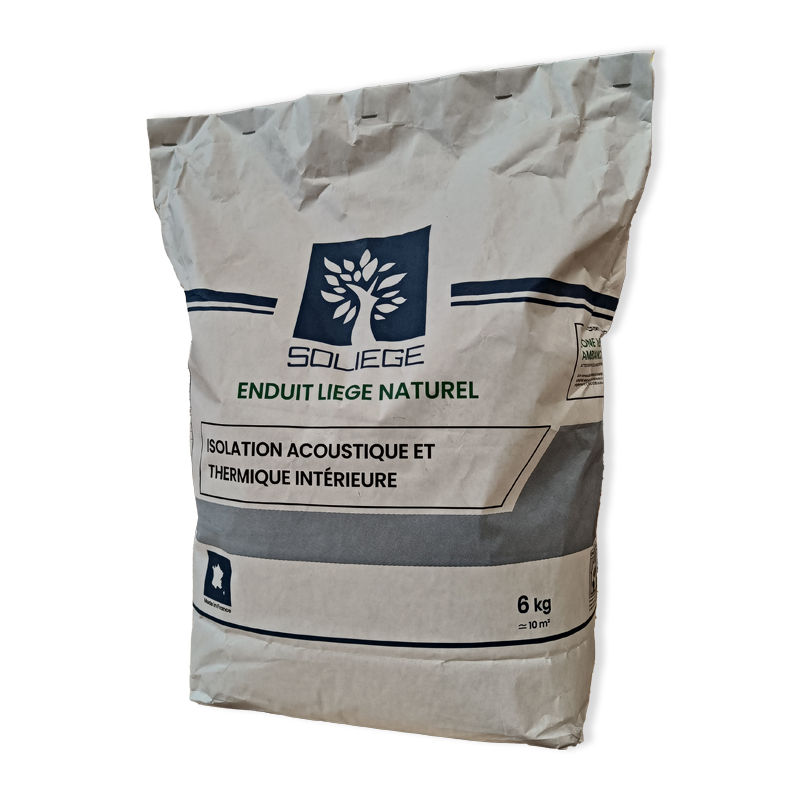

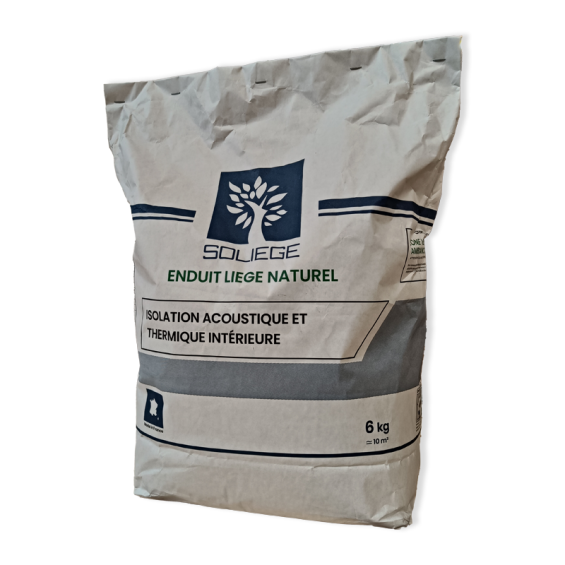

• 6kg bag of ready-to-use natural cork granules
• Bag dimensions (L x W x H): 30 x 17 x 60 cm
• Ingredients: cork, natural fibres, mineral fillers, thickeners, binder
• Cork from forests in France (no biocides, fungicides or volatile organic compounds)
• Lightweight insulation
• 92% natural origin
• Green Zone certification issued by Excell Laboratory
• Simple application
• Thermal bridge elimination
• Noise reduction up to 19 dB
• Resistance to water vapour diffusion (reduction of any risk of corrosion), rot-proof insulation

How many bags of sprayed cork are needed to insulate a van?

Heode gives you some advice to help you order the number of 6kg bags of SOLIEGE natural cork coating you need to insulate your van!

6 kg of sprayed cork + 6 L of water = 12 kg of homogeneous paste to cover approximately 10m²

• Know the size of your vehicle.
• Know the dimensions (L x W x H) of the rear space (side panels, ceiling, floor, rear doors or tailgate) of your vehicle.
• Have an idea of the number of coats and therefore thickness of sprayed cork you want (one coat of sprayed cork is equivalent to 1mm thickness on average).

The data presented in the tables below includes bag estimates in relation to the average surface area in m² present in the cargo area of a Renault Trafic 3 from 2015 onwards, depending on its size.

For an L1H1 Renault Trafic 3 vehicle approximately 20m²:

For an L2H1 Renault Trafic 3 size vehicle, approximately 23m²:

Our Heode expert advice for sprayed cork

• Apply in a sheltered space, with doors open
• Prepare all equipment in advance for smooth work
• Work in pairs if possible: one person mixes, one person sprays
• The product can be stored for a few days in a hermetically sealed bucket with plastic film
• Compatible with insulation materials: Armacomfort Barrier B 2mm, Armaflex AF, Biofib Trio 45mm, Isovégétal Flex 45mm, MÉTISSE RT insulation 20kg/m³ - 45mm recycled cotton insulation panel

Example of high-performance combination, particularly on the side panels of your van:

1. Armacomfort 2 mm for thermal and acoustic insulation

2. Soliege sprayed cork (1 to 3 coats) for thermal insulation and thermal bridge elimination

3. Armaflex AF 19mm self-adhesive or Biofib Trio / Isovégétal Flex / MÉTISSE RT Insulation

If you are installing Biofib Trio, Isovégétal Flex or MÉTISSE RT Insulation panels, you must apply a vapour barrier in front of them for optimal and complete protection. The vapour barrier must be held by double-sided adhesive tape fixed directly to the metal.

FAQ about Soliege sprayed cork

Can sprayed cork be coloured?

Yes, you can customise the final appearance of the sprayed cork by adding a pigment to the mixture (cork + water). Heode offers natural pigments (white, anthracite) in pots or sachets. It is recommended to add the pigment only in the final coat. Use only one pigment at a time for a homogeneous finish. The lighter a pigment, the greater the amount to be added.

Is sprayed cork certified?

Yes, Soliege cork is certified by the EXCELL® / EXCELL+® Green Zone attestation, guaranteeing a very high level of quality. This certification ensures that the product does not emit harmful chemical compounds and respects users' living comfort.

Can I combine sprayed cork with other insulation materials?

Absolutely. Sprayed cork can be used in addition to other thermal or acoustic insulation materials. At Heode, we often recommend combining it with:

• Armacomfort Barrier B 2mm (must be installed before applying the sprayed cork),
• Armaflex AF 19mm self-adhesive (must be installed on completely dry sprayed cork) or Biofib Trio panels; Isovégétal Flex; MÉTISSE RT Insulation (must be installed on completely dry sprayed cork).

How long does it take to apply sprayed cork in a van?

The application of sprayed cork can be completed in half a day if the equipment is ready. You then need to allow between 24 and 48 hours of drying time per coat. For insulation in 2 to 3 coats, allow between 2 and 4 days depending on weather conditions.

Is sprayed cork suitable for all surfaces in a van?

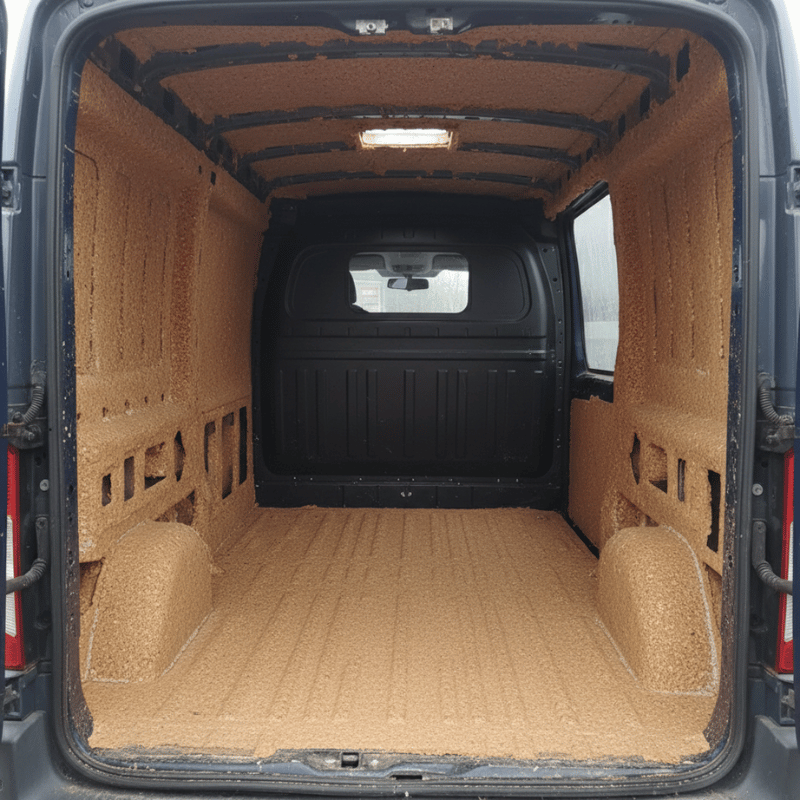

Yes, it can be applied to side panels, ceiling, floor, rear doors or tailgate. Thanks to its paste texture, it adheres to complex shapes and hard-to-reach corners. It is particularly recommended for metal areas prone to condensation.

Can sprayed cork be left exposed?

Yes! Once dry, it offers a natural and textured finish that is highly appreciated. You can choose to sand it for a smoother finish, or add a pigment to colour it. Some travellers leave it visible on the side panels or rear swing doors.

Is sprayed cork environmentally friendly?

Absolutely. It is a product of natural origin, without solvents, VOCs or chemical additives. It comes from French forests and benefits from local manufacturing. It is EXCELL+ certified for its purity and harmlessness.
