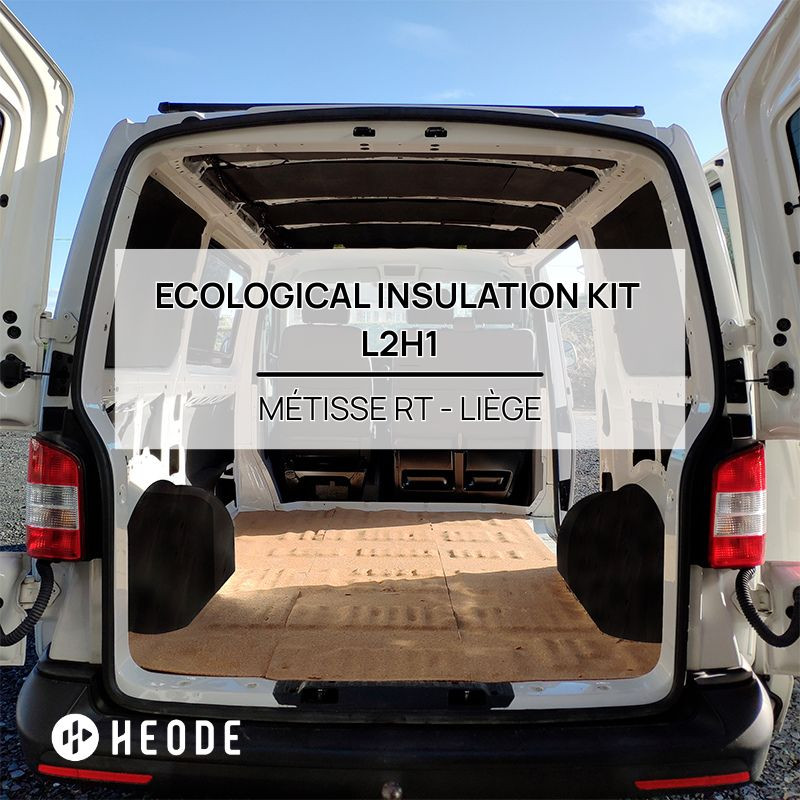

Insulation for the L2H1 van: the eco-friendly, clever and complete kit !

You've scoured the internet for the best products to insulate your L2H1 van, but you can't decide which one to adopt? If you're looking for the ideal solution that's ready to use, environmentally friendly and affordable, then your search ends here. At Heode, we have designed the insulation kit you need ! !

Building on our expertise and the success of our solutions such as l2H1 Armaflex and cork flakes kit, our van fitting specialists have developed this kit. It combines thermo-acoustic performance with respect for the planet, without sacrificing your budget. Each component has been selected for its effectiveness and its ability to respond to the specific constraints of each area of a van (humidity, difficult access areas, crushing, etc.).

This kit is perfect for insulating L2H1 versions of Renault Trafic or Master. It is also suitable for Ford Transit Custom, Peugeot Expert, Citroën Jumpy, Opel Vivaro, Fiat Scudo, Toyota Proace and other L2H1 vans.

4 mm cork: a natural, foolproof base for your floor

Cork is the obvious choice for the floor of your L2H1. This 100% bio-sourced material has exceptional properties.

• Rot-proof it provides long-lasting protection against mould.
• Incompressible ideal for underfloor use, it can withstand repeated driving and road vibrations.
• Natural insulation it provides optimum thermal and acoustic comfort, while being 100% biosourced and biodegradable.

To make installation as easy as possible, it's packaged in rolls. Simply use your floor covering as a template and follow the contours with a cutter. Frankly, you'd almost have to do it on purpose to get it wrong !

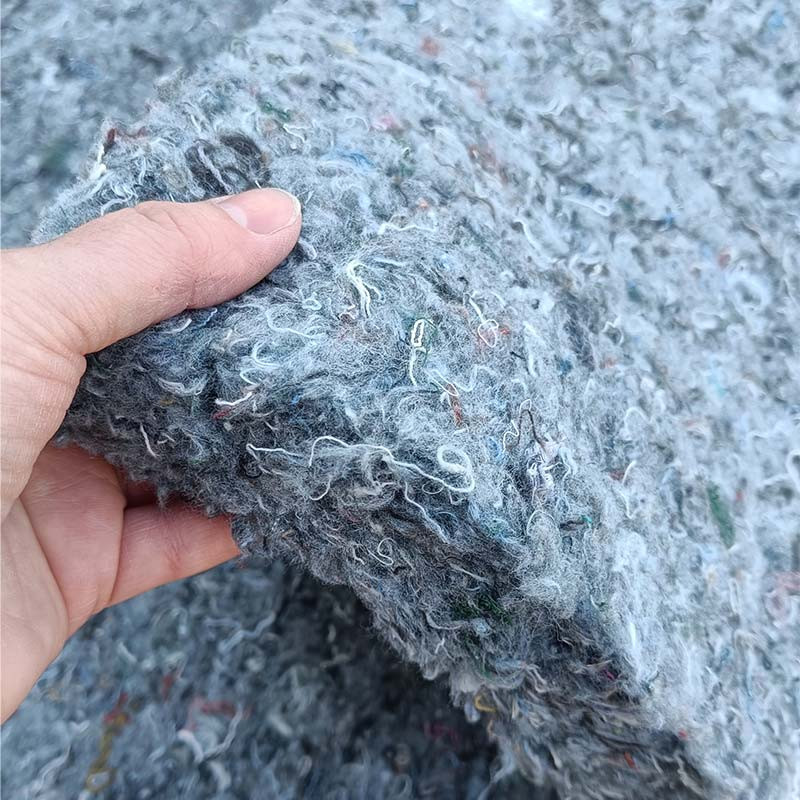

Métisse RT: the versatile solution for walls, doors and reinforcements

French production, a commitment to solidarity, recycled fibres, high performance... To list all the qualities of Métisse RT without forgetting any is a complicated task because there are so many !

Métisse RT 20kg/m3: unrivalled thermal and acoustic comfort

Want to turn your van into a haven of peace? Métisse RT is the answer to insulating every nook and cranny, from the ceiling to the walls, including the most complex reinforcements.

Sa thermal performance is remarkable (lambda of 0.039 W/m-K). Thanks to its excellent thermal phase shifting, it keeps you warm in winter and cool in summer. When it comes to silence, it provides sound insulation of up to 68 dB. Traffic noise will be a distant memory !

For your peace of mind and your health, it benefits from a fire-retardant, anti-fungal and anti-bacterial treatment applied to the very heart of the fibre.

Métisse RT: a committed choice for the planet and for people

Insulating your L2H2 with Métisse RT means opting for a product that makes sense, not only for the environment but also for the French social economy. It's because of these values that we include it in other solutions, such as our l2H1 mixed kit with Biofib or our very popular l2H1 Armaflex and Métisse RT mixed kit.

Made from recycled textile fibres (at least 70% cotton!) and 15% polyester binder, it gives a second life to clothes. This great initiative is supported by Le Relais (Emmaüs network), which works to promote professional integration. And because it's made in France, it's a local, socially responsible and environmentally-friendly choice. You might think it's perfect, but it's even better: it's also fully recyclable ! !

High-performance insulation that won't cost you an arm and a leg

People often think that quality goes hand in hand with a high budget. Métisse RT proves the contrary! Compared with Armaflex or other insulating materials such as hemp fibre, its value for money is simply unbeatable.

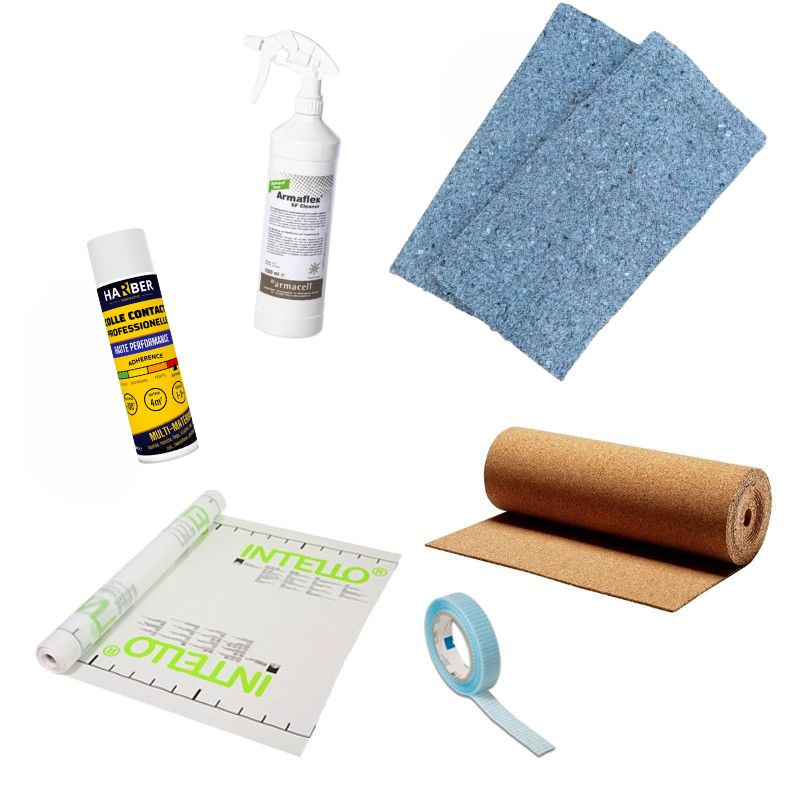

Advice from the team Heode to install the ecological insulation kit for L2H1

Worried about insulating your van yourself? This kit is designed so that anyone can do it, even a complete beginner! How do we do it? It's simple: we've calculated the right quantities for your L2H1 and selected products that are ultra-simple to install, even including a small margin in case of error.

The first stage will involve clean thoroughly all the walls of your van with Armaflex solvent-free cleaner. Designed by Armacell, this cleaner is less polluting because it contains no solvents or antifreeze. It effectively removes traces of grease, rust and other dirt, which are essential for ensuring that insulation adheres properly !

For this kit, we have opted for Métisse RT panels, which are much more durable and easier to clean easy to handle than rolls, which also limits the number of cuts. Flexible and lightweight, it cuts effortlessly with simple knives with smooth or corrugated blades. The big plus: no toxic emissions (A+ rated) for risk-free installation. And the little extra? It doesn't scratch! This makes all the difference.

For solid fixing, contact spray adhesive is supplied in the kit. Once the panels have been installed, don't forget the vapour brake (included). It's essential to protect your installation from damp and ensure that it stays in place maximum longevity.

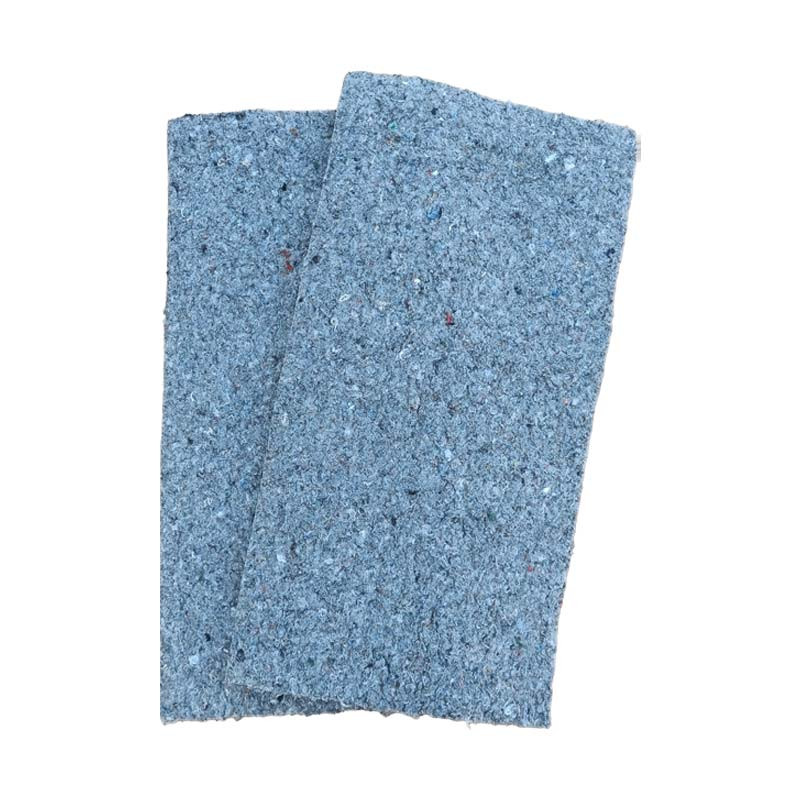

Technical characteristics of MÉTISSE RT 45 mm

• Thickness: 45 mm.
• Density: 20 kg/m³.
• Thermal resistance (R): 1.15 m²-K/W. An effective barrier against high and low temperatures.
• Thermal conductivity (λ): 0.039 W/(m-K). Proof of its high performance.
• Reaction to fire: Euroclass D-s2,d0 (bare product). For your safety.
• Moisture resistance: Wp = 3.73 kg/m² (short-term water absorption).
• Water vapour permeability: µ = 1.47. Lets the structure breathe.
• Sd value: 0.066 m (45 mm thick).
• Thickness recovery after compression: 100%. Does not deform.
• Mould resistance: Class 0. For a healthy environment.
• VOC emissions: A+. Quality indoor air.
• Panel dimensions: 1200 mm x 600 mm.
• Weight of one panel: 0.65 kg. Ultra-light to handle.

These values are ACERMI certified (n°14/179/918) and validated by independent laboratories.

FAQ: your questions, our clarifications !

Can Métisse RT be installed over sprayed cork ?

Yes, absolutely! Métisse RT is an excellent complement to sprayed cork. These two materials can be combined for optimum insulation. Spray cork provides an initial thermal and anti-condensation barrier, while Métisse RT improves thermal and sound insulation. Just make sure the sprayed cork is smooth and leave to dry for at least 24 hours before laying Métisse RT.

Is a vapour barrier essential with Métisse RT? Why not a vapour barrier ?

Yes, the vapour barrier is crucial with Métisse RT, as it is with most fibrous insulation materials. Métisse RT is breathable: it lets water vapour through. The vapour brake regulates this passage and prevents condensation in the insulation and on the sheet metal, which in turn prevents degradation of the insulation and corrosion.

Can I opt for a vapour barrier instead of a vapour brake ?

A vapour barrier is completely impermeable to water vapour. In a van, where variations in temperature and humidity are frequent, a vapour barrier could trap moisture in the Métisse RT structure, which would be counter-productive. The vapour barrier, on the other hand, has controlled permeability (hygrovariable). It allows any moisture to escape from the insulation, while limiting the entry of moisture from inside the van. This is the best solution for healthy, long-lasting insulation, especially with natural fibre insulation like Métisse RT.

Is this ecological insulation kit suitable for my large van ?

The quantities in this kit are calculated for large vans (L2H2). Think Renault Trafic/Master L2H2, Peugeot Expert/Boxer L2H2, Citroën Jumpy/Jumper L2H2, Ford Transit Custom L2H2, Opel Vivaro/Movano L2H2, Fiat Ducato L2H2 and similar models.
