Finally breathe freely in your van: the silent and powerful 4-in-1 ventilated skylight

Manage the temperature of your van effortlessly and sleep in peace. One of the greatest challenges of life in a converted van is maintaining a comfortable interior climate. In summer, heat builds up and turns the living space into an oven. In winter, condensation takes over, threatening your fitout with damp and mould. Not to mention cooking smells that linger or the feeling of stale air when you wake up.

The AirPlus fan Black Edition ventilated skylight from NOMADIC ARK is the all-in-one solution designed to solve these problems. This is not merely a roof opening; it is a complete air management system. Thanks to its ultra-silent brushless motor and its powerful airflow of 3000 m³/h, it renews the air in your vehicle in an instant.

Imagine being able to cook without filling your living space with smoke, showering without creating a sauna, or sleeping on a warm summer night with a controlled cool breeze. Its reversible 10-speed fan lets you choose between extracting hot air (ideal during the day) or drawing in fresh air (perfect for the night). All this, in remarkable silence (less than 29 dB at average speed), preserving the peace and quiet of your nights.

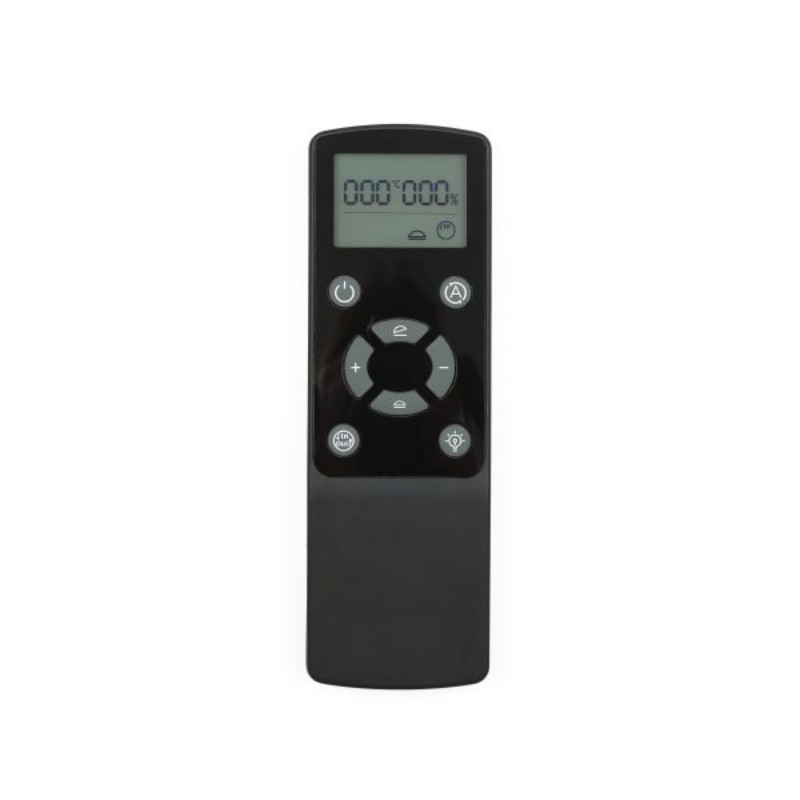

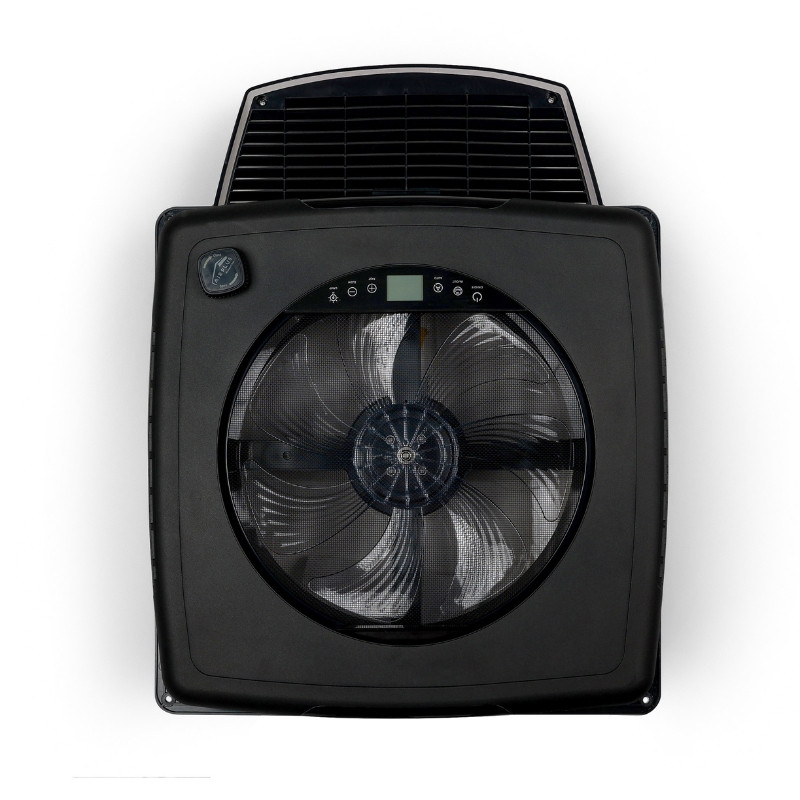

This "Black Edition" model with its opaque black dome integrates perfectly with your van's design, while including "deluxe" features as standard: a blackout blind for total darkness and an integrated mosquito net. No need to purchase separate accessories. Control is effortless via the integrated touch panel or the supplied remote control, allowing you to adjust everything, including the ambient LED lighting, without getting out of bed.

Key features of the AirPlus fan Black Edition

• Absolute acoustic comfort : Its brushless motor (brushless) is designed for discretion. It provides powerful ventilation without the noise pollution of traditional fans, guaranteeing you peaceful nights.
• The 4-in-1 power : This skylight combines four essential functions: powerful ventilation/extraction, integrated LED lighting, a total blackout blind and a mosquito net. A complete solution that optimises your layout and budget.
• Total air control : With 10 speeds, a reversible airflow (extraction or intake) and an intelligent automatic mode, you have full control over your environment. The integrated thermostat adjusts ventilation according to the ambient temperature for constant comfort.

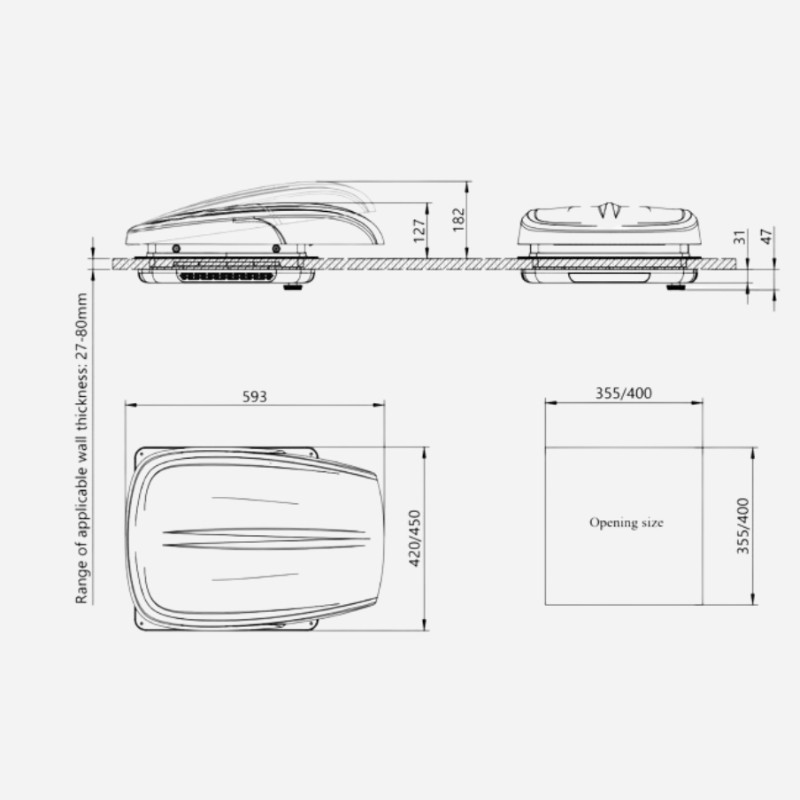

• Simplified installation : Designed to fit standard roof cut-outs of 400 x 400 mm and a wide range of thicknesses (27 to 80 mm), it is easy to install. It fits the majority of van and campervan configurations.

Technical specifications of the AirPlus fan Black Edition

• Product type : 12V ventilated skylight
• Cut-out dimensions : 400 x 400 mm
• Compatible roof thickness : 27 mm to 80 mm
• Max. airflow : 3000 m³/h (approximately 50 m³/min)
• Motor : Brushless (brushless), silent
• Noise level : < 53 dB (max), < 29 dB (average speed)
• Supply voltage : 12V DC (range 9V to 16V)
• Power consumption : 0.25A to 2A (Fan: 20W max / Lighting: 4W)
• Features :
  • 10-speed fan
  • Reversible airflow (intake and extraction)
  • Automatic mode (thermostat)

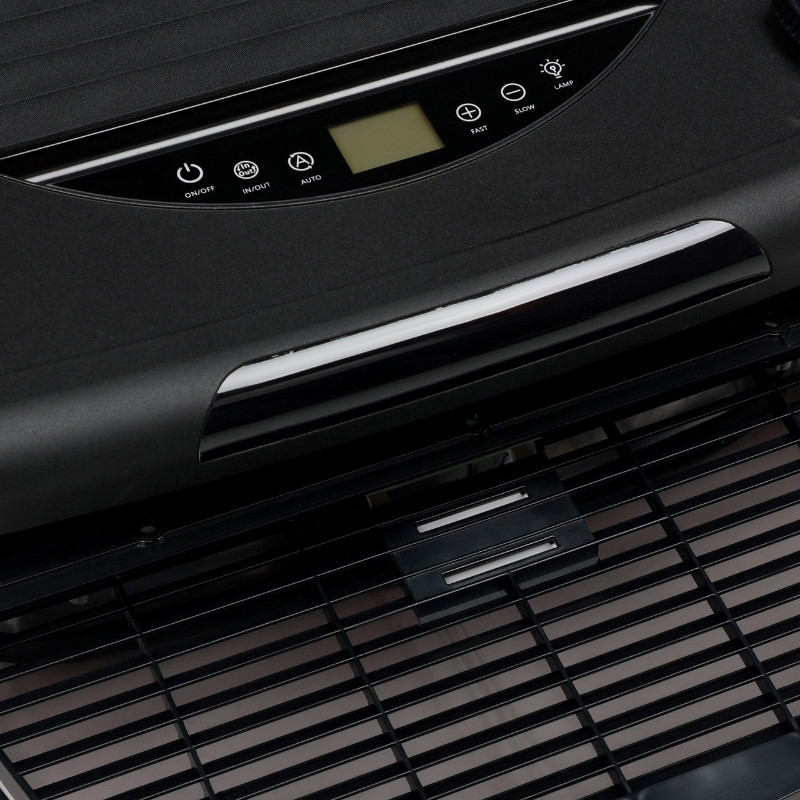

• Controls : Integrated touch panel and remote control
• Lighting : Yes, integrated LED strips (cool white light)
• Included accessories : Pleated blackout blind and integrated mosquito net
• Dome colour : Opaque black (Black Edition)
• Protection rating : IPX4
• Not suitable for VASP homologation

Installation and assembly tips from Team Heode for the AirPlus Fan skylight

The AirPlus fan installation is designed to be as straightforward as possible, fitting openings of 400 x 400 mm, the standard for this type of equipment.

For a successful installation and a perfect seal, you will need:

• A high-quality sealant, such as Sikaflex 521 UV, to create a durable seal between the skylight and the bodywork.
• An interior mounting frame (wooden counter-frame) if the thickness of your roof is less than 27 mm or to ensure a clean finish on the inside.
• The necessary 12V wiring for connection to your electrical system.

Psssst... Have you thought about our skylight mounting kit with screws and sealant strip?

Key installation steps :

1. Preparation : If you do not have an opening, carefully mark and cut an opening of 400 x 400 mm in your roof. Treat the cut metal with a rust inhibitor.
2. Cleaning : Thoroughly degrease the roof surface where the skylight will be fitted.
3. Waterproofing : Apply a generous and even bead of Sikaflex sealant around the lower perimeter of the skylight frame.
4. Positioning : Carefully place the skylight over the opening.
5. Fixing : From the inside, screw the supplied inner frame into the outer frame. Tighten gradually and in a cross pattern to compress the sealant evenly.
6. Finishing : Remove excess sealant on the outside for a clean seal.
7. Connection : Connect the 12V power cables (red + / black -) to your electrical distribution panel, observing polarity.

FAQ section (Your questions, our answers)

Question 1 : "Can I use the AirPlus fan when it rains?"

Answer : This model is designed to be waterproof when closed (IPX4). However, unlike some models with a specific protective cover, it is not recommended to leave it open in ventilation mode during heavy rain. Use in light drizzle is possible, but caution is advised to protect the motor.

Question 2 : "How do you guarantee a perfect seal during installation?"

Answer : The secret lies in the preparation. The metal surface must be impeccably clean, dry and degreased. Use a quality sealant (such as Sika 521 UV or similar) and apply a generous, continuous bead. When tightening the inner frame, do so gradually so that the sealant is compressed evenly without being completely squeezed out.

Question 3 : "What is the actual power consumption in night mode?"

Answer : This is one of its key strengths. Thanks to the brushless motor, power consumption is very low. At the lowest speeds, perfect for night time (around 0.25A to 0.5A), the impact on your auxiliary battery is minimal, allowing you to use it all night without worrying about battery life.
