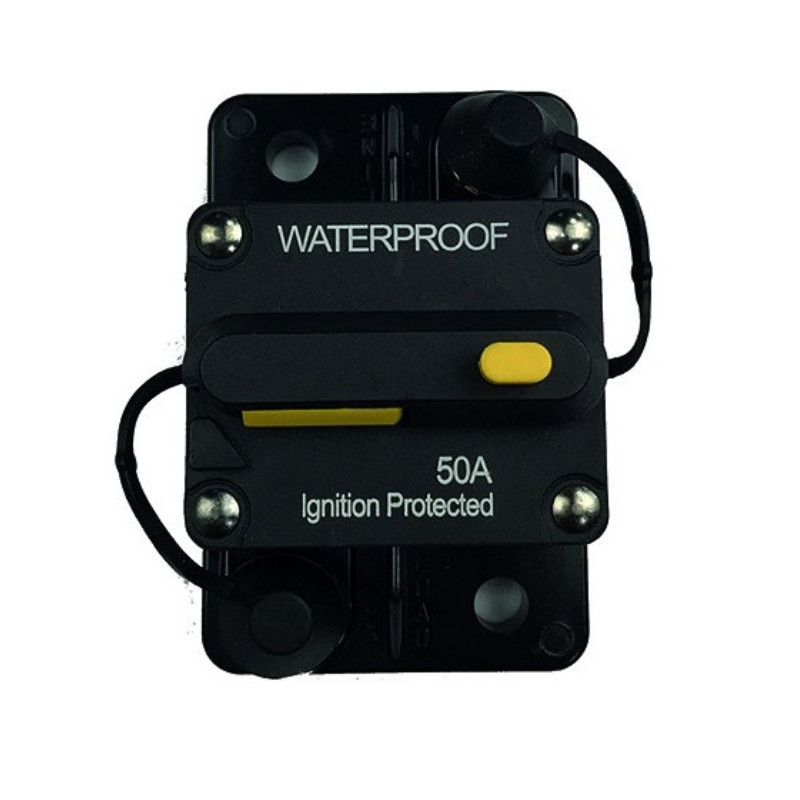

Thermal Circuit Breaker with Manual Reset

The manual reset thermal circuit breaker protects your 12V/24V electrical installation in your converted van. In the event of overcurrent, it trips to protect your equipment; a simple action on its lever is then sufficient to reset it. In addition to its protection function, it also serves as a main circuit breaker, ideal for securing your system during long periods of shutdown or maintenance. Robust and waterproof (IP67), it is easily installed surface-mounted for quick access. For optimal installation, it is crucial to use an H07-VK electrical cable with a cross-section suited to the chosen current rating.

This resettable circuit breaker is available in two versions to perfectly suit your needs:

• 50A Circuit Breaker: Ideal for protecting power supply lines for smaller consumers or moderate power DC/DC boosters.
• 100A Circuit Breaker: Perfect for securing a main line, a voltage converter or equipment with higher energy consumption.

Technical Specifications of the Thermal Circuit Breaker

• Type of protection: Low voltage thermal circuit breaker
• Available current ratings: 50A, 100A
• Maximum operating voltage: 48V DC
• Mechanism: Manual reset, circuit breaker function
• Mounting: Surface-mounted
• Protection rating: IP67 (dust-tight and protected against temporary immersion)
• Compatible surfaces: Mounting on partition or technical panel
• Dimensions (LxWxH): 86 x 48 x 37 mm
