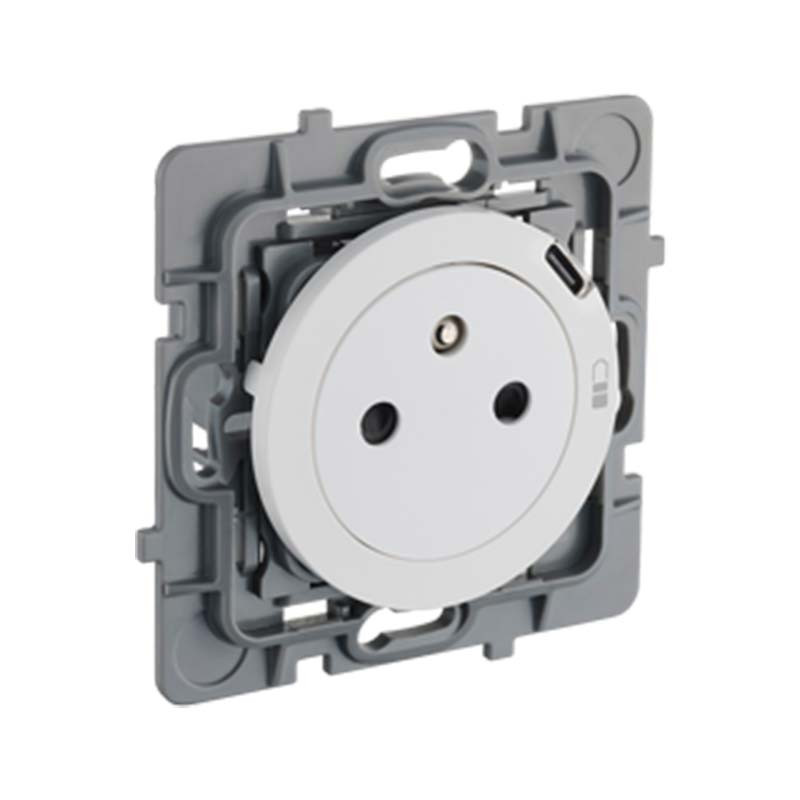

A functional and modern socket for your converted van

Optimise your 230V electrical installation in a converted van with this 230V flush-mounted power socket with USB-C port. Designed to meet the specific needs of travellers, it allows you to power electrical equipment whilst charging a mobile phone or tablet without a mains adapter (charger).

With its flush-mounted design and white or black finish (your choice), this wall socket will fit perfectly into your interior fitting.

Why choose this 230V socket with USB-C port?

• Dual use: Plug in an electrical appliance compatible with 230V current and simultaneously charge your smartphone or any electronic device via the USB-C port.
• Safe and compliant: NF & CE certified product, perfect for van installation.
• Suitable for travellers: Optimise your electrical autonomy by having a 230V to 12V charger and a 12V to 230V converter or a multiplus in your installation.
• Discreet and robust design: Modern and sleek flush-mounted socket.

How to install this power socket?

Required equipment:

• 1-gang waterproof flush-mounting box (sold separately on our site)
• 230V flush-mounted power socket with 1.5 A USB-C port
• 1-gang finishing plate (sold separately on our site)

Required tools:

• 1 wire cutter
• 1 wire stripper
• 1 screwdriver

Installation steps:

1. Switch off the electrical supply before any work.

2. Strip the 3G2.5mm² cable over a length of a few mm. As well as the conductor wires (Live, Neutral, Earth) each over a length of 11mm.

3. Insert the wires, each one, up to the stop in their respective terminal at the back of the socket.

4. Place the 230V flush-mounted power socket with USB-C port in white or black (depending on which one you choose) in a 1-gang flush-mounting box (already installed beforehand) and screw it in.

5. Add a 1-gang finishing plate in white, black or sea green (depending on your choice) for a clean and aesthetic finish. Prepare for your next trip by equipping your van with a 230V socket with USB-C port now!

Technical specifications of the 230V socket with USB-C port

• Socket type: 2P+E with 1 USB-C port
• Socket model: Flush-mounted (Safety ensured when a male plug is not inserted.)
• Terminal type: Automatic
• Socket voltage: 250V - 50Hz
• Socket current rating: 16A
• USB-C port current: 1.5A
• Material: High-resistance plastic
• Colour: White or Black
• Dimensions (LxWxD): 71 x 71 x 36 mm
• Installation: To be screwed onto a 40mm deep flush-mounting box (product sold separately on our site)
• Easily snap-in socket support for creating a double socket or multi-socket
• IP21
• NF: yes
• CE: yes
