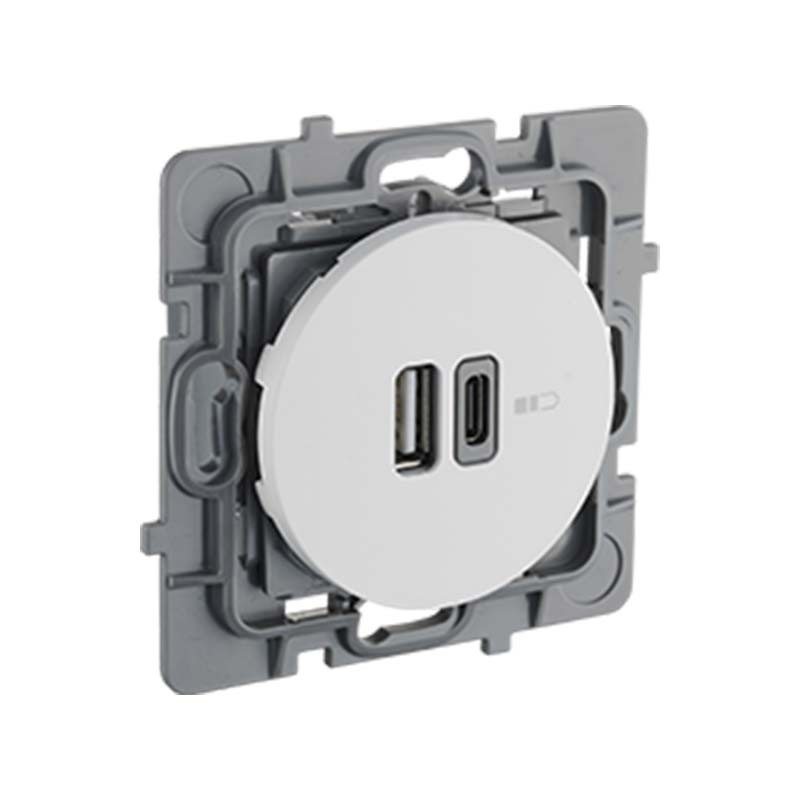

Flush-mounted socket with USB-A port and USB-C port 3A - Colour of choice - DEBFLEX

Coming soon

Flush-mounted socket with USB-A port and USB-C port 3A - Colour of choice - DEBFLEX

5.218_B
€32.90 Inc. VAT

Flush-mounted socket equipped with a USB-A port and a USB-C port. Available in matt pure white or matt intense black, it is perfect for a 12V/230V electrical installation in a converted utility vehicle. Ideal for simultaneously charging several electronic devices without requiring a mains charger. Easy to install, it integrates discreetly into your conversion and can be combined with other sockets for a bespoke configuration.

Description
Colour : White

A double USB socket designed for vanlife

With its two USB ports (A and C), this flush-mounted socket will efficiently charge all your devices: smartphone, tablet, GPS, power bank, Bluetooth speaker and other electronic equipment that can accompany you on road trips.

It adapts to any interior design style, regardless of its colour. Its stable and robust installation allows for safe use.

Fast charging and dual compatibility

This double USB socket ensures fast and simultaneous charging thanks to its USB-A and USB-C ports. Its 3A current allows you to power two devices at the same time, or use a single port for faster charging. A must-have for travellers who want to stay connected on the road.

Why is this double USB socket ideal for a converted van?

  • Universal charging: Compatible with several types of USB cables.
  • Fast charging: Up to 3A for charging an electronic device.
  • Easy installation: Automatic connection, stable and secure fixing.
  • Suitable for road trips: Provided you have a 230V to 12V charger and a 12V to 230V converter or a multiplus in your electrical system.
  • Modular: Stack several double USB sockets for a personalised configuration adapted to your needs.

Prepare your trips with an optimised power supply!

How to install this socket with USB-A port and USB-C port?

Required materials:

Required tools:

  • 1 wire cutter
  • 1 wire stripper
  • 1 screwdriver

Installation steps:

1️. Cut off the electrical supply before any intervention.

2️. Strip the 3G2.5mm² cable to a length of a few mm. As well as the conductor wires (Phase, Neutral) each to a length of 6mm. The protective conductor wire (Earth) should not be stripped as it is not necessary here.

3. Insert the Phase and Neutral wires, each one, until they stop in their respective terminal at the back of the socket.

4. Place the flush-mounted socket with USB-A port and USB-C port in white or black colour (depending on which one you choose) into a 1-gang flush-mounting box (previously installed) and screw it in.

5. Add a 1-gang finishing plate in white, black or sea green colour (according to your choice) for a clean and aesthetic finish.

What are you waiting for to equip your vehicle with a practical and ultra-functional charging solution!

The technical characteristics of the flush-mounted socket with USB-A port and USB-C port 3A

  • Socket type: Dual USB-A and USB-C port
  • Socket model: Flush-mounted
  • Current: USB-A alone: 3A / USB-C alone: 3A / USB-A + USB-C simultaneously: 3A
  • Material: High-resistance plastic
  • Colour: White or Black
  • Dimensions (LxWxD): 71 x 71 x 36 mm
  • Installation: To be screwed onto a flush-mounting box with a depth of 40mm (product sold separately on our website)
  • Socket support easily stackable for creating a double socket or multi-socket
  • IP21
  • NF: yes
  • CE: yes
