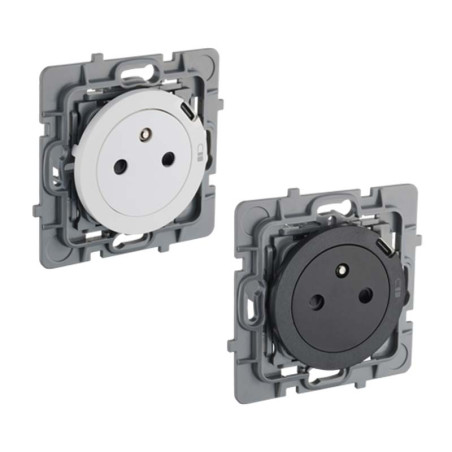

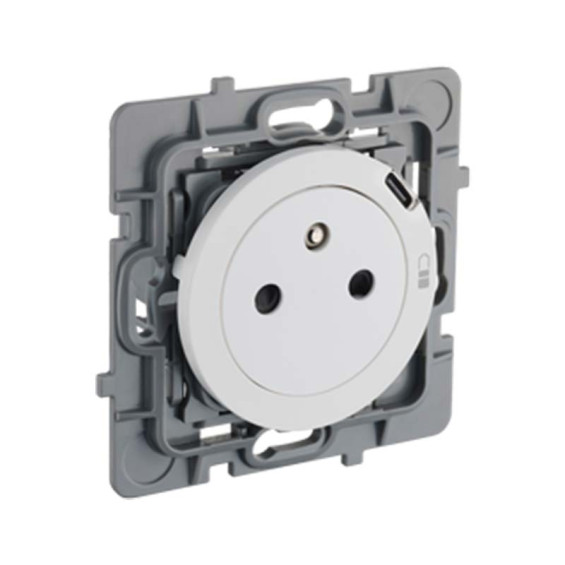

230V flush socket outlet with 1.5A USB-C port - Choice of colours - DEBFLEX

A functional, modern socket for your converted van

Optimise your 230V electrical installation in a converted van with this 230V flush socket with USB-C port. Designed to meet the specific needs of travellers, it can be used to power electrical equipment while recharging a mobile phone or tablet without the need for a mains adapter (charger).

With its flush-fitting design and choice of white or black finish, this wall socket will blend in perfectly with your interior design.

Why choose this 230V socket with USB-C port?

• Dual use: Plug in a 230V-compatible electrical appliance and charge your smartphone or other electronic device at the same time via the USB-C port.
• Safe and compliant: NF & CE certified, perfect for installation in vans.
• Suitable for travellers: Optimise your electrical autonomy by having a 230V to 12V charger and a 12V to 230V converter or a multi-purpose unit in your installation.
• Discreet, robust design: A modern, sleek flush-mount socket.

How to install this plug?

Equipment required :

• 1-station watertight flush-mounted box (sold separately on our site)
• 230V flush-mount socket outlet with 1.5A USB-C port
• 1-station cover plate (sold separately on our website)

Tools required :

• 1 wire cutter
• 1 wire stripper
• 1 screwdriver

Installation steps :

1. Switch off the power supply before carrying out any work.

2. Strip a few mm of the 3G2.5mm² cable. Strip the conductor wires (Phase, Neutral, Earth) to a length of 11mm each.

3. Insert the wires as far as they will go into their respective terminals at the back of the plug.

4. Place the 230V flush socket outlet with USB-C port in white or black (whichever you choose) in a 1-station flush-mounted box (already installed) and screw it in place.

5. Add a white, black or aqua green (your choice) 1-station cover plate for a clean, attractive finish. Prepare for your next trip by fitting your van with a 230V socket with USB-C port now!

Technical specifications of the 230V socket with USB-C port

• Socket type: 2P+T with 1 USB-C port
• Socket model: Flush (Safety guaranteed when a male plug is not inserted.)
• Type of terminals: Automatic
• Socket voltage: 250V - 50Hz
• Socket current: 16A
• USB-C port current: 1.5A
• Material: High-strength plastic
• Colour: White or Black
• Dimensions (LxWxD): 71 x 71 x 36 mm
• Installation: To be screwed onto a 40 mm deep flush-mounted box (product sold separately on our site)
• Socket support can be easily nested to create a double or multi-socket outlet
• IP21 RATING
• NF: yes
• CE: yes
