Flush socket with USB-A port and USB-C 3A port - Choice of colours - DEBFLEX

5.218_B
€27.42 TTC

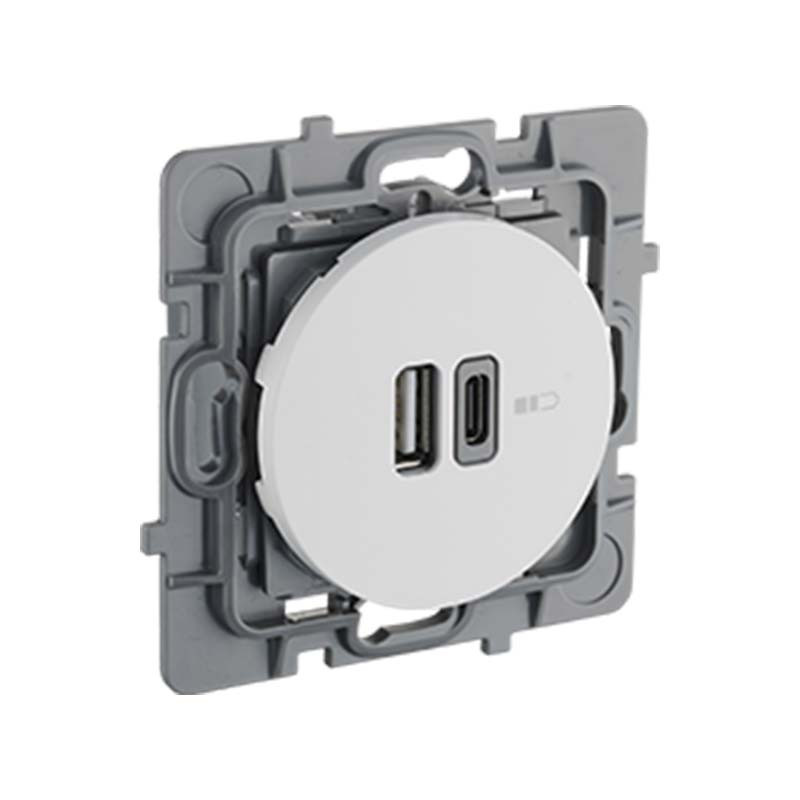

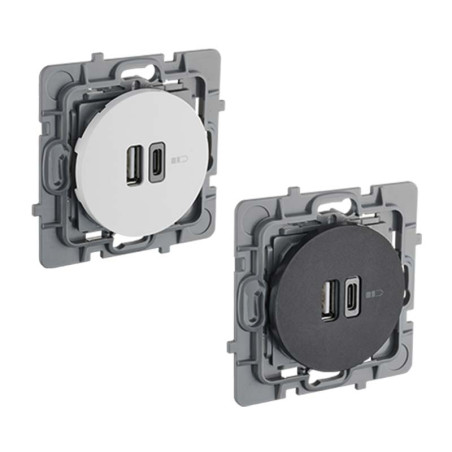

Flush-mount socket fitted with a USB-A port and a USB-C port. Available in pure matt white or intense matt black, it's perfect for a 12V/230V electrical installation in a converted van. Ideal for simultaneously recharging several electronic devices without the need for a mains charger. Easy to install, it blends discreetly into your interior and can be combined with other sockets for a made-to-measure configuration.

Description
In progress

A dual USB socket designed for vanlife

With its two USB ports (A and C), this flush-mount socket will charge all your devices efficiently: smartphone, tablet, GPS, external battery, Bluetooth speaker and other electronic equipment that can accompany you on road trips.

It fits in with any style of interior, whatever the colour. Its stable, robust installation means it's safe to use.

Fast charging and dual compatibility

This dual USB plug provides fast, simultaneous charging thanks to its USB-A and USB-C ports. Its 3A current allows you to power two devices at the same time, or use a single port for faster charging. A must-have for travellers who want to stay connected on the road.

Why is this double USB socket ideal for use in converted vans?

  • Universal charging: Compatible with several types of USB cable.
  • Fast charging: Up to 3A for charging electronic devices.
  • Easy installation: Automatic connection, stable and secure fixing.
  • Suitable for road trips: Provided you have a 230V to 12V charger and a 12V to 230V converter or a multiplus in your electrical system.
  • Modular: Nest several double USB sockets for a customised configuration to suit your needs.

Prepare for your holidays with an optimised power supply!

How to install this plug with USB-A port and USB-C port?

Equipment required:

Tools required :

  • 1 wire cutter
  • 1 wire stripper
  • 1 screwdriver

Installation steps :

1️. Switch off the power supply before any work is carried out.

2️. Strip the cable 3G2.5mm² over a length of a few mm. As well as the conducting wires (Phase, Neutral) over a length of 6mm each. Do not strip the protective conductor wire (Earth) as it is not required here.

3. Insert the Phase and Neutral wires as far as they will go into their respective terminals at the back of the socket.

4. Place the flush socket with USB-A port and USB-C port in white or black (whichever you choose) in a 1-station flush-mounted box (already installed) and screw it in place.

5. Add a white, black or aqua green (depending on your choice) 1-station cover plate for a clean, attractive finish.

What are you waiting for? Equip your vehicle with a practical, ultra-functional recharging solution!

Technical specifications of the flush socket with USB-A port and USB-C 3A port

  • Socket type: Dual USB-A and USB-C port
  • Socket model: Flush
  • Intensity: USB-A only: 3A / USB-C only: 3A / USB-A + USB-C simultaneously: 3A
  • Material: High-strength plastic
  • Colour: White or Black
  • Dimensions (LxWxD): 71 x 71 x 36 mm
  • Installation: To be screwed onto a 40 mm deep flush-mounted box (product sold separately on our site)
  • Socket support can be easily nested to create a double or multi-socket outlet
  • IP21 RATING
  • NF: yes
  • CE: yes
