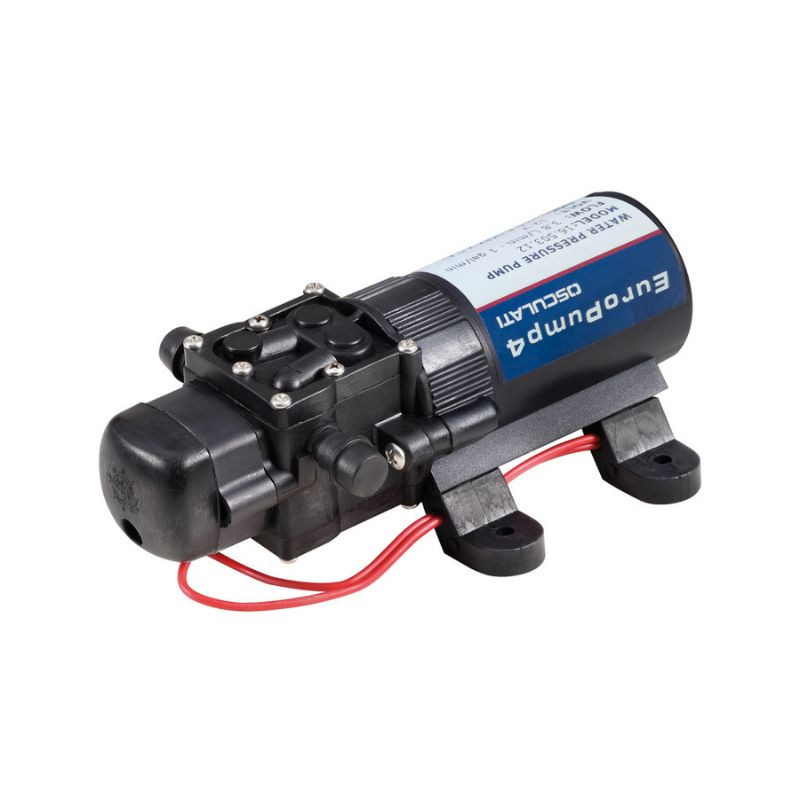

The most compact pump in the Europump range

Do you dream of having running water in your van or converted vehicle? Are you tired of energy-hungry or somewhat weak water distribution systems?

The EUROPUMP 4 water pump from Osculati offers an effective solution to these problems. Designed for confined spaces, it ensures smooth water distribution, ideal for supplying a sink or shower head.

Its automatic operation is based on an integrated pressure switch: this pressure sensor activates the pump when a tap is opened and automatically stops it when closed. This ensures constant pressure without manual intervention, whilst optimising energy consumption.

Product advantages

• Low energy consumption: with only 2 A, it preserves your battery life
• Dry running without damage: no risk if tank is empty
• Integrated thermal protection: prevents overloads and extends pump life
• Versatile installation: can be mounted horizontally or vertically (nose down)
• Pressure switch calibrated for 2.8 bar pressure: ensures autonomous management of starting/stopping

With a flow rate of 3.8 L/min and a pressure of 2.8 bar, it's perfect for small water systems in converted vehicles.

Installing the Europump 4

1. Preparation: ensure the system is switched off and the water tank is clean
2. Mounting: fix the pump on a flat surface, in horizontal or vertical position (nose down only)
3. Connection: connect the inlet and outlet hoses to the 10 mm barbed fittings
4. Electrical connection: connect the pump to a 12V DC power supply, inserting a 5A fuse for protection
5. Testing: fill the tank, switch on the system and open a tap to automatically activate the pump via the pressure switch

Technical specifications

• Voltage: 12V DC
• Consumption: 2 A
• Flow rate: 3.8 L/min
• Pressure: 2.8 bar (40 PSI)
• Dimensions: 170 x 100 x 60 mm
• Weight: 0.7 kg
• Fittings: barbed for 10 mm hoses
• Operation: automatic via integrated pressure switch
• Protection: thermal and against polarity reversal
• Pressure switch spare part: 16.540.01

Complementary products

For a quality water system from inlet to outlet, we recommend pairing this pump with a clean water tank from Osculati.

Tired of running out of drinking water? Equip your installation with a probe with water level gauge!
