Consider the finish for your LB101 lower cabinet!

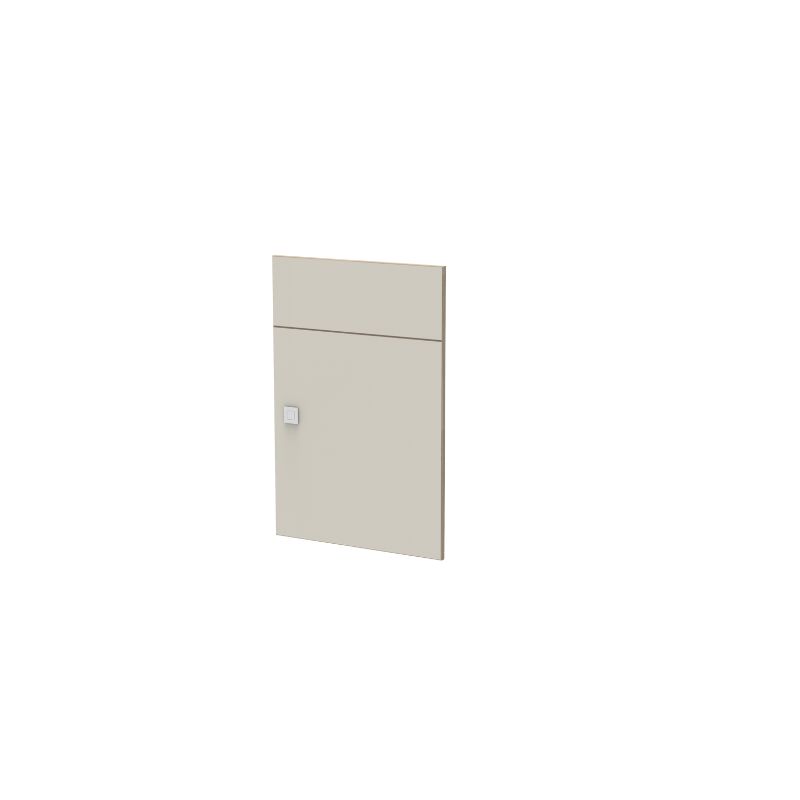

This door front (P4) 3/4 must be assembled with the door front (P5) 1/4 to fully form the left sliding door required to close the LB101 lower cabinet.

It is important to note that for it to work, you will need to opt for at least the following configuration: lower cabinet for left sliding door LB101 + central lower cabinet LB103.

Made from 15 mm HPL laminated birch plywood like all the finishing elements of the LONGBOARD range. Very practical and space-saving, as it slides easily and no one will be able to bang their knees on it. For the simple reason that when you open it, it positions itself in front of the central fixed door (P6) of the central lower cabinet LB103.

The HPL laminate coating of this left sliding door front 3/4 resists scratches, stains and impacts. If you spill your coffee, your tin of mackerel fillets, your tomato sauce or much more, don't worry, with a clean cloth your unit will be cleaned!

Combining strength and lightness for a successful converted van layout

To design the upper and lower surfaces of the LONGBOARD range, the Heode team selected birch plywood, coated with HPL laminate. Already popular in our Fontana and Oceanside conversion kits, this wood species stands out for its reliability and robustness. Enhanced with an HPL coating, it offers a refined finish and durability suitable for intensive and prolonged use.

Naturally lightweight, birch is the ideal choice for fitting out a van whilst optimising its payload. Thanks to smooth and harmonious surfaces, the LONGBOARD side unit adapts perfectly to all compact spaces, adding a touch of modernity and practicality to your converted van interior.

Compatibility and assembly of the left sliding door front 3/4

To take advantage of all the uses of the LB101 lower cabinet for left sliding door, 2 configurations are available:

• lower cabinet for left sliding door LB101 + sliding door front 1/4 (P5) + left sliding door front 3/4 (P4) + central lower cabinet LB103 + central fixed door front (P6)
• lower cabinet for left sliding door LB101 + sliding door front 1/4 (P5) + left sliding door front 3/4 (P4) + central lower cabinet LB103 + central fixed door front (P6) + lower cabinet for right sliding door LB102 + sliding door front 1/4 (P5) + right sliding door front 3/4 (P12)

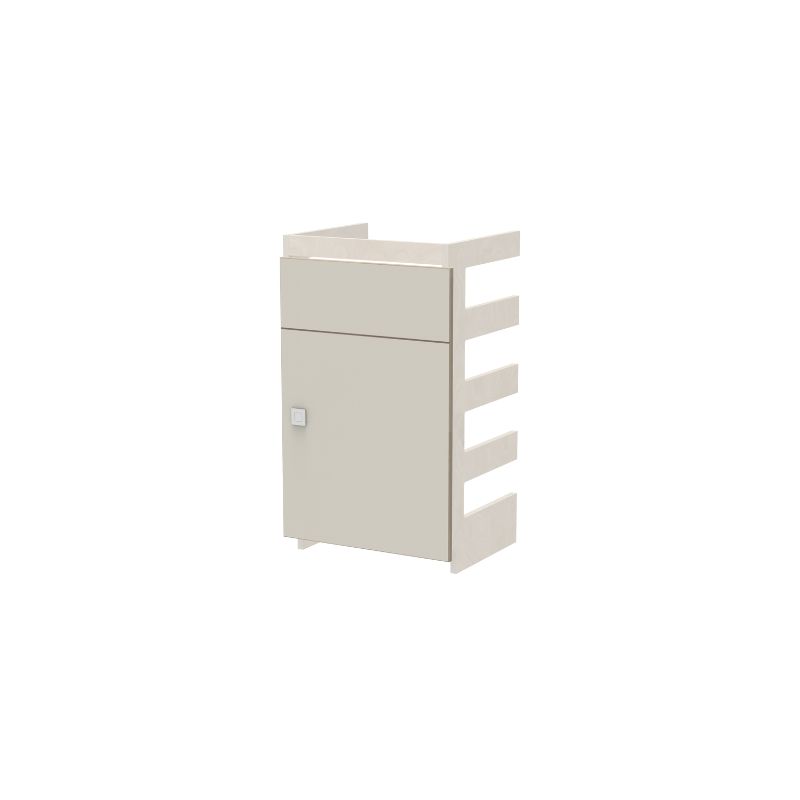

Inserting the sliding door front 1/4 (P5) into the left sliding door front 3/4 (P4) is necessary to obtain a sliding door ensuring complete closure of the LB101 cabinet.

In other words, it is the following configuration:

• sliding door front 1/4 (P5) + left sliding door front 3/4 (P4)

As you will have understood, the door front (P4) cannot be installed alone and must necessarily be combined with the door front (P5).

Consider fitting shelves (ET1) within the LB101 lower unit to create multiple storage spaces. They are modular, everywhere!

Technical specifications of the left sliding door front 3/4

• Dimensions (WxHxD): 433.5x487x15 mm.
• Material: HPL laminated birch plywood.
• Thickness: 15 mm.
• Compatible with the lower cabinet: LB101.
• Compatible with the door front: (P5) 1/4.
• Please note, the left sliding door front 3/4 (P4) must always be assembled with the sliding door front 1/4 (P5). Without the front (P5), the front (P4) cannot be installed.
• Compatible with shelves: (ET1).
• Screws provided.
• Assembly instructions provided.
