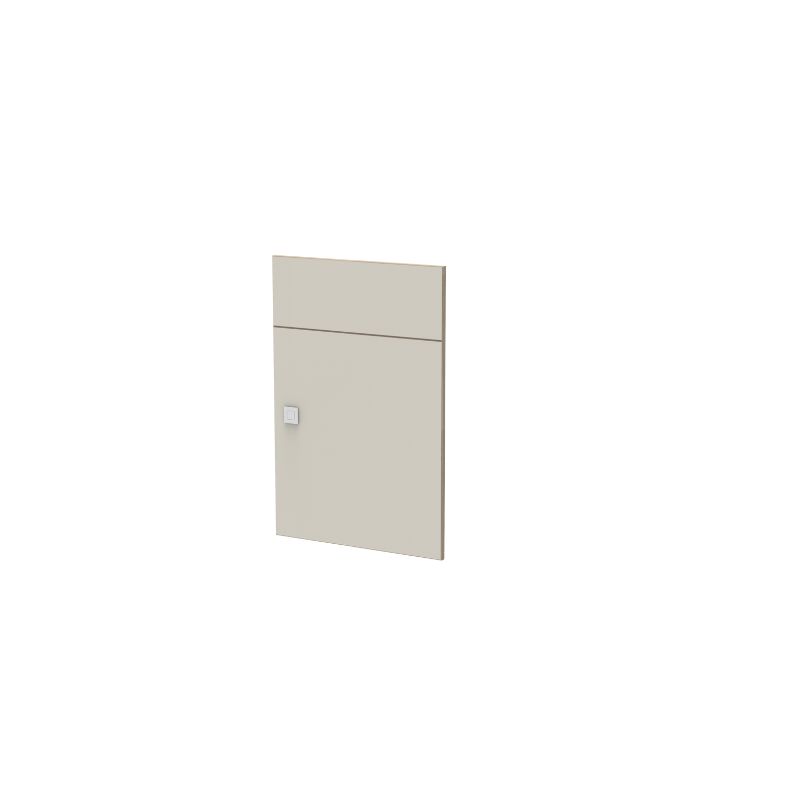

The 1/4 sliding door front essential for P4 and P12 LONGBOARD fronts

This 1/4 door front (P5) is very specific but extremely important as it necessarily fits into both the 3/4 left sliding door front (P4) and the 3/4 right sliding door front (P12) to enable their operation.

In brief, here are the possible configurations for obtaining the complete sliding door:

• 1st configuration: 1/4 sliding door front (P5) + 3/4 left sliding door front (P4)
• 2nd configuration: 1/4 sliding door front (P5) + 3/4 right sliding door front (P12)

Made of birch plywood with HPL laminate coating, 15 mm thick to match other LONGBOARD elements. This coating resists stains, scratches and light impacts to simplify your life on the road.

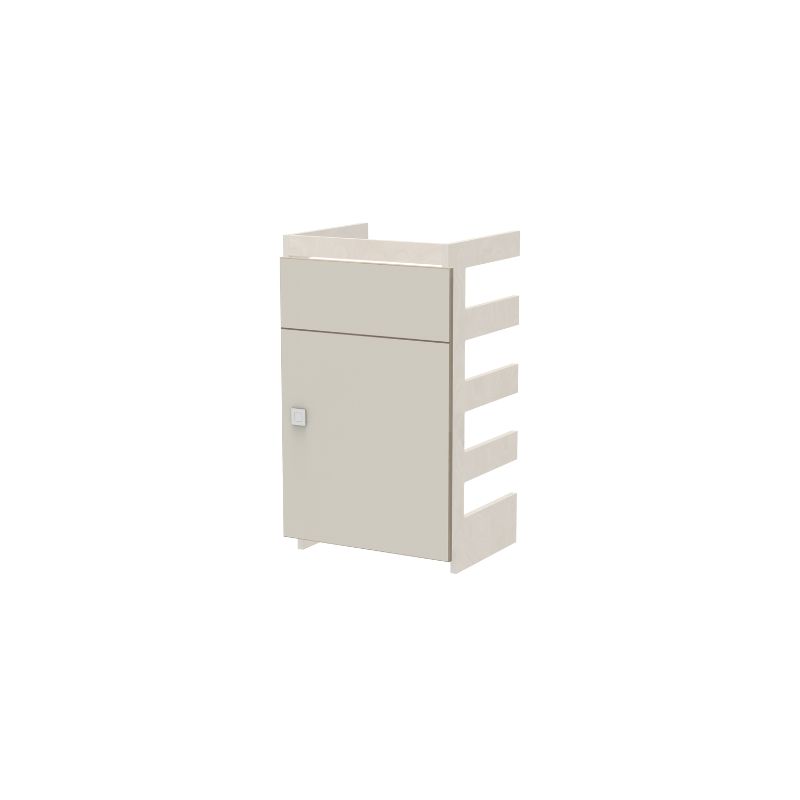

The 1st configuration (seen previously) is only compatible with the base unit for left-sliding door LB101. To use the sliding door, simply place the central base unit LB103 to the right of the LB101 module. Without these 2 base units, it is not possible to assemble the door in question.

The 2nd configuration (seen previously) is only valid with the base unit for right-sliding door LB102. To use the sliding door, simply place the central base unit LB103 to the left of the LB102 module.

Without this door front (P5), the LB101 and LB102 base units cannot have a sliding door.

Compatibility of the 1/4 sliding door front

The door front (P5) is essential in the following configurations:

• base unit for left-sliding door LB101 + 1/4 sliding door front (P5) + 3/4 left sliding door front (P4) + central base unit LB103 + central fixed door front (P6)
• central base unit LB103 + central fixed door front (P6) + base unit for right-sliding door LB102 + 1/4 sliding door front (P5) + 3/4 right sliding door front (P12)
• base unit for left-sliding door LB101 + 1/4 sliding door front (P5) + 3/4 left sliding door front (P4) + central base unit LB103 + central fixed door front (P6) + base unit for right-sliding door LB102 + 1/4 sliding door front (P5) + 3/4 right sliding door front (P12)

The door front (P5) cannot be installed alone, it must necessarily be combined with the door front (P4) or (P12).

Technical characteristics of the 1/4 sliding door front

• Dimensions (WxHxD): 433.5x160x15 mm.
• Material: HPL laminate birch plywood.
• Thickness: 15 mm.
• Compatible with base units: LB101; LB102; LB103.
• Compatible with door fronts: (P4) 3/4; (P12) 3/4.
• Please note, the 1/4 sliding door front (P5) must always be assembled with the 3/4 sliding door front (P4) or 3/4 (P12).
• Compatible with shelves: (ET1).
• Screws provided.
• Assembly instructions provided.
