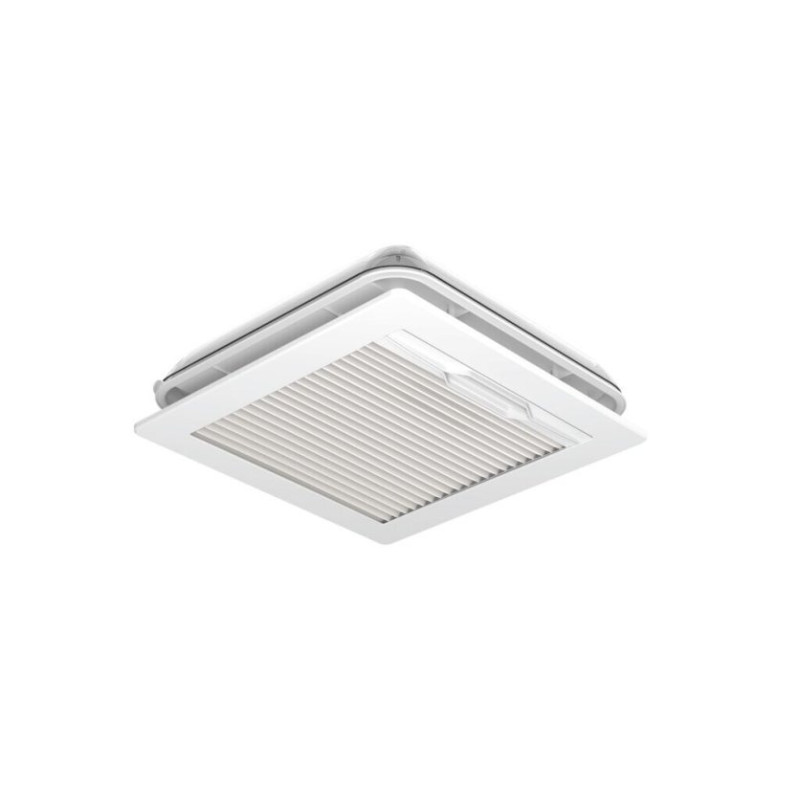

40x40 rooflight with blind and flyscreen: bright days and dark nights, without mosquitoes

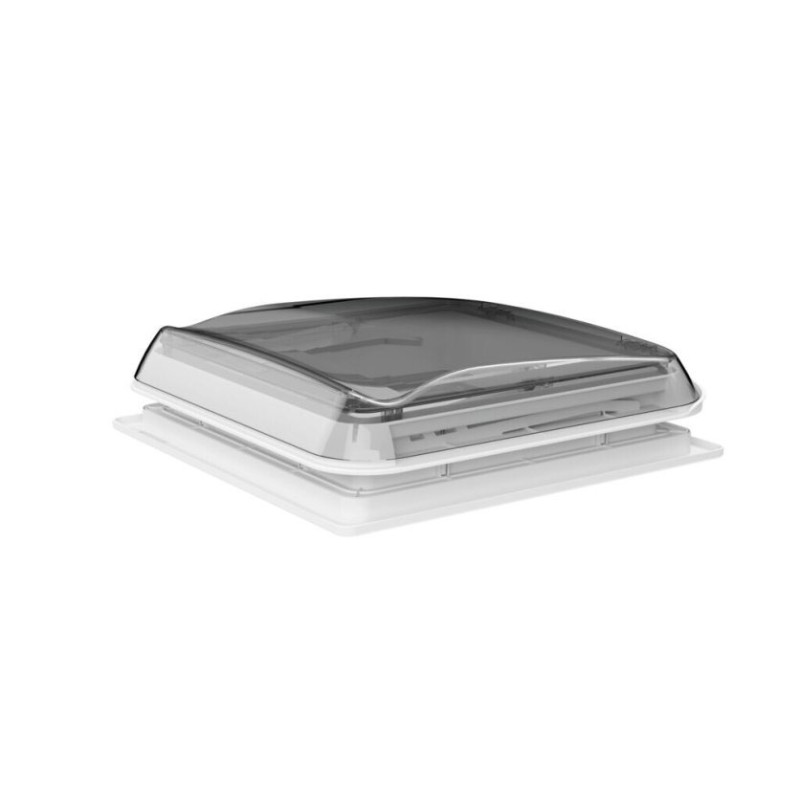

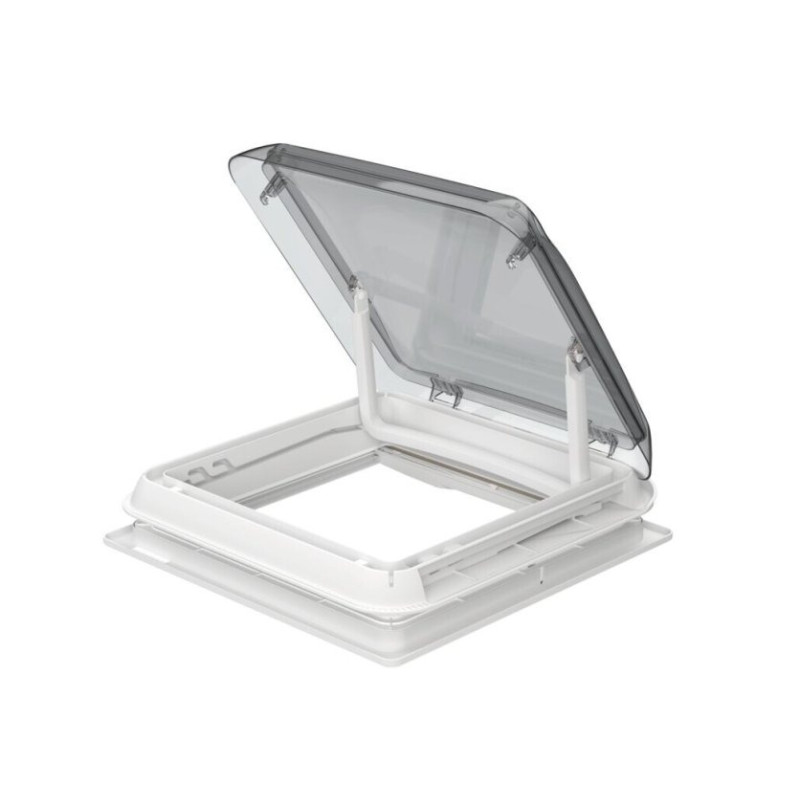

In a converted van, the roof is often the best place to let in light and fresh air. But you also need to keep out insects on summer evenings and the early morning sun. The Fiamma Vent 40F Crystal rooflight handles all three with one unit: its Crystal dome lets natural light into the van, its flyscreen keeps insects out while you ventilate, and its blind lets you block out the light when you choose.

Its real advantage is the choice of roof thickness. Between the sheet metal, insulation, battens and lining, a converted van roof can easily exceed 45 mm. This rooflight therefore comes in two versions, so it fits your conversion rather than the other way round:

• 25–45 mm version: for roofs with thin insulation and lightweight lining, or to replace a rooflight fitted to a thin roof. On bare sheet metal, add a wooden support frame to reach the minimum thickness.
• 46–60 mm version: for conversions with extra insulation, designed for travel in every season. The rooflight fits a thicker roof without the need to improvise a spacer.

Above the bed, in the kitchenette to release cooking steam and moisture, or in the living area of a panel van without side windows, this rooflight fits a standard 400 x 400 mm cut-out. Ventilating regularly through the roof also helps reduce condensation. The rooflight is made by Fiamma and comes with a 2-year warranty. For active ventilation, you can pair it with the Fiamma Turbo-Kit 12V fan. If you prefer a sandwich-style installation with two lifting arms, compare it with the Fiamma Vent F Pro Crystal rooflight or browse our range of rooflights for converted vans.

How do you install the Vent 40F Crystal rooflight with blind and flyscreen?

• Choose the right version: measure the total roof thickness at the planned installation point, including the sheet metal, insulation and lining.
• Cut the opening: mark out a 400 x 400 mm opening between two roof crossmembers, then cut it with a jigsaw or nibbler.
• Protect the sheet metal: deburr the cut edge and treat it with Frameto rust treatment.
• Ensure a watertight seal: degrease the installation area and apply a continuous seal beneath the outer frame. The rooflight fitting kit includes butyl tape and stainless steel screws; check the Fiamma instructions for the recommended screw length for your chosen version.
• Secure it: position the rooflight, then tighten the screws on the inner frame gradually in a criss-cross pattern. Do not overtighten them, as this could distort the frame.
• Finish: a bead of Sikaflex 521 UV around the outer frame adds a second barrier against leaks.

Technical specifications of the Vent 40F Crystal rooflight with blind and flyscreen

• Brand: Fiamma
• Equipment type: 40 x 40 cm rooflight
• Built-in features: blind and flyscreen
• Cut-out dimensions: 400 x 400 mm
• Dome finish: Crystal, lets in natural light
• Compatible roof thicknesses: 25 to 45 mm or 46 to 60 mm, depending on the version
• Suitable for: converted vans and commercial vehicles
• Warranty: 2 years
